Summary of Contents for Harvest TEC AVR2

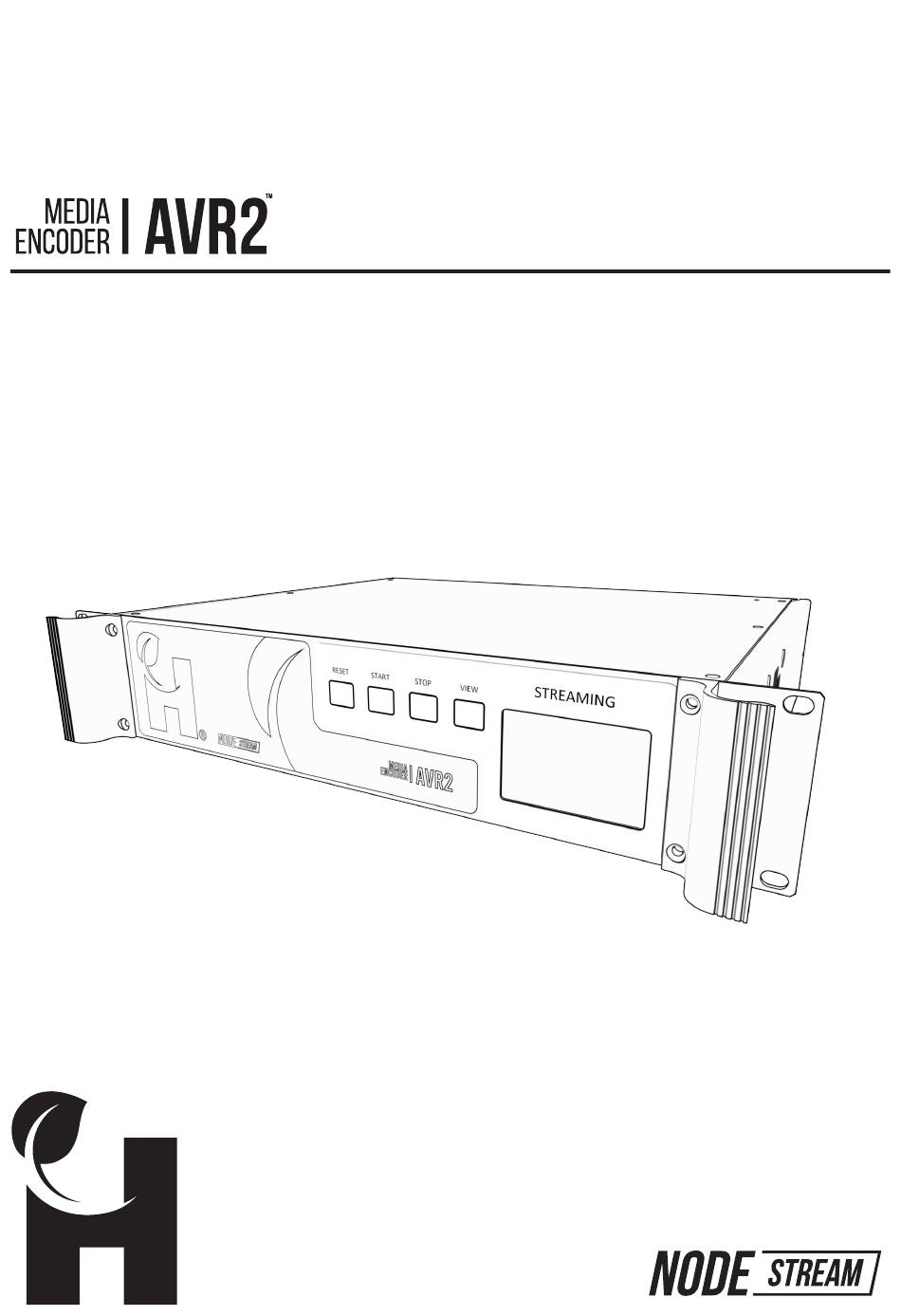

- Page 1 Quick Start Guide ™ ®...
- Page 2 QR code on the back page. Multi-cast streaming solution Devices AV2 Unit Video Source Cloud (via AVRLive) In the Box AVR2™ D9 null modem D9 gender changer 1 x power cable 1 x HDMI cable 1 x Ethernet cable (region specific)
-
Page 3: Rear Connections
Overview ® Rear Connections Power Switch Power Socket IMPORTANT: 100-240VAC 47/63HZ only (UPS Recommended) For further information on connections, refer to AVR2™ User Manual. Front Interface RESET the AVR2™ unit START streaming video and/or data STOP streaming video and/or data... -
Page 4: Installation
Installation ® The AVR2™ is designed to be mounted in a standard 19” rack and occupies 2U of space Ensure there is adequate spacing around the AVR2™ unit for cooling. The cool air travels in the direction as shown by the arrows. - Page 5 Start Up ® Switch on the power (on the rear of the AVR2™ unit) The device is configured to auto start when AC power is applied. The LEDs on the interface panel turn on and the display turns on AVR2...
-
Page 6: Troubleshooting
Ensure required firewall ports are unblocked (see User Manual) Check network settings, contact your network administrator to diagnose network issues AVR Live Web Access AVR2™ Dashboard access: http://avrlive.com/ Harvest Technology Group Limited Technology Park, 7 Turner Ave, Bentley WA 6102 Australia www.harvest.technology...
