Summary of Contents for RadonTec 58-202

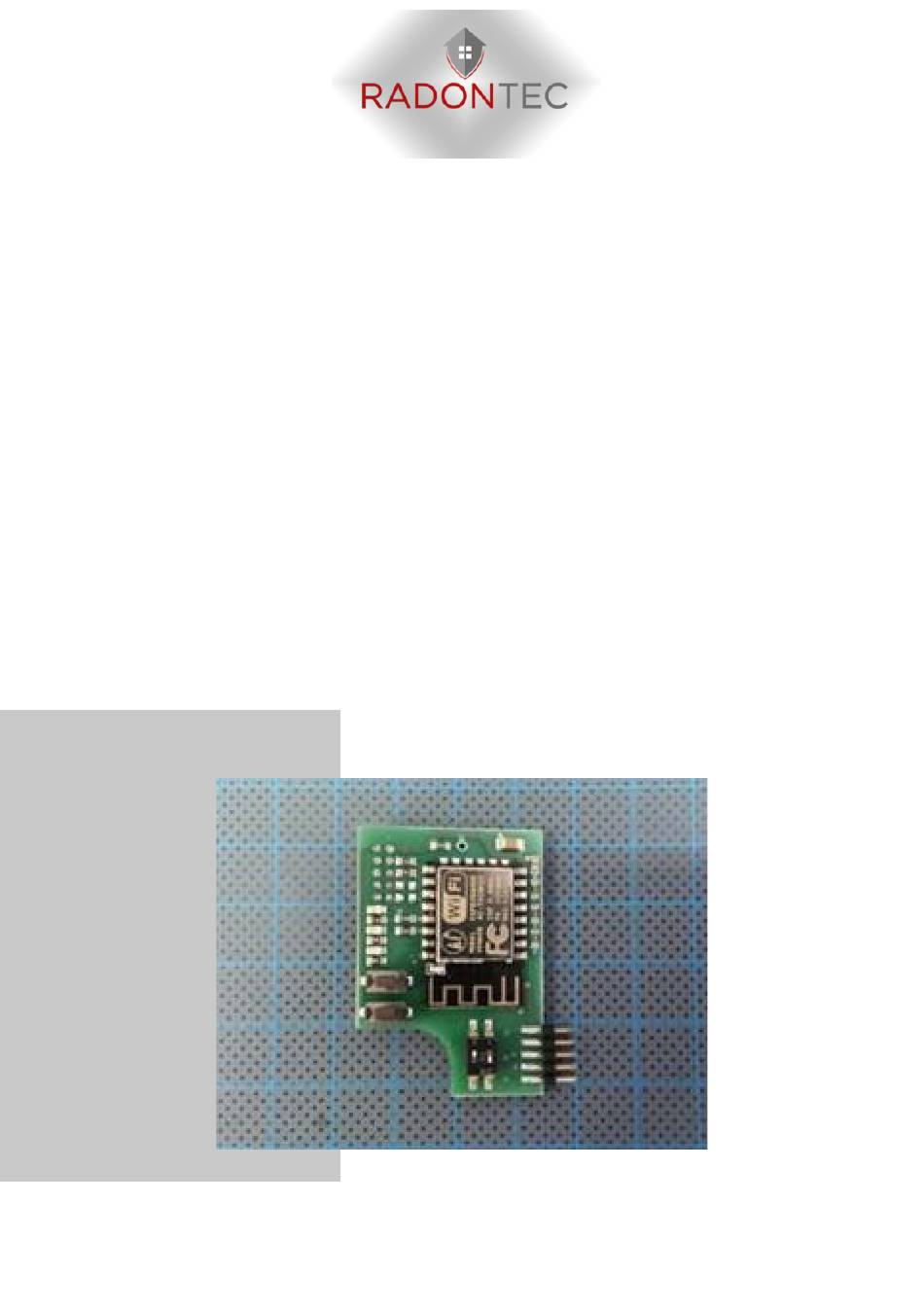

- Page 1 Wifi module Manual January 2021...
- Page 2 RadonTec GmbH Hauptstraße 5 89426 Wittislingen – Germany Tel: (+49) 9076 - 919 98 35 E-Mail: info@radontec.de Website: radontec.de Shop: radonshop.com Version: 01.1 – 25.01.2020...
-
Page 3: Table Of Contents
Scope of Content Introduction ..............4 Technical Data ..............4 Privacy ................5 Static charge ..............6 Installation ................ 7 Video-Tutorial ............7 Compatible board ............. 8 Connection with W-LAN repeater ......8 Firmware update .............. 9 Version info .............. 9 Manuals Update ............. -
Page 4: Introduction
Introduction The Wifi module is the perfect complement to your AlphaAir Freshbox 25. Technical Data Frequency 2.4 GHz Standard IEEE 802.11b/g/n Power consumption Power On 1.2 Watt Continuous operation from 10 sec. after Power On: 0.8 - 0.9 Watt Safety WPA/WPA2 Manual –... -
Page 5: Privacy
Privacy This data protection declaration describes which data, if any, is transferred from the module to the Bayernluft server via the Internet and for what purpose this is used: The module is paired with your router/access point via WPS, for example, whereby the module is assigned a local IP address in the format 192.168.0.100, for example. -
Page 6: Static Charge
for a software update can be deactivated via the following command: your-module-IP/?autoupdate=0 If you use the server based WLAN configuration page (gear icon), the current module settings are transmitted to a script of the Bayernluft server for generating a comfortable settings page. -
Page 7: Installation
Installation Read these instructions completely before commissioning and pass them on to any subsequent users of the module. Keep these instructions in a place where they are accessible to all users. Video-Tutorial The installation and commissioning is explained in a video tutorial. -
Page 8: Compatible Board
Compatible board The WLAN modules only work with boards from revision 1.2 (recognizable by the blue voltage terminal and two buttons below the USB interface, as shown in the video on the product page). In the meantime it turned out that some batches of this revision were equipped with weaker voltage regulators. -
Page 9: Firmware Update
Firmware update Version info You can read the current version of your firmware at the bottom right of the HTML mode live screen: The first number gives information about the signal strength to the access point (-60 dBm are better than -80dBm) It follows the firmware version of the device motherboard (Attention, this must be min. -
Page 10: Manuals Update
Manuals Update New modules are provided with an automatic update function at the factory. If your version does not yet support this (firmware < 20170701), then you can start the update manually by appending the following command. The module must be in HTML mode for this. Please replace the IP address in the following example with your own module address: 192.168.0.100/?updatecheck=1 The update may not yet be confirmed by a message page. -
Page 11: Tips And Troubleshooting
7 Tips and troubleshooting Login without WPS If your access point or router does not have a WPS function, you may be able to temporarily enter its network identifier and password into a friend's router that supports WPS and thus connect to the WLAN module. -
Page 12: Maintenance And Care
Warranty The two-year warranty applies to the Wifi module purchased from RadonTec GmbH or authorized dealers. This covers defects in material or workmanship under normal use for a period of one year after receipt of the product. -
Page 13: Support And Contact
10.2 Contact Us Should you have any further questions or require further help and technical support, please do not hesitate to contact us. RadonTec GmbH Hauptstraße 5 89426 Wittislingen - Germany Tel: (+49) 9076 - 919 98 35 E-Mail: info@radontec.de Website: radontec.de...
