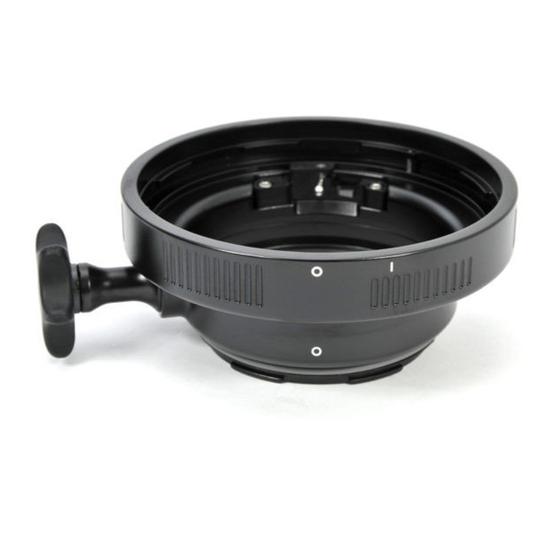

Please follow the instructions below to mount the Extension Ring on a port.
1. Confirm that the extension ring is unlocked,
with the locking device pointing upwards as
shown.
2. Align the "I" mark on the extension ring with
the WHITE dot on the port. Then gently push
the extension ring towards the port until it
cannot go in any further
3. Turn the extension ring clockwise until the
white dot on the extension ring aligns with
the white dot on the port.
1
Advertisement
Table of Contents
Summary of Contents for Nauticam 36052

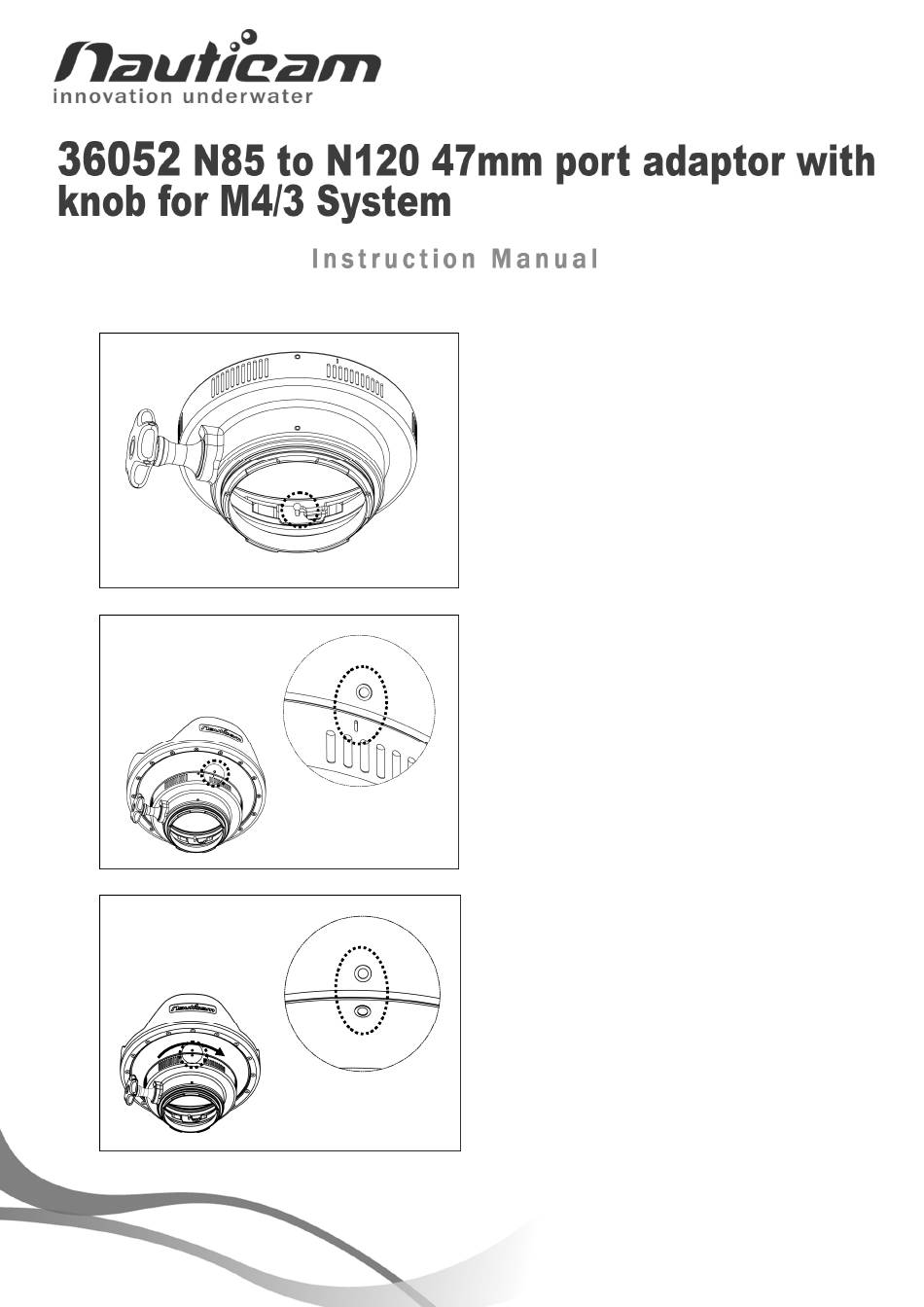

- Page 1 Please follow the instructions below to mount the Extension Ring on a port. 1. Confirm that the extension ring is unlocked, with the locking device pointing upwards as shown. 2. Align the "I" mark on the extension ring with the WHITE dot on the port. Then gently push the extension ring towards the port until it cannot go in any further 3.
- Page 2 4. Push the locking device inwards. 5. Turn the locking device sideways into the recess. Ensure that the locking device is secured inside the recess and the extension ring is securely locked with the port. 6. To unlock, insert a small screwdriver into the recess to lift the locking device, then reverse the above procedures.
