Code:
SHE-300
Product:
2.4m Freestanding Team Bench
Tools Required
2x 13mm Spanner
1x 5mm Allen Key
(Supplied in FPK301)
IMPORTANT PLEASE READ THE
A S S E M B LY I N S T R U C T I O N S
CAREFULLY BEFORE STARTING
TOASSEMBLE YOUR SEATS
Pack Contents
SHE-300 - 2.4m Freestanding Team Bench
1.
3 x Team Bench Seat Support
2.
1 x Team Bench Seat Frame
3.
2 x 2.4m Team Bench Seat Slats
4.
1 x Team Bench Fittings Pack
5.
6 x M8x60 Skt Button Head Screw
6.
6x M8 Nylock Nut BZP
Team Bench Fittings Pack
6.
6 x M8 Nylock Nut BZP
7.
6 x M8x25mm Set Screw S/S
8.
12 x M8 Skiffy Washer
9.
1 x 5mm Allen Key
10. 12 x M8 Nut Cap

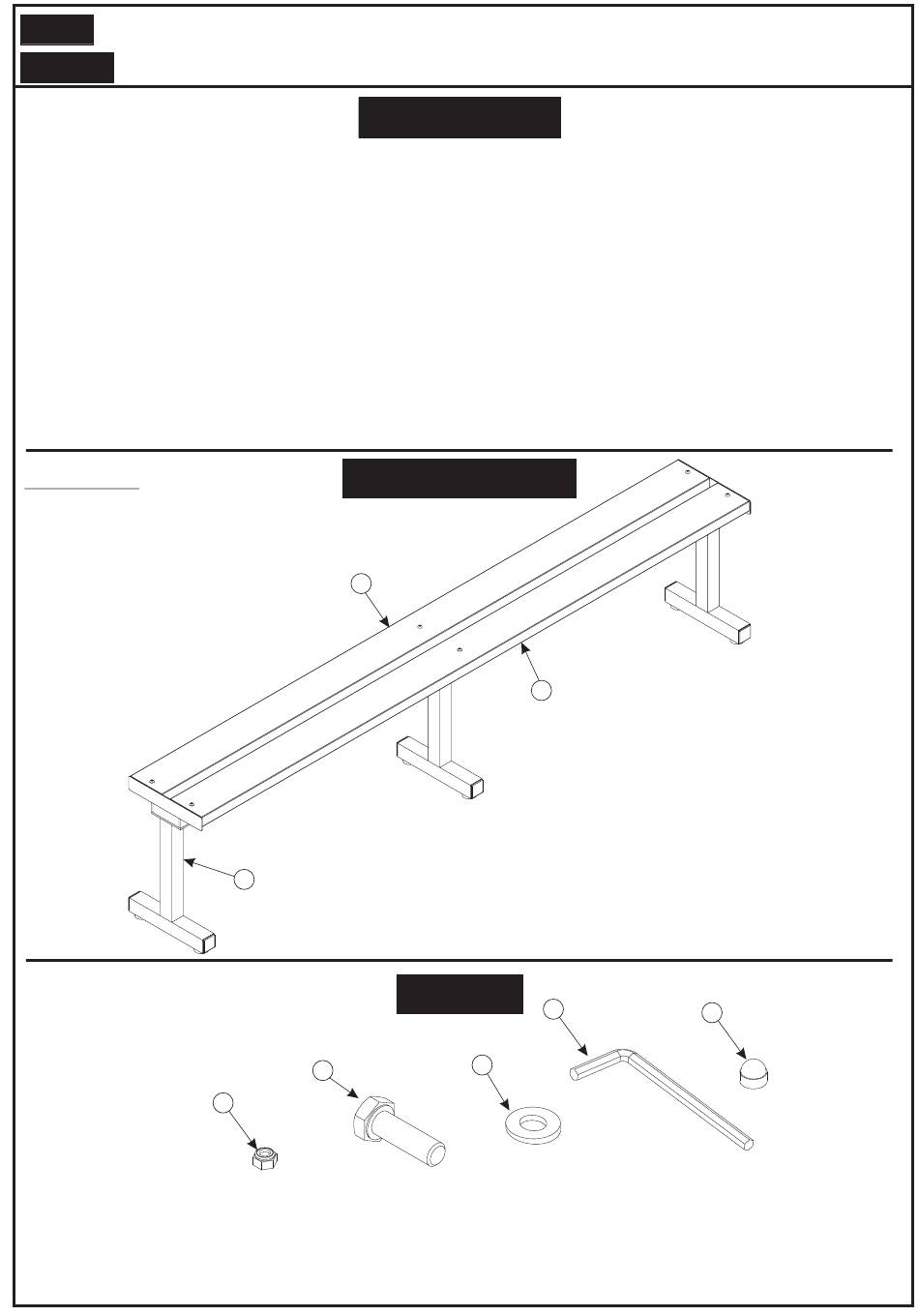

View of Product
3
1
7
6
(contains)
2
Fittings
9
8
Page 1
©
(PEQ367)
(PEQ378)
(PLP630)
(FPK301)
(BOL497)
(BOL402)
(FPK301)
(BOL402)
(BOL540)
(BOL722)
(BOL794)
(CAP951)
10
INS041
Revision 1
17/07/18
Harrod UK Limited
Advertisement
Summary of Contents for Harrod Sport SHE-300
- Page 1 17/07/18 Product: 2.4m Freestanding Team Bench © Harrod UK Limited Pack Contents SHE-300 - 2.4m Freestanding Team Bench 3 x Team Bench Seat Support (PEQ367) 1 x Team Bench Seat Frame (PEQ378) 2 x 2.4m Team Bench Seat Slats (PLP630)
- Page 2 Code: SHE-300 Product: 2.4m Freestanding Team Bench Assembly Instructions Lay the Frame (2) upside down in order to attach the Seat Supports (1) as shown in Fig 1a. Secure with Two M8x25mm Set Screws S/S (7), Two M8 Skiffy Washers(8) and Two M8 Nyloc Nuts (6). Cover with the M8 Nut Cap (10) Fig.
