Summary of Contents for Steltronic PinCam

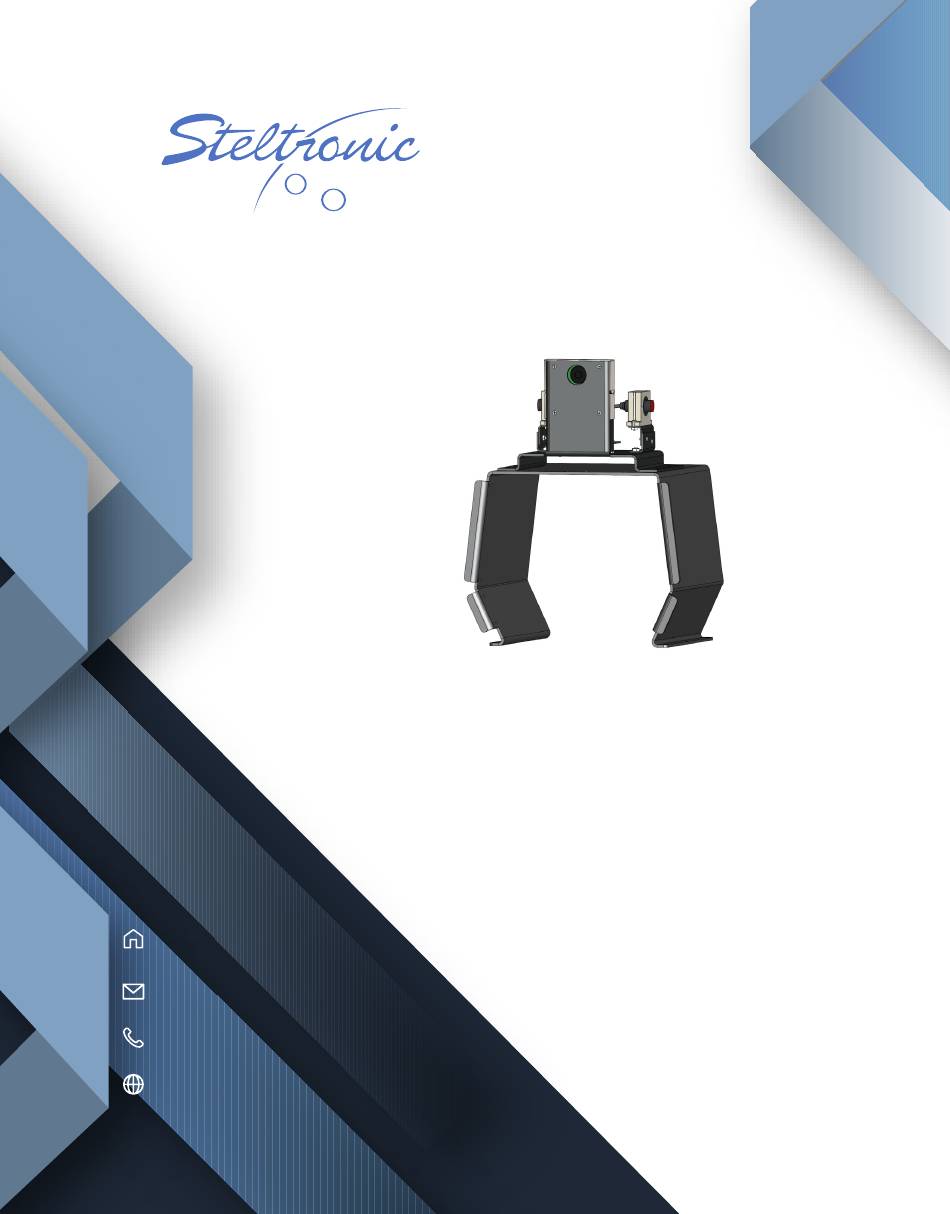

- Page 1 A U T O M AT I C S C O R I N G SURFACE BALL RETURNS Installation manual for PinCams installed on a tunnel with surface ball returns 4600 Arrow Hwy. Montclair, California 91763 USA Service@SteltronicUSA.com (909) 971-9656 SteltronicUSA.com...
- Page 2 Contents O V E R V I E W ............................ 1 I N S TA L L AT I O N P R O C E D U R E S ....................... 2 S E N S O R S R E LO C AT I O N C A B L E I N S TA L L AT I O N ................3 B R U N S W I C K A O R A - 2 ........................
- Page 3 In the sample image to the left, an illustration of an 8 lane bowling center with the PinCam is installed on the ball return capping. When the bowling center has pinsetters...
- Page 4 Since the sensors are normally mounted on the PinCam baseplate, this presents a problem when the PinCam is mounted on top of the tunnel, now it’s impossible for the bowling ball to break the beam of the infrared sensor.
- Page 5 GREEN and BLUE wires be connected to the ODD lane sensor, and then back at the PinCam, connect the cable with the RED GREEN and BLUE connector to the odd lane PCB trigger sensor connections. © Steltronic – Sensors relocation cable installation Page 3...
- Page 6 When the rake is UP, install the u-bolt clamp on the rake shaft, so that you have an open continuity on the two wires of the mercury switch. When the rake is down, there should be a contact closure between the two mercury switch wires. © Steltronic – Brunswick a or a-2 Page 4...
- Page 7 Even Lane Mercury Switch: When connecting the mercury switch to the camera cable, the EVEN lane mercury switch should be connected to the red and black wires on the camera cable with quick disconnects. © Steltronic – Camera cable installation Page 5...
- Page 8 Even Lane Mercury Switch: When connecting the mercury switch to the camera cable, the EVEN lane mercury switch should be connected to the red and black wires on the camera cable with quick disconnects. © Steltronic – Mercury switch cables installation Page 6...
