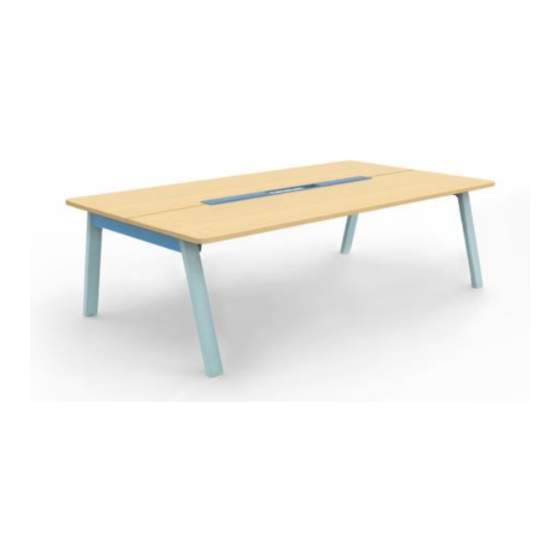

- Page 1 HAWORTH ASIA PACIFIC PRODUCT INSTALLATION GUIDE Intuity Parkbench Installation guide ECO No:UN1-013 J Page: 1 OF 22 Part number: Parkbench Rev: A...
- Page 2 HAWORTH ASIA PACIFIC PRODUCT INSTALLATION GUIDE Contents Page • 1. Introduction……………..……………………………………………….3 • 2. High table……………………………………..…………………………4 • 3. Seating table………………………….…………………….………….17 • 4. Sitbench ………………………….…………………………...……….20 ECO No:UN1-013 J Page: 2 OF 22 Part number: Parkbench Rev: A...
-
Page 3: Introduction
HAWORTH ASIA PACIFIC PRODUCT INSTALLATION GUIDE 1.Introduction The following installation guide assumes some knowledge of the installation of Parkbench, this guide will be updated as new elements are released. ECO No:UN1-013 J Page: 3 OF 22 Part number: Parkbench Rev: A... -
Page 4: High Table
HAWORTH ASIA PACIFIC PRODUCT INSTALLATION GUIDE 2. High Table High Table is composed of LH/RH leg, corner bracket, side frame and end frame. High Table installation instruction is as following. 2.1, Install the corner bracket, connector of cross brace and glide with leg together. - Page 5 HAWORTH ASIA PACIFIC PRODUCT INSTALLATION GUIDE Connector of cross brace Screw Spec: M6x20 Screw QTY : 2 pc 2.2, install the end frame, leg, and cross brace together. Pre-put these components like below shows. ECO No:UN1-013 J Page: 5 OF 22...
- Page 6 HAWORTH ASIA PACIFIC PRODUCT INSTALLATION GUIDE Install leg with end frame Screw Spec: M6x25 Screw QTY : 4pcs/corner bracket (2pcs on one side, and 2pcs on the other side) Install leg with cross brace Screw Spec: M6x25 Screw QTY : 2pcs/ side...
- Page 7 HAWORTH ASIA PACIFIC PRODUCT INSTALLATION GUIDE 2.3, install leg with side frame. Put the legs and side frames as below shows. The bottom of leg towards up. Install side frame Screw Spec: M6x25 Screw QTY : 2pcs/corner bracket ECO No:UN1-013 J...
- Page 8 HAWORTH ASIA PACIFIC PRODUCT INSTALLATION GUIDE 2.4, Install foot rest. If client hasn’t ordered, please ignore this step. There are two options for positions of foot rail. Option 1 is outer side, and the other installation position Option 2 is inner side.
- Page 9 HAWORTH ASIA PACIFIC PRODUCT INSTALLATION GUIDE 2.5, Install foot rest cover. If client hasn’t ordered, please ignore this step. The position is decided by foot rest. Install foot rest cover Screw Spec: M6x10 Screw QTY : 5pcs/cover ECO No:UN1-013 J...
- Page 10 HAWORTH ASIA PACIFIC PRODUCT INSTALLATION GUIDE 2.6, Turn over whole product to below pic shows. And fix the screws and install the timber hook. Fix the side frame Screw Spec: M6x25 Screw QTY : 2pcs/corner bracket Install timber hook Screw Spec: ST 4.8X25...
- Page 11 HAWORTH ASIA PACIFIC PRODUCT INSTALLATION GUIDE 2.7, Install the end cap with central tray together. Install the end cap Screw Spec: M4x10 Screw QTY : 3pcs/side ECO No:UN1-013 J Page: 11 OF 22 Part number: Parkbench Rev: A...
- Page 12 HAWORTH ASIA PACIFIC PRODUCT INSTALLATION GUIDE 2.8, Put worktop and central tray on the structure. Fix the worktop and central tray. The gap between two worktops is 5mm. Install worktop Screw Spec: ST4.8X25 Screw QTY : 16pcs ECO No:UN1-013 J...
- Page 13 HAWORTH ASIA PACIFIC PRODUCT INSTALLATION GUIDE Install central tray Screw Spec: ST4.2X19 Screw QTY : 2pcs/brk (the distance between the brackets should be about 500mm) Lateral view for understanding ECO No:UN1-013 J Page: 13 OF 22 Part number: Parkbench Rev: A...
- Page 14 HAWORTH ASIA PACIFIC PRODUCT INSTALLATION GUIDE 2.9, Install the socket section a, Install the socket, the socket should be purchased separately. b, Install the end cap of section, Screw Spec: M4x10 Screw QTY : 4pcs/side c, Stick 3pcs EVA bumper to section.
- Page 15 HAWORTH ASIA PACIFIC PRODUCT INSTALLATION GUIDE 2.10, Install the socket section and bottom cover onto central tray. Install the section or bottom cover Screw Spec: M5X12 Screw QTY : 12pcs ECO No:UN1-013 J Page: 15 OF 22 Part number: Parkbench...
- Page 16 HAWORTH ASIA PACIFIC PRODUCT INSTALLATION GUIDE 2.11, Install the fabric umbilical cord. Install top bracket, umbilical cord and bottom bracket together. Then fix the top bracket with worktop. Screw Spec: ST4.8X25 Screw QTY : 2pcs Finish installing. ECO No:UN1-013 J...
-
Page 17: Seating Table
HAWORTH ASIA PACIFIC PRODUCT INSTALLATION GUIDE 3. Seating table High table is composed of LH/RH leg, cross beam, main beam and sub beam. Seating table installation instruction is as following. 3.1, Install the cross beam with LH/RH leg together. One table need 2 left legs and 2 right legs. - Page 18 HAWORTH ASIA PACIFIC PRODUCT INSTALLATION GUIDE 3.3, Install legs with main beams and sub beams together. Install beams Screw Spec: M6x25 Screw QTY : 32 pcs ECO No:UN1-013 J Page: 18 OF 22 Part number: Parkbench Rev: A...
- Page 19 HAWORTH ASIA PACIFIC PRODUCT INSTALLATION GUIDE 3.4, Install worktop, central tray, socket section and umbilical cord follow step 2.8 ~ 2.11 ECO No:UN1-013 J Page: 19 OF 22 Part number: Parkbench Rev: A...
-
Page 20: Sitbench
HAWORTH ASIA PACIFIC PRODUCT INSTALLATION GUIDE 4. Sitbench Sitbench is composed of LH/RH leg, end frame, side frame, top cushion and cushion bracket. Sitbench installation instruction is as following. 4.1, Install the end frame with LH/RH leg together. One Sitbench need 2 left legs and 2 right legs. - Page 21 HAWORTH ASIA PACIFIC PRODUCT INSTALLATION GUIDE 4.3, Install top Install top Screw Spec: ST 4.8X25 Screw QTY : 12 pcs 4.3, Install cushion (optional), put the cushion outside of top, and the cushion bracket on the other side of top. Install the bracket with cushion.
- Page 22 HAWORTH ASIA PACIFIC PRODUCT INSTALLATION GUIDE 4.4, Fix cushion bracket with top. Install top Screw Spec: ST 4.8X25 Screw QTY : 4 pcs Finish ECO No:UN1-013 J Page: 22 OF 22 Part number: Parkbench Rev: A...
