HTC-65GNV HIGH RESOLUTION
HTC-65CNV MED. RESOLUTION
SPECIFICATOINS
ITEM NO.
PICK UP DEVICE
ELEMENTS H*V
HORIZONTAL RESOLUTION
SYNCHRO FREQUENCY
CLOCK FREQUENCY
SCANNING SYSTEM
SENSITIVITY D/N
SYNCHRONIZATION
S/N RATIO
VIDEO OUTPUT
AUTO IRIS
MOUNT LENS
POWER SUPPLY
POWER CONSUMPTION
AES(ELECTRONIC SHUTTER)
D/N (day & night)
IR RAY (acceptable)
DIMENSIONS (mm)
WEIGHT (g)
STORAGE TEMPERATURE
OPERATON TEMPERATURE
*SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
CAUTIONS
1. In order to protect the camera, avoid placing or using it under direct sunlight, rain or dust.
2. Don't touch the CCD sensor directly with your fingers. If necessary, use soft cloth moistened with alcohol to wipe off the
dust.
3. When the camera is not in use, keep the lens, or cap being attached to protect the CCD sensor.
4. DC model: use a + 12V regulated power source.
AC model: directly connect to AC power source.
5. Don't drop your camera or give it a strong shock or vibration.
CONNECTION
1. Before connection, make sure that power of all units are OFF and cords are unplugged.
2. Mount a lens onto the camera.
3. Connect a video terminal of the camera and the video input terminal of a monitor TV
with a 75 Ω coaxial cable.
4. Connect the power terminal of the camera to a power supply.
Caution:
* Installation should conform to all local codes.
* Lens, coaxial cable for video signal and power supply are not supplied with the camera.

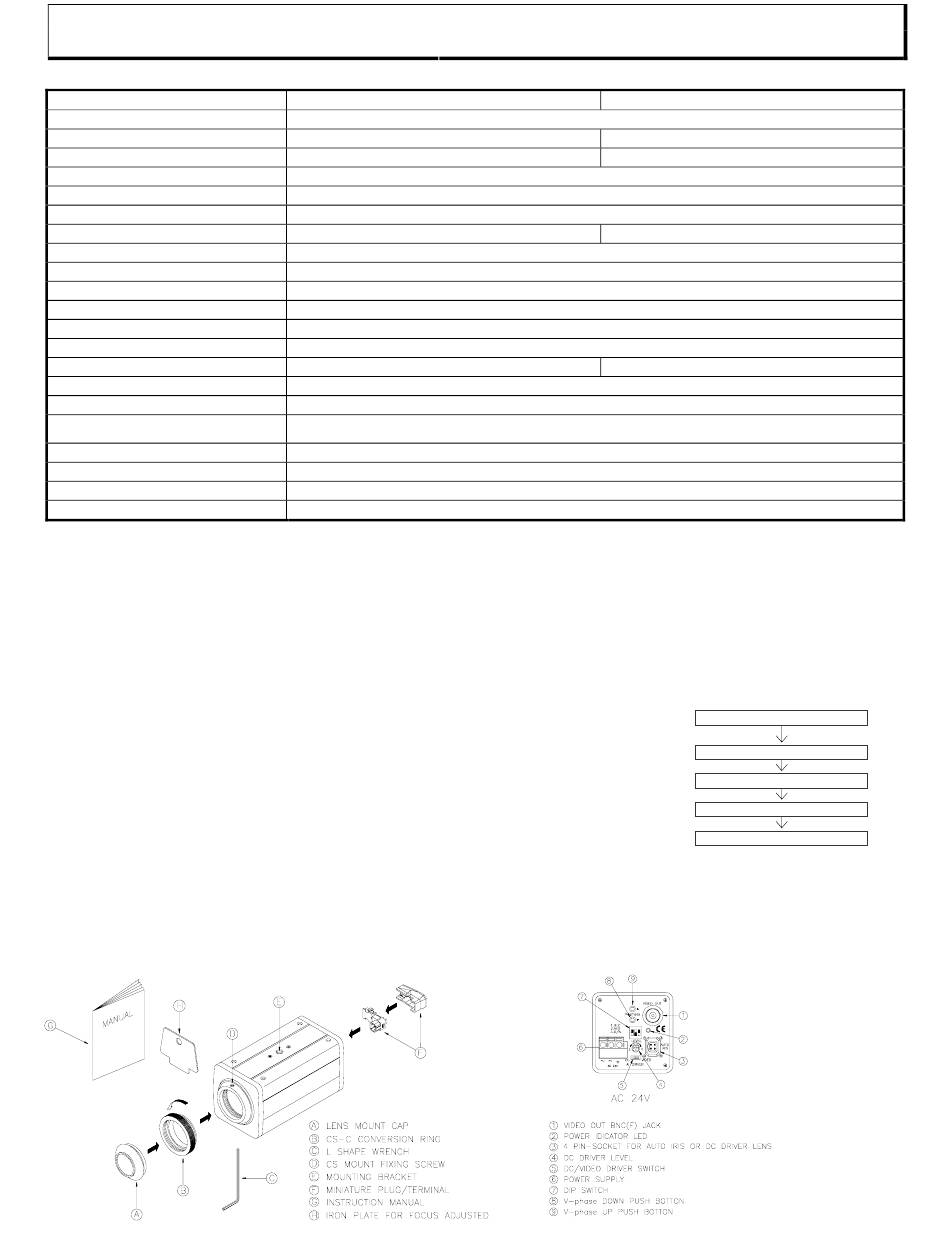

LOCATIONS、FUNCTION OF PARTS & ACCESSORIES

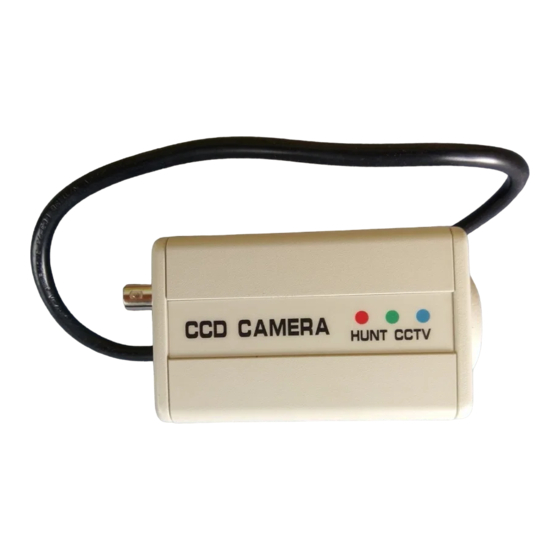

DAY&NIGHT CCD CAMERA
HTC-65C
CCD IMAGE SENSOR 1/3"
NTSC: 512*492—PAL: 512*582
More than 400 TV Lines
NTSC: 15.734 kHz – PAL: 15.625 kHz
NTSC: 59.94Hz – PAL: 50Hz
2 : 1 INTERLANCE
1/0.05 Lux F=1.2
MORE THAN 50 dB (AGC Auto)
1 Vpp, 75 Ohms Composite
Video Driver / DC Driver Switchable
CS Mount
24 VAC or 12VDC (± 10%)
3.5W for 24VAC
Up to 1/100,000 sec. (linear) ON/OFF Switchable
Normal image, Day & night ON/OFF Switchable
850～940nM INFREDRAD WAVE LENGTH
102 (D) * 59 (W) * 59 (H)
430
-30 to + 60 Degree C
-10 to + 45 Degree C
HTC-65G
NTSC: 771*492—PAL: 753*582
More than 540 TV Lines
2/ 0.08 Lux F=1.2
4W for 24VAC
STEP
Attach the Lens
Connect to a monitor TV
Connect a power source
Adjust the focus
Adjust the back focus
Advertisement
Table of Contents
Related Manuals for Hunt HTC-65C
Summary of Contents for Hunt HTC-65C
- Page 1 HTC-65GNV HIGH RESOLUTION DAY&NIGHT CCD CAMERA HTC-65CNV MED. RESOLUTION SPECIFICATOINS ITEM NO. HTC-65C HTC-65G PICK UP DEVICE CCD IMAGE SENSOR 1/3” ELEMENTS H*V NTSC: 512*492—PAL: 512*582 NTSC: 771*492—PAL: 753*582 HORIZONTAL RESOLUTION More than 400 TV Lines More than 540 TV Lines SYNCHRO FREQUENCY NTSC: 15.734 kHz –...
- Page 2 . OPERATIONS AND ADJUSTMENTS 1. Connect the power cord and turn the power ON. 2. Adjust the iris and focus of the lens to obtain the optimum image. * Using normal lenses CS-mount lens mode is the standard type. When use C-mount lens, Please use the CS-C conversion Ring.
