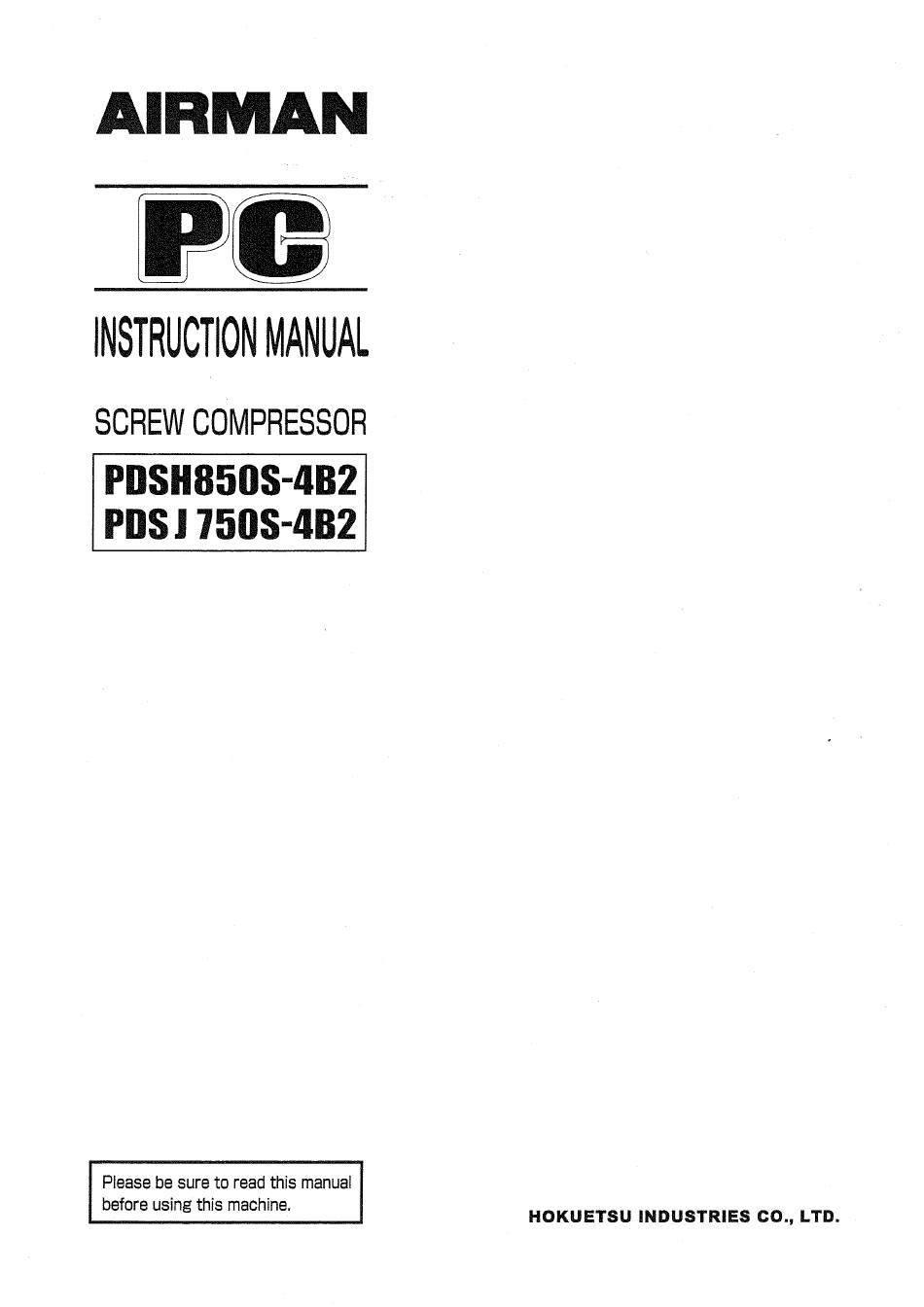

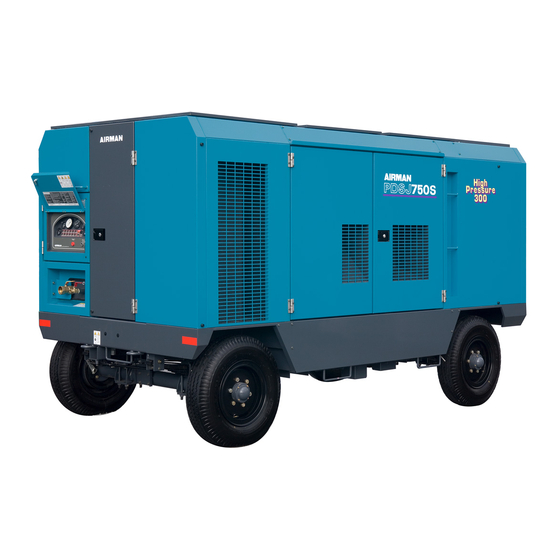

- Page 2 Preface Thank you for having selected our “AIRMAN” product. ◆ This manual explains about the proper operation and daily inspection and maintenance of this machine. ◆ In order to use a machine safely, people with sufficient knowledge and sufficient technology need to deal with it.
-
Page 3: Table Of Contents
Table of Contents 1. Safety -------------------------------------------------------------------------------------------------------- 1.1 Caution before Operation ---------------------------------------------------------------------------------------------------- 1-2 1.2 Caution during Operation ---------------------------------------------------------------------------------------------------- 1-5 1.3 Caution during Inspection and Maintenance ---------------------------------------------------------------------------- 1-7 1.4 Safety Warning Labels ------------------------------------------------------------------------------------------------------- 1-10 2. Part Names ------------------------------------------------------------------------------------------------ ... -
Page 4: Safety
1.Safety This manual explains and illustrates general requirements for safety. Read all safety requirements carefully and fully understand the contents before start- ing the machine. For your better recognition, according to the degree of potential danger, safety mes- sages are classified into three hierarchical categories, namely, , and with a caution symbol －attached to each message. -
Page 5: Caution Before Operation
1.Safety Caution before Operation Compressed air is prohibited to be used for human respiration Compressed air by this unit contains poisonous materials. Absorption of the compressed air can cause serious injury. Never provide this compressed air for human respiration. This unit is not designed to be used for working chambers pressurized by compressed air such as respiratory air provided to persons working inside TR0201-1... - Page 6 1.Safety Handling battery Keep flames away from battery. Battery may generate hydrogen gas and may explode. Battery electrolyte is dilute sulfuric acid. In case of mishandling, it could cause skin burning. When you deal with a battery, please be sure to wear protec- tion implements, such as protection glasses and a glove.
- Page 7 1.Safety Maintain both physicl and mental health Do not operate the machine when you are tired or drunk or under the influence of drugs. Otherwise, a hasty conclusion or careless handling may cause unexpected injury or accident. Manage your physical and mental health and be cautious in handling the machine. Protection equipments Please wear protection implements, such as a helmet, protec- tion glasses, earplugs, safety shoes, a glove, and a protec-...
-
Page 8: Caution During Operation
1.Safety Caution during Operation Do not replenish compressor oil during operation Do not, under any circumstance, open the oil filler cap of separator receiver tank while running or immediately after stopping operation. It is very dangerous because the oil filler cap could be blown off and high temperature compressed air and oil could jet out from the filler port, and cause serious injury. - Page 9 1.Safety Operation with compressed air supply port opened is prohibited Do not operate the machine with service valves and relief valve open unless air hoses and/or pipes are connected. High-pressurized air blows out and its air pressure could cause injury to the people nearby. When the machine has to be unavoidably temporarily operated with its port open, be sure to mount a silencer to reduce noise and wear protective materials such as...
-
Page 10: Caution During Inspection And Maintenance
1.Safety Caution during Inspection and Maintenance Hang a “Now Checking and under Maintenance” tag Remove the starter key from the starter switch before starting inspection, and hang up a “Now Checking and under Maintenance” tag where it can be easily seen. The checker must keep the key during checking and maintenance. - Page 11 1.Safety Adjusting tension of fan belt Be sure to stop the engine and remove the starter key whenever the tension of the fan belt is to be adjusted. Remove the negative (–) side cable from the battery. If the machine is running, it might catch the operator’s hand into the fan belts, and this could cause a serious injury.
- Page 12 1.Safety Opening coolant water drain valve cap Be sure to stop the engine, and let the coolant water sufficiently cool down before draining it. If the drain valve is opened before the coolant water is cooled enough, hot water could jet out, and it could cause scalding.
-
Page 13: Safety Warning Labels
1.Safety Safety Warning Labels Following labels are attached to the machine. Keep them clean at all times. If they are damaged or missing, immediately place an order with your nearest dealer for replacement. Part numbers are indicated on the lower right corner of the label. Adhere a new one to the original location. - Page 14 1.Safety ● The pasting position of safe warning label is as follows. 5 10 4 3 A070443E 1-11...
-
Page 15: Part Names
2.Part Names Internal Components and Part Names 5 6 7 9 10 20 19 18 17 16 15 14 A070438 Description Function Oil cooler For cooling compressor oil circulating in the system. Fuel filter For filtering dust and foreign matter mixed or to be mixed in the fuel oil. For filtering dust and foreign things mixed in fuel oil and also for Pre filter separating water. - Page 16 2.Part Names 23 24 25 26 27 28 29 30 A070438-1 Description Function Oil separator differential For indicating abnormality of oil separator clogging. pressure gauge Unloader regulator For regulating revolution speed of compressor air-end Air filter (For engine) For filtering the dust floating in the intake air. Air filter (For For filtering the dust floating in the intake air.
-
Page 17: Installation
3. Installation Transportation Transportation When loading and unloading unit, be sure to use the lifting bail provided on the center of the unit top. Never get under the unit which is suspended, because it is very dangerous. When unit is transferred or moved from working site, be sure to place it on truck bed, and fasten it by ropes at the front and rear hooks. -
Page 18: Handling The Drawbar
3. Installation Handling the Drawbar Precautions on handling drawbar When the drawbar “ 1” is raised up for transportation, be sure to secure it by engaging the drawbar hook “3” with the holder “2”without fail. If the drawbar hook comes off the drawbar falls down, Lock position causing serious injury. -
Page 19: Towing The Unit
3. Installation 3.2.2 How to release the drawbar ① Push the fixed drawbar “1”against the machine in the direction of arrow mark. ② Turn the stopper“4”a little to make larger the clearance between stopper“4”and holder“2”than the diameter of the hook“3”. ③... - Page 20 3. Installation Installation Exhaust gas from the engine is poisonous, and could cause death when inhaled. Avoid using the machine in an insufficiently ventilated building or tunnel. Do not position the exhaust gas outlet in direction of a person or a house. PC002 The machine has to be parked horizontally on a level place.
-
Page 21: Compressed Air Service Valve
3. Installation Compressed Air Service Valve Do not fail to install a check at the outlet of Compressor compressed air and then start piping. If the piping is performed without a check valve“1” installed, it is feared that the liquid in the piping can be returned into the compressor air-end it can cause a damage to the compressor air-end. -
Page 22: Operation
Never do that during operation. When selecting the operating pressure, never change it by adjusting the speed regulator. Make sure to select “Low Pressure” or “High Pressure by using the selector switch of the rated pressure. [PDSH850S-4B2] High pressure position Low pressure position Working pressure 1.72MPa... -
Page 23: Instrument Panel
4. Operation Instrument Panel A070420 1. Fuel level gauge ＜Indicator lamp＞ ＜Emergency stop lamp＞ 19. Fuel system failure 2. Interstage pressure gauge 10. High pressure 20. Residual fuel gauge 3. Discharge air pressure 11. Low pressure 4. Tachometer 12. Preheating 21. - Page 24 4. Operation Indicator lamp Item Trouble Monitor Rated pressure 1.50MPa Low pressure Rated RPM 2,200min PDSH850S Rated pressure 1.72MPa High pressure Rated RPM 2,200min Rated pressure 1.50MPa Low pressure Rated RPM 2,200min PDSJ750S Rated pressure 2.07MPa High pressure Rated RPM 2,200min Warning lamp When the lamp goes on, take appropriate measures to recover the situation swiftly.
-
Page 25: Door
4. Operation Emergency stop lamp The compressor stops when the emergency stop lamp goes on. (※The compressor stops in 15 seconds only when engine speeds down.) Be sure to follow the measures shown below before starting the unit again. Item Trouble Measures Monitor... -
Page 26: Lubricating Oil・Coolant・Fuel
Be sure to change the oil completely at every scheduled interval. Follow the designated regulations to dispose of compressor oil. ＊Unit is delivered ex. factory, filled with “AIRMAN OIL LONG LIFE HP”. - Page 27 4. Operation 4.4.3 Coolant Quality of coolant and antifreeze Use soft water of good quality such as tap water for coolant. When water with dirt, sand, and/or dust contained, or hard water such as well water (ground water) is used, this will cause deposits inside radiator or on cylinder head, and will cause engine overheat due to poor flow of coolant.
-
Page 28: Check Before Starting Unit
4. Operation Check before Starting Unit Check before starting unit Be sure to check the unit before operation. When any abnormality is found, be sure to repair it before restarting the unit. Be sure to make daily checks before operation. If the unit is operated without prior check and without noticing its abnormality, such operation could cause seizure of components or may even cause fire. - Page 29 4. Operation 4.5.2 Check Coolant Level Taking off the radiator cap Be sure to stop the machine and allow time to cool. Then loosen the radiator cap one notch. After the coolant water is sufficiently cooled and the inner pressure is released, take the cap off. If this procedure is neglected, the inner pressure can blow off the cap.
- Page 30 4. Operation 4.5.3 Check Compressor Oil Level Refilling of compressor oil When you refill the separator receiver tank with compressor oil, stop the engine, and make sure that the pressure gauge indicates 0MPa and there is no residual pressure in it, and then gradually loosen the oil filler cap for refilling oil.
- Page 31 4. Operation 4.5.5 Check Fuel Check fuel level gauge before operation. Replenish enough fuel to prevent fuel shortage during operation, if the level is low. Drain condensed water accumulated at the bottom of fuel tank whenever it becomes necessary. Fire prevention Do not, under any circumstance, smoke cigarettes or light matches during fueling.
- Page 32 4. Operation 4.5.8 Check V-Belt Tension Too tight belt tension could damage shaft and shorten bearing life. Too loose belt tension may result in damaging belt earlier and machine components due to overheat. Follow the procedure below to adjust tension of fan belt and V-belt for alternator. <Procedure>...
- Page 33 4. Operation 4.6.1 Procedure to Start the Unit Be sure to warm-up Be sure to let unit warm-up after starting for smooth operation of the engine and the compressor. Do not operate the engine at full load immediately after it starts up. This will shorten the equipment life. During the warm-up operation, examine the different parts of the equipment for any looseness, leakage of water, oil, fuel, and other irregularities.
- Page 34 4. Operation 4.6.2 Operating Procedures when Engine Fails to Start up on First Attempt When the engine fails to start up even after performing the startup procedures ① to ⑥ do not keep the starter running, but set the starter switch back to ”STOP” and wait about 30 seconds. Then, repeat the startup procedure once again.
- Page 35 4. Operation 4.6.3 How to Start the Unit at Low Temperature Operation under Cold Weather Conditions below -5°C Use SAE10W-30 (CD class) for the engine oil. Use LLC (antifreeze). Use correct amount to provide freeze protection, according to the ambient temperature.
- Page 36 4. Operation 4.6.4 Gauge Indication while Operating During operation, keep the discharge air pressure gauge indicating higher pressure. than 1.37MPa (for PDSH850S/PDSJ750S) Continuing equipment operation at a lower pressure than the above pressure may cause overheating, since it affects the separation of lubricating oil inside the oil separator and reduces the oil flow to the compressor air-end, resulting in temperature rise.
- Page 37 Coolant Discharge air Type Pressure temperature Temperature Operation pressure gauge gauge Unload 1.50～2.07MPa 1.50MPa Low pressure Full load 1.37～1.50MPa PDSH850S-4B2 95～120℃ 75～95℃ Unload 1.82～2.07MPa 1.72MPa High pressure Full load 1.37～1.72MPa Unload 1.50～2.45MPa 1.50MPa Low pressure Full load 1.37～1.50MPa PDSJ750S-4B2 95～120℃...
- Page 38 4. Operation 4.6.5 Performance Check of Safety Valve Keep face or hand away from the discharging outlet of safety valve. It is very dangerous because high-pressure compressed air jets out. Make sure to check the safety valve “1” performance once a day. Close the service valves completely and pull the test lever“2”to check the performance.
