Summary of Contents for Futura Sport Range

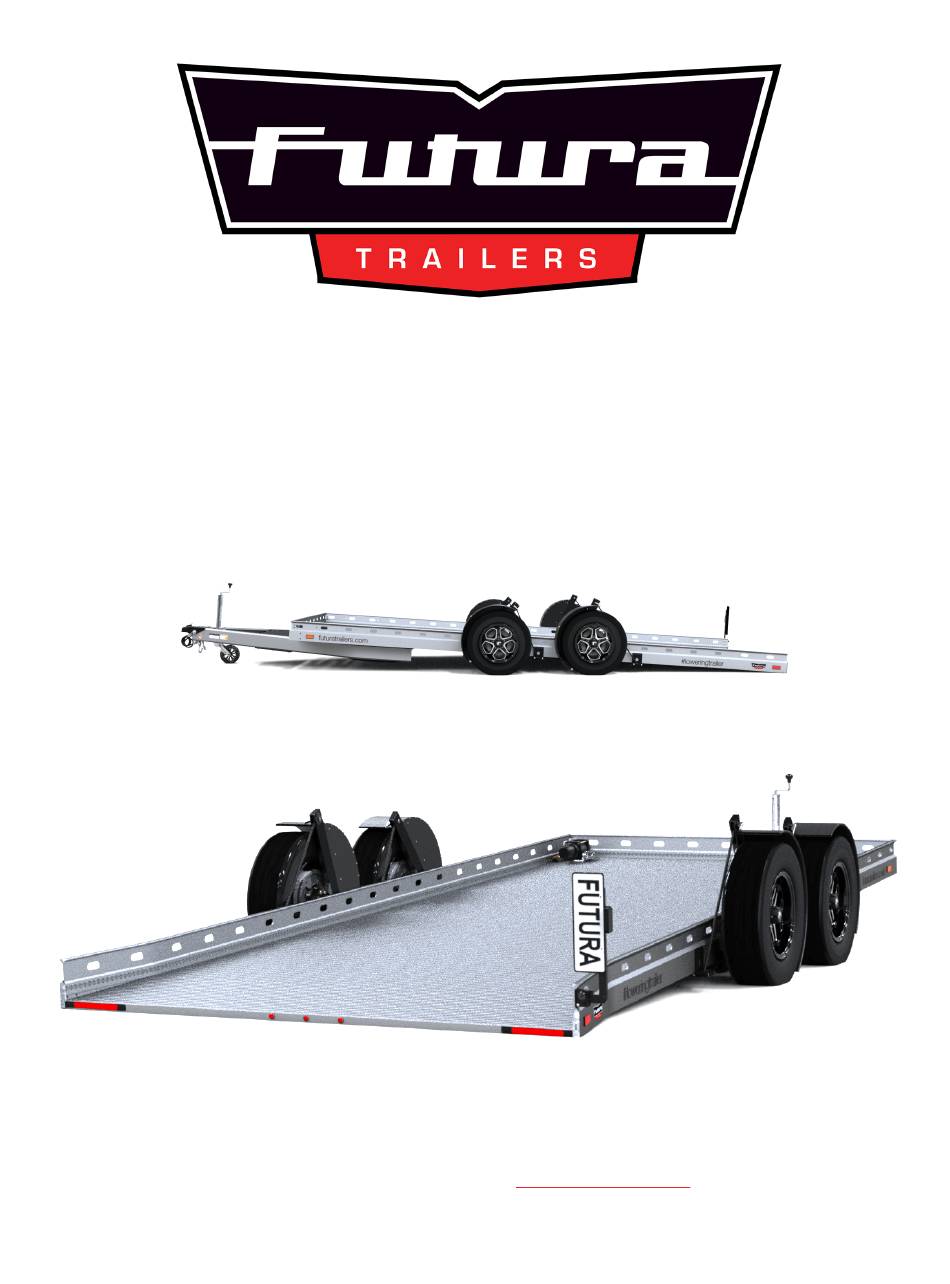

- Page 1 Sport Range Lowering Trailer Manual NZ / AUS If you have any questions please email trailers@futuratrailers.com ph +64 9 415 2563...
- Page 2 E-MAIL TRAILERS@FUTURATRAILERS.COM OR PHONE +64 9 415 2563 In the event that the trailer is returned to an authorised Futura Trailers dealer or Futura Trailers facility or authorised agent and under their inspection is determined to have been defective in material and/or workmanship, under normal use, the trailer will be repaired without charge to the original purchaser.
- Page 3 Welcome to Futura Trailers Thank you for your recent purchase of a Futura lowering trailer. At Futura Trailers we take great pride in the quality of our trailers and hope your experience with our company is both satisfying and rewarding. We are confident that our trailers will meet your high standards.
- Page 4 Read before towing your trailer CAUTION Wheel separation can occur. For proper safety and performance the following checks should be performed at the specified intervals. Check wheel nut torque to 95 ft/lb at 15, 50 and 100 km and before each tow. Trailer wheel nuts are prone to loosen after first being assembled.
- Page 5 Operating your Futura Lowering Trailer This document is to be read in full. Learn how to safely and correctly operate the Futura lowering trailer. Instructional videos are available at bit.ly/FuturaOwnerDIYvideos. 1. Connect the trailer to the tow vehicle CAUTION Dangerous trailer sway may occur if hitch height is too low.
- Page 6 Operating your Futura Lowering Trailer Connect to the tow vehicle. Ensure the safety cables and the break-away cable are securely connected to the tow vehicle. Safety cables must be crossed under the hitch. Crank up the jockey wheel completely until the wheel locks.
- Page 7 Operating your Futura Lowering Trailer 2. Park the trailer on level ground. CAUTION The trailer lifting arms may not raise fully if the trailer is not parked on level ground. 3. Lower the trailer. Turn on the master switch to operate the trailer raising winch.
- Page 8 Operating your Futura Lowering Trailer Turn on your wireless remote by holding down the two buttons simultaneously for 5 seconds until the red light illuminates. Lower the trailer with the wireless “Trailer” remote; or - use the manual switch on the winch enclosure to lower the trailer.
- Page 9 Operating your Futura Lowering Trailer CAUTION If you forget to unlock the safety latches before lowering the trailer, do not attempt to unlock the safety latches as they will be under load. Raise the trailer again, then release the safety latches.
- Page 10 Operating your Futura Lowering Trailer 5. Roll, winch or drive the vehicle onto the trailer. • Load the vehicle as far forward as possible. • Ensure that at least 10% of the total weight is on the trailer tongue. • Rear and mid engine cars may require loading backwards for correct load distribution.
- Page 11 Operating your Futura Lowering Trailer CAUTION Latches must be in the open position as below when raising the trailer. Damage may occur to the trailer if the latches are closed when raising. 6. Ensure all latches are in the unlatched position before raising the trailer using the Trailer remote or winch enclosure switch.
- Page 12 Operating your Futura Lowering Trailer Charging the onboard battery The trailer is equipped with a battery trickle charger which is powered by the tow vehicle auxiliary supply, if present on tow vehicle. The solar charger will operate in daylight to maintain the battery voltage.
- Page 13 Loading your Futura Lowering Trailer Futura lowering trailers are designed specifically for carrying motor vehicles. It is recommended that Futura over the wheel tie straps be used to secure the vehicle with the tie straps connected to the side chassis rails.
- Page 14 Regularly inspect the rope rigging. Ensure the winch rope is always neatly spooled on the winch drum. If any ropes are frayed, replace them immediately. Spare parts can be ordered online at futuratrailers.com/my-futura WARNING Be aware of the importance of running the trailer winch in the correct rotation when raising and lowering the trailer.
- Page 15 Zips On the Super Tourer Pro The sides should only be zipped open or closed when the trailer is fully raised and on level ground. The sides and back door must be fully closed during transport. Do not travel with the sides or the backdoor open.
- Page 16 Support We are sure you’ll enjoy the ease and convenience of your new Futura lowering trailer. If you have any questions please email trailers@futuratrailers.com. To view our Quick Start Video, download a copy of this guide and Futura Trailer’s 2-year Limited Warranty, to make a Limited Warranty claim or to order parts then please visit: futuratrailers.com/my-futura...
- Page 17 Service and Maintenance Summary • Check wheel nut torque to 95 ft/lb at at 15, 50 and 100 kms and before each tow. • Check wheel bearings for heat and excessive play at 15, 50 and 100 kms and before each tow. •...
-
Page 18: Service And Maintenance
Service and Maintenance Electric Brakes: Electric brake manual can be found on the Futura Trailers website. The trailer brakes should be burnished-in when new by applying the brakes 20 to 30 times with an approximate 30 kph decrease in speed, eg from 50 kph to 20 kph, allowing ample time for the pads to cool between application. - Page 19 LED trailer lighting may not work correctly when connected to these vehicles. Consult the vehicle manufacturer for a solution. IF IN DOUBT ABOUT ANY SERVICE OR MAINTENANCE PROCEDURES PLEASE HAVE YOUR FUTURA DEALER OR A SIMILARLY TRAINED AND QUALIFIED PERSON CARRY OUT THE TASK.
- Page 20 However to maintain the appearance of your Super Tourer Pro, we recommend cleaning it when particles begin to accumulate, leaving a visible trace. To clean your Futura Super Tourer Pro, raise your trailer to the travelling position and close all the zips.
-
Page 21: Disclaimer Of Incidental And Consequential Damages
Futura Trailers Ltd may direct you to an authorised Futura Trailers repairer, or may request that you bring your trailer to the nearest Futura Trailers facility for repairs. - Page 22 Our Range Four Versatile Models Club Sport 4000 x 1950 Ideal for a small vehicle. Simply load and unload your car even while the trailer isn’t connected to a tow vehicle. Super Sport 5000 x 2050 Ideal for a medium to large vehicle. Designed to transport wide and low vehicles without the need for ramps or a tilting deck.
- Page 23 Marketing and Social Media We love seeing our Lowering Trailers in action. Tag us in the fantastic photos you take with @futuratrailers or #futuratrailers If you see any photos you like on our social media pages or website, send us a message and let us know! futuratrailers.com...
- Page 24 FUTURA TRAILERS LTD, 42 WESTPOINT DRIVE, HOBSONVILLE, NZ If you have any questions please email trailers@futuratrailers.com ph +64 9 415 2563 futuratrailers.com...
