Summary of Contents for Avio R300-D

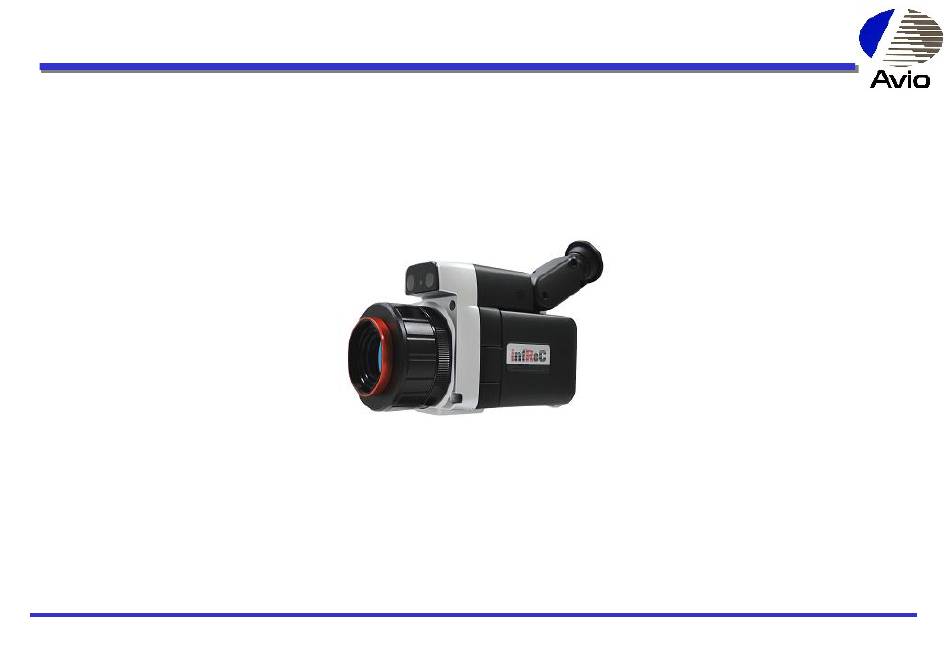

- Page 1 Training for human screening R300-D NIPPON AVIONICS CO., LTD. Infrared & Measuring Equipment Division NIPPON AVIONICS CO.,LTD...
-
Page 2: Step 2 : Setting Alarm
Agenda STEP 1 : What is Thermography? STEP 2 : SETTING ALARM STEP 3 : SETTING COLOR ALARM STEP 4 : TRACE MAX CURSOR NIPPON AVIONICS CO.,LTD... - Page 3 What is Thermography? “Infrared Thermography” is the machine which is detect Infrared energy from radiating object surface, and it can indicate 2D temperature distribution. Object Infrared energy Thermography NIPPON AVIONICS CO.,LTD...
- Page 4 FUNCTION OF EACH BUTTON AND TERMINAL Power Menu DC IN Joystick Battery attachment part Video out SD card slot NIPPON AVIONICS CO.,LTD...
- Page 5 FUNCTION OF EACH BUTTON AND TERMINAL Manual Focus Auto Focus Auto Scale Switch the mode NIPPON AVIONICS CO.,LTD...
- Page 6 SETTING ALARM Select “ALARM” NIPPON AVIONICS CO.,LTD...
- Page 7 SETTING ALARM Select “ALARM” NIPPON AVIONICS CO.,LTD...
- Page 8 SETTING ALARM Select “ALARM JUDGE” & “ON” NIPPON AVIONICS CO.,LTD...
- Page 9 SETTING ALARM Select “ALARM TEMP” & set “Temperature” CAUTION Please decide alarm temperature value on your side. NIPPON AVIONICS CO.,LTD...
- Page 10 SETTING ALARM Select “CONDITION” & “OVER” NIPPON AVIONICS CO.,LTD...
- Page 11 SETTING ALARM Select “AREA OF ALM” & “FULL SCREEN” NIPPON AVIONICS CO.,LTD...
- Page 12 SETTING ALARM Select “SOUND” & “ON” NIPPON AVIONICS CO.,LTD...
- Page 13 SETTING ALARM Select “VOLUME” & “LARGE” NIPPON AVIONICS CO.,LTD...
- Page 14 SETTING COLOR ALARM Select “COLOR ALARM” NIPPON AVIONICS CO.,LTD...
- Page 15 SETTING COLOR ALARM Select “COLOR ALARM” & “ON” NIPPON AVIONICS CO.,LTD...
- Page 16 SETTING COLOR ALARM Select “MIN VALUE” & set “temperature” CAUTION Please set minimum value as same as alarm temperature value which you set at page 9. NIPPON AVIONICS CO.,LTD...
- Page 17 SETTING COLOR ALARM Select “ALARM COLOR” & “RED” NIPPON AVIONICS CO.,LTD...
- Page 18 SETTING BACKGROUND COLOR Select “BKDG COLOR” & “HOT WHITE” NIPPON AVIONICS CO.,LTD...
- Page 19 REMOVE CURSOR ‘a’ Select “MEASURE” NIPPON AVIONICS CO.,LTD...
- Page 20 REMOVE CURSOR ‘a’ Select “POINT CURSOR” NIPPON AVIONICS CO.,LTD...
- Page 21 REMOVE CURSOR ‘a’ Select “HOLD DOWN THE SELECT BUTTON FOR 1 sec AND ‘a’ CHANGED TO OFF ” NIPPON AVIONICS CO.,LTD...
- Page 22 SAVE CONFIGURATION -> Presse Menu ->Select “SET UP” NIPPON AVIONICS CO.,LTD...
- Page 23 SAVE CONFIGURATION ->Select “SAVE CONFIG” -> Select “YES” NIPPON AVIONICS CO.,LTD...
-
Page 24: Maintenance
MAINTENANCE • Always use lens cover to cover the lens when thermo camera is not in use. •Wipe off any contamination on the external surfaces of the camera using a dry and soft cloth. •If dirt is hardened, first wipe with a cloth moistened with a neutral detergent, then wipe again with a dry cloth. - Page 25 Thank you !!! NIPPON AVIONICS CO.,LTD...
