Tii technologies CCP7 Series Installation Notes

P/N 92251501 • Rev B • ECN 19-006 • 1/16/19
CCP7
Model
Customer Connection Point

Description

1. The CCP7 Customer Connection Point Enclosure
is a compact, low profile unit intended for
connection, demarcation and slack storage of
fiber within a customer premise. Optionally allows
for mounting of an ONT.
2. The CCP7 can be mounted directly to a wall
baseboard or to a standard wall gang box.
3. The CCP7 contains an SC adapter and fiber
management features for slack storage.

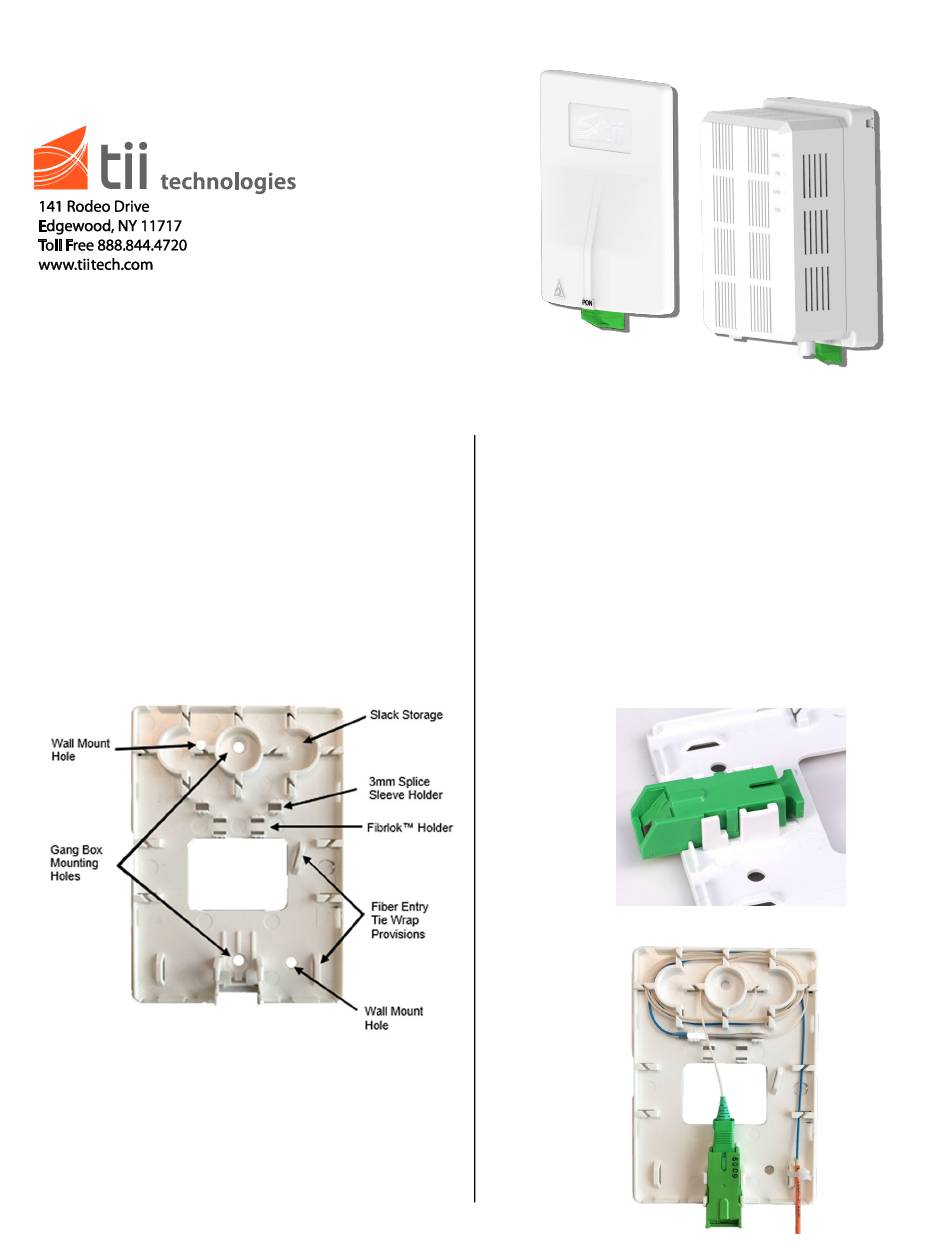

Mounting Plate Features

Installation

Install mounting plate to gang box using provided
hardware, or mount the CCP7 base to wall or
baseboard using appropriate hardware.
Fibrlok™ is a registered trademark of 3M Telecommunications.
Tii Technologies Inc. makes no claim to any rights in this mark.
Installation Note

Fiber Installation:

1. Fusion splice or install
2. Secure incoming fiber using provided tie-wrap.
3. Store input fiber 900u slack in upper storage
4. Secure fusion splice sleeve or Fibrlok™ splice in
5. Store output fiber 900u slack in storage features,
6. Install the SC Adapter by snapping the adapter
7. Insert SC connector into SC provided adapter.
Fibrlok™
incoming fiber
features, routing in a counter-clockwise manner.
appropriate holder.
also routing in a counter-clockwise manner.
into its holder in the base as shown below.
splice to
