Work Pro DIGILINE MX MKII User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

DIGILINE MX MKII
User Manual
Version1.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DIGILINE MX MKII and is the answer not in the manual?

Questions and answers

Summary of Contents for Work Pro DIGILINE MX MKII

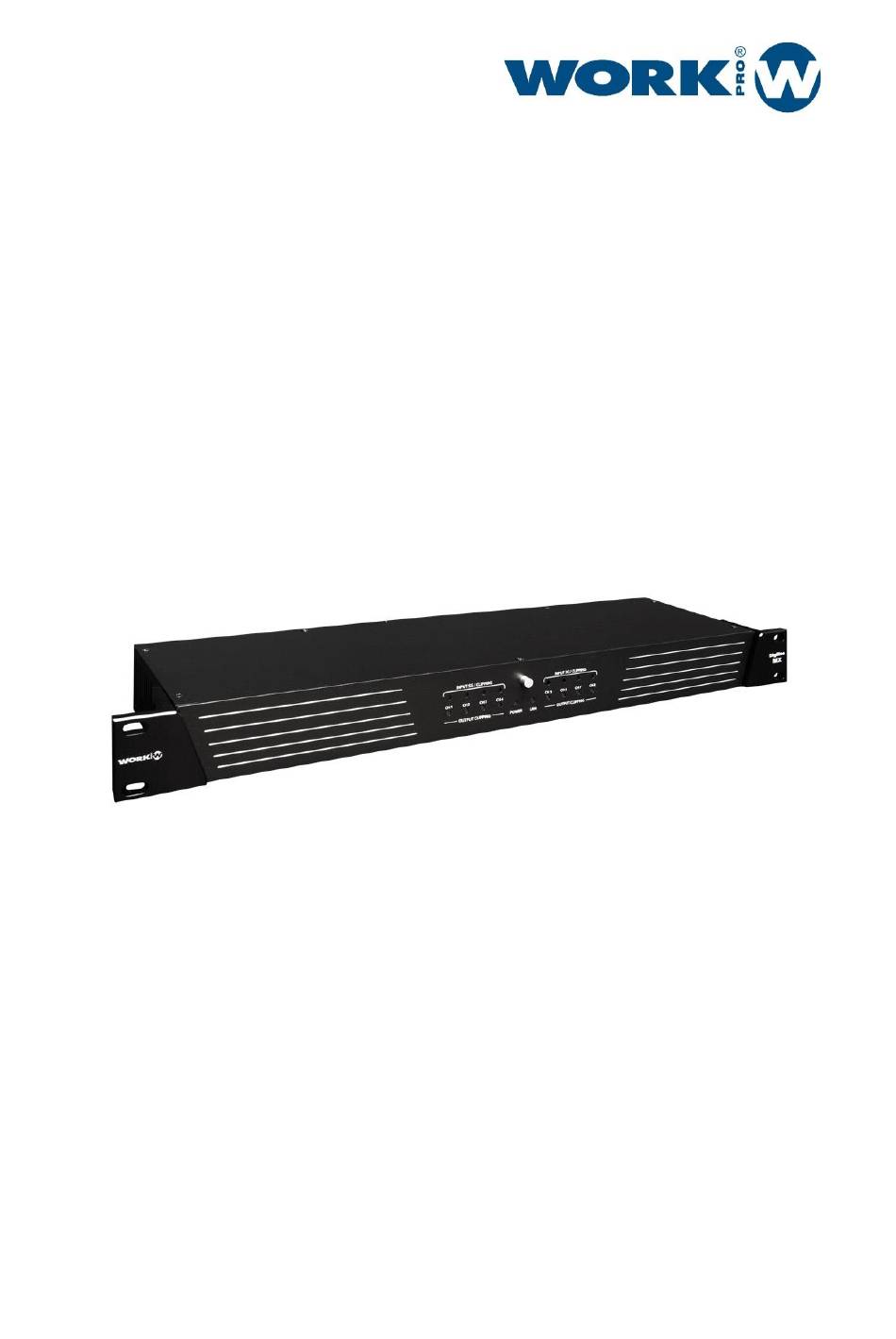

  • Page 1 DIGILINE MX MKII User Manual Version1.1...
  • Page 2 This document contains essential information on the use of the system. Read this document carefully to become familiar with the system. Please check the WORK PRO website regularly to download the latest version of the document and software updates: https://www.workpro.es/ DIGILINE MX MKII www.workpro.es...

  • Page 3: Table Of Contents

    DIGILINE MX MKII USER MANUAL VERSION 1.1 CONTENT 1. INTRODUCTION ..........................3 2. FEATURES ............................3 3. DEVICE DESCRIPTION ........................4 Front Panel ..........................4 Rear Panel ..........................5 Connections ..........................5 3.3.1. Inputs ........................... 5 3.3.2. Enabling MIC inputs ....................6 3.3.1.

  • Page 4: Introduction

    USER MANUAL VERSION 1.1 1. INTRODUCTION Digiline MX MKII is an 8x8 audio matrix with DSP, adaptable to most of your needs. The device has balanced inputs and outputs to provide it with greater immunity against electromagnetic interference. Digiline MX MKII is a versatile device supporting control through its GPIs, dedicated wall controls like the WNC1, custom layouts with WorkCAD3 Editor or third-party systems.

  • Page 5: Device Description

    DIGILINE MX MKII USER MANUAL VERSION 1.1 Network Connector RJ-45 Protocol of control OSC over UDP and RUDP Ports UDP 9000 / RUDP 9002 Ethernet 100 base TX GPIO Pull Up resistor, 5 Vdc max TTL 3.3V, 30mA Others Main supply...

  • Page 6: Rear Panel

    DIGILINE MX MKII USER MANUAL VERSION 1.1 Rear Panel 1. MIC 1-8 inputs. MIC level balanced inputs. 2. LINE 1-8 inputs. LINE level balanced inputs. 3. PAD Selection. 20 dB attenuator for each input. 4. PHANTOM Power. 15V phantom power.

  • Page 7: Enabling Mic Inputs

    In order to avoid unwanted noise, the Mic inputs are disabled, if you want to use them, they must be enabled with the jumpers supplied with your Digiline MX MKII. To do this, unscrew the top cover of your Digiline MX and include the necessary jumpers according to the inputs you want to enable.

  • Page 8: Setting The Device

    DIGILINE MX MKII USER MANUAL VERSION 1.1 The following point shows how to make the connections depending on the type of device to be connected. 4. SETTING THE DEVICE Device configuration must be done using the WorkCAD3 Configurator software, which you can download at the following link.
  • Page 9 DIGILINE MX MKII USER MANUAL VERSION 1.1 If you click with the left button of the mouse on the device, the configuration interface will open where the following parameters to configure appear. VIEW • DSP button. Allows you to choose the display of the processing fields.

  • Page 10: Dsp

    DIGILINE MX MKII USER MANUAL VERSION 1.1 4.1.1. DSP DSP Area: It is the area where the processing of the device's outputs is configured. • Output selection field. Allows you to choose the output you want to work on. The parameters to be controlled will vary depending on whether an input or an output has been chosen.
  • Page 11 DIGILINE MX MKII USER MANUAL VERSION 1.1 MATRIX. In this section you can choose the weighted sum of inputs to • be sent to each output. The value of each entry can be entered both graphically and numerically. For each input there is a Mute and Invert option.
  • Page 12 DIGILINE MX MKII USER MANUAL VERSION 1.1 • XOVER: In this section you can apply crossover filters on the selected output. We have high pass and low pass filter. We must select the cutoff frequency (20Hz-20KHz), filter order (eighth maximum) and filter type (Butterworth, Linkwitz-Riley, Bessel).
  • Page 13 DIGILINE MX MKII USER MANUAL VERSION 1.1 ● DYNAMICS. A Limiter / Compressor / Gate is available for each output. Enables. Dedicated to the activation of the Limiter, Compressor and Noise ▪ Gate Limiter Threshold. ▪ Compressor Times. Attack and Release times for the Compressor.

  • Page 14: Gpios

    DIGILINE MX MKII USER MANUAL VERSION 1.1 4.1.2. GPIOs Through the following window you can access the GPIOs configuration. ● GPIOS. Allows you to select the GPIO to configure. ● LMI. Level Measure Input. Allows you to configure the LMI input.
  • Page 15 DIGILINE MX MKII USER MANUAL VERSION 1.1 OSC Methods. It allows the programming of actions associated with the ● state of the GPI. They are commands that Digiline sends itself. Button to add command . Add UDP/OSC command. ▪ Button to eliminate command .
  • Page 16 DIGILINE MX MKII USER MANUAL VERSION 1.1 Once the command is included with the add button, the action we want to perform is selected. Type: Transport protocol. Currently only UDP mode is available. Description: Description of the UDP / OSC command. Information that will appear when we close the command edit drop-down.

  • Page 17: Lmi Input

    DIGILINE MX MKII USER MANUAL VERSION 1.1 Save. Button to sabe the command. Cancel. Button to cancel and exit from the OSC command editor. 4.1.3. LMI input The LMI input is a balanced microphone input (not phantom), which allows to execute commands, when the signal level is at a certain level.

  • Page 18: Presets

    DIGILINE MX MKII USER MANUAL VERSION 1.1 4.1.4. Presets In the next window you can access the configuration of the device presets, as well as the boot mode. Edit Preset. Allows the management of presets. RECALL. Allows you to load the selected preset.

  • Page 19: Setup

    DIGILINE MX MKII USER MANUAL VERSION 1.1 4.1.5. Setup Through this window you can access the configuration of options other than signal processing. ● Password Lock. Allows you to configure the locking options. Input Mixer. Lock the mixer. ▪ Limiters. Lock the Dinamic section.

  • Page 20: Project Saving And Device Syncing

    DIGILINE MX MKII USER MANUAL VERSION 1.1 New Password. Allows you to enter a Password to activate the lock. ▪ Retype Password. Field to verify the Password previously included. ▪ Lock/Unlock. Allows you to lock / unlock the device. ▪...
  • Page 21 DIGILINE MX MKII USER MANUAL VERSION 1.1 DIGILINE MX MKII www.workpro.es...
  • Page 22 DIGILINE MX MKII USER MANUAL VERSION 1.1 DIGILINE MX MKII www.workpro.es...
