After Sales Service Procedure for
General information
From :
Handpresso, Marine Enjolras
To :
Technical team
Number of pages :
25
Validate by :
Romain Pillard

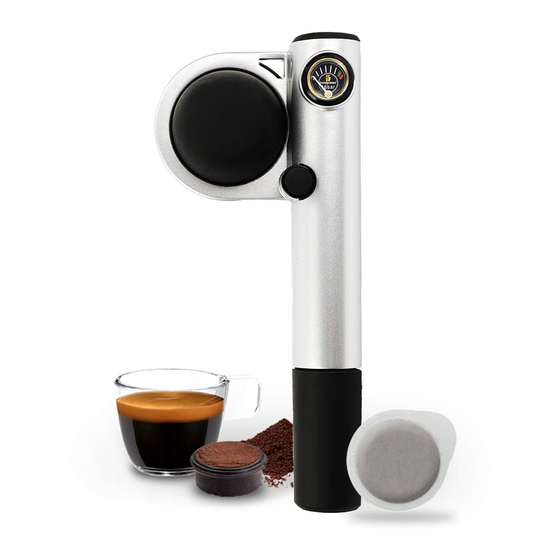

Handpresso Wild
Date :
08/10/2013
Project :
Handpresso Wild
0
Handpresso
43 rue Royale
77300 Fontainebleau
France
+33 1 64 70 10 20
www.handpresso.com
