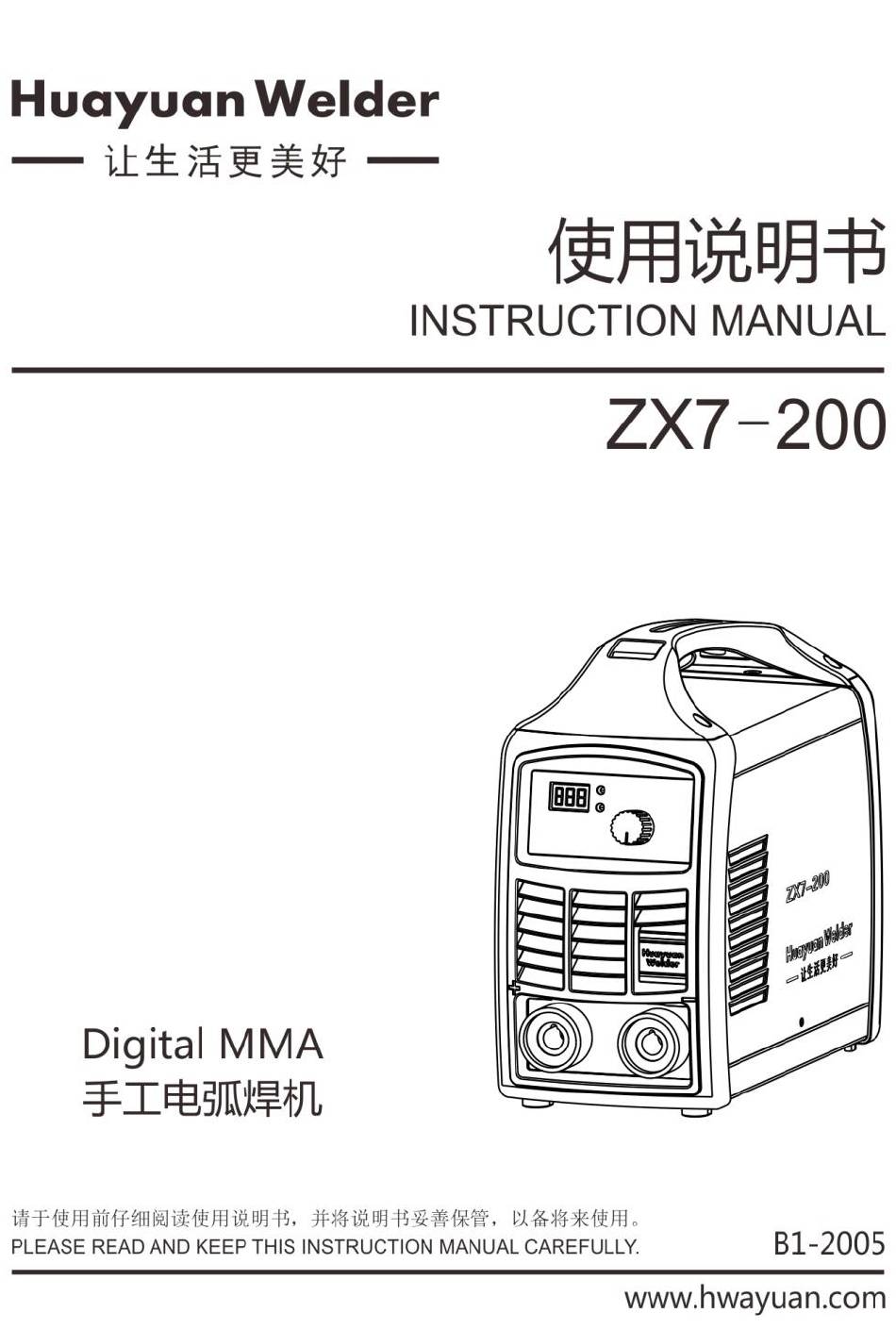

Hwayuan Electric ZX7-200 Instruction Manual

Digital mma
Table of Contents

Advertisement

Advertisement

Chapters

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ZX7-200 and is the answer not in the manual?

Questions and answers

Summary of Contents for Hwayuan Electric ZX7-200

  • Page 3 感谢您选用华远设备! 华远公司的所有焊接和切割设备在设计上已充分顾及用户的安全和舒适,尽管 如此,如果您能正确地安装和使用该设备对您的安全仍将大有助益。在没有认 真阅读说明书之前,请不要随意安装、使用或对设备进行维修。 要做就做最好! 华远焊机—...
  • Page 4: Table Of Contents

    目录 一、安全操作注意事项 ..............1 二、产品概述 ................3 三、主要技术参数 ................4 四、工作原理概述 ................5 五、安装及操作 ................6 (一)功能说明 ................6 (二)安装 ..................7 (三)操作说明 ................9 六、保养与维修 ................. 10 (一)保养 ................. 10 (二)维修 ................. 10 七、产品装箱单 ................. 11 八、电气原理图 ................. 12...
  • Page 5: 一、安全操作注意事项

    一、安全操作注意事项 为了您和他人的安全,在焊接前请务必遵守以下事项: 1. 操作者资格必须符合国家相关标准的规定; 2. 为防止发生触电事故,焊机和被焊工件,必须可靠地接好接地装置,接地 装置应符合国家相关标准。不要同时触摸焊机两个输出端,以及所连接的 外露金属表面。严禁同时触及两台焊机的带电部分。焊接时佩戴的防护用 品必须是干燥和绝缘的; 3. 在对焊机进行安装、维护、维修之前,应切断焊机供电开关,以免造成安 全事故,此项应由专业技术人员进行操作; 4. 为防止焊接时产生的气体、烟尘、强光、飞溅及噪音对人体造成伤害,请 务必遵照有关的劳动保护条例和规定,配戴相应的防护用品和安装局部通 风装置。防止小孩进入危险区; 5. 焊机及焊接地点应远离易燃易爆品,请勿对密闭容器进行焊接。在容器箱 体的入孔处进行焊接是危险的,应在作业之前确保焊接处没有可燃性气体 或有毒性气体; 6. 焊机摔落或碰撞后,应由相关专业人员检查确认后方可使用; 7. 在高空或有跌落危险的场合作业时,应佩带安全带以防电击导致失去平衡 摔伤; 8. 该焊机防护等级为 IP21S,不适宜在雨中使用;...
  • Page 6 二、 一、安全操作注意事项 9. 当焊机放置在倾斜的平面时,应注意防止其倾倒; 10. 禁止将焊机作管道解冻之用; 11. 本产品按照工业标准设计,可能会产生电磁干扰,使用时应作好充分的预 防措施。 电磁场对健康的影响未经证实和查明, 不排除对身体有负面影响。 磁场会影响心脏起搏器,起搏器使用者应远离; 12. 本焊机静外特性为降特性, 其额定负载持续率为 30%, 是指在 10 分钟工作 周期内,焊机在额定焊接电流状态下工作 3 分钟,休息 7 分钟。当焊接超 过额定负载持续率使用时,焊机内部温度上升将超过设定温度,为了避免 焊机性能恶化、甚至烧毁焊机的危险,本系列焊机设置有热保护功能,当 焊机内部温度上升超过设定温度时,热保护动作,焊机面板上过热指示灯 亮,此时焊机无法焊接,必须等焊机内部温度下降到低于设定温度时,焊 机面板上过热指示灯熄灭,焊机才恢复正常,仍可继续焊接; 13. 本焊机供货状态为纸箱包装,重量轻,没有提升装置,用户可以采用人工 或升降叉车将其搬运到位,然后拆箱。...
  • Page 7: 二、产品概述

    二、产品概述  采用先进的 IGBT 逆变技术,频率高,引弧容易,焊缝成型美观;  采用先进的数字程序控制电路,电流稳定且连续可调;  具有过载保护功能、防粘功能、防触电保护功能;  广泛用于各类酸、碱性焊条的焊接;  广泛用于室内外装修、五金制造及野外施工等;  产品依据 GB/T 15579.1-2013 标准设计;  产品的使用条件符合 GB/T8118-2010。...
  • Page 8: 三、主要技术参数

    三、主要技术参数 型 号 单位 ZX7-200 额定输入电源 V/Hz 1~220±15% 50/60 额定输入容量 额定输入电流 焊接电流调节范围 25~180 额定空载电压 额定负载持续率 30%(40℃) 效率 功率因数 0.75 外壳防护等级 IP21S 绝缘等级 F 级 外形尺寸(长×宽×高) 300×140×270 电源净重...
  • Page 9: 四、工作原理概述

    四、工作原理概述 单相 220V 交流电经整流滤波转换成直流电, 送到中频功率变换电路隔离降压, 最后再整流成可供焊接使用的直流电压输出。输出采用电流、电压采样,反馈 控制中频功率变换电路,从而达到稳定的焊接电流输出。...
  • Page 10: 五、安装及操作

    五、安装及操作 (一)功能说明 数显表:显示焊接电流的大小。 过热指示灯:符号“ ”表示,灯亮说明焊机内部温度过高。 电源指示灯:符号“ ”表示,通电开机时此指示灯亮。 焊接电流调节旋钮:调节焊接电流的大小。 焊机正极输出端:面板符号“+”; 焊机负极输出端:面板符号“-”; 电源开关:控制焊机供电的通断。...
  • Page 11: 二)安装

    五、安装及操作 (二)安装 1. 安装方法 本产品必须采用 50A 漏电保护开关,保险丝容量 40A。 必须在确认配电开关是关闭的前提下,进行安装。请勿湿手安装。不要在供电 电缆上放置物品。请按以下顺序安装:  将焊机电源输入线与对应的电源接线柱或插座连接可靠。要求供电电压 必须为单相 AC220V,供电电线截面积必须≥6mm 。电源线中的绿黄双色 线,请必须与配电保护接地线可靠连接;  将电焊钳电缆线插头和地线夹电缆线插头插入插座内,顺时针旋紧;  要求所有焊接电缆铜线截面积必须≥16mm ;  焊接电缆线≥20 米时,应加大焊接电缆截面积。...
  • Page 12 五、安装及操作 2. 安装示意图...
  • Page 13: 三)操作说明

    五、安装及操作 (三)操作说明 在安装无误的前提下,将电源开关搬到“ON”位置,风扇开始转动,电源指示灯 亮, 焊机开始正常工作。 调节焊接电流调节旋钮, 数显表上有相应电流值显示, 开始焊接。焊接完毕后,请将电源开关搬到“OFF”位置。 本焊机适用的焊条直径及使用电流参考值见下表: 焊条直径 (mm) 焊接电流 25~40 40~70 50~80 80~120 160-190 (A)...
  • Page 14: 六、保养与维修

    六、保养与维修 进行保养与维修必须由相关专业技术人员进行! (一)保养  定期检查焊机各连接接头是否松动、接触不良;  保持清洁:每半年打开机箱,用干燥的压缩空气清理灰尘。 (二)维修  常见故障及排除:(见下表) 故障现象 故障原因 排除方法 1.供电电源开关未闭合 1.检查供电电源开关,并确 或损坏; 打开电源开关, 电 认供电电压正常; 2.电源输入线连接不可 源指示灯不亮 2.检查连接点,确保可靠。 靠。 1. 不关闭电源, 让焊机冷却, 待过热 指示灯 熄灭 后可 1.过载使用; 焊机不工作, 过热 继续正常焊接; 2.冷却风扇异常; 指示灯亮 2.更换冷却风扇; 3.温度传感器损坏。 3.更换温度传感器。 1.电流电位器损坏。 1.更换焊接电流电位器。...
  • Page 15: 七、产品装箱单

    七、产品装箱单 1. 焊机 壹台 2. 电缆插头 两个 3. 使用说明书、产品合格证、保修条例 各壹份...
  • Page 16: 八、电气原理图

    八、电气原理图...
  • Page 17 Thanks for choosing Huayuan Welder Even though customer’s safety and comfort have being fully considered for the welding and cutting equipments from Huayuan company, installation and operation correctly is still needed for your safety. Pleased don’t install, operate or maintain the machine before read the manual instruction. Huayuan Welder-DO THE BEST!
  • Page 18 CATALOGUE Safety warnings ................15 Product characteristic ..............17 Technical specifications ..............18 Working Principle ................19 Installation and Operation ............... 20 Maintenance and repair ..............23 Packing list ..................24 Electric Diagram ................25...
  • Page 19: Safety Warnings

    Safety warnings For your and other’s safety, please follow the list below before welding: 1. Operator must be qualified according with the state standard. 2. The welding circuits are not insulated when welding. If you touch the two output electrodes of the machine with your bare skin at the same time, it will lead to electric shock, sometimes even fatal dangers.
  • Page 20 Safety warnings 7. When working high above the ground, safety belt must be needed. 8. The machine insulation grade is IP21S, can't be used under the rain. 9. Put the machine on the inclined place need to avoid tilting. 10. Use the machine for pipeline thawing is prohibited. 11.
  • Page 21: Product Characteristic

    Product characteristic  Adopting advanced IGBT inverter technology, high frequency, easy to strike arc, with good welding performance.  Adopting advanced digital control circuit, current stable and adjustable.  With overload protection, anti seize and anti shock protection function.  Widely used for all kinds of acid and basic electrode. ...
  • Page 22: Technical Specifications

    Technical specifications Item Unit ZX7-200 Input Power V/Hz 1~220±15% 50/60 Rated Input Capacity Rated Input Current Output Current Adjust Range 25~180 Rated Open Circuit Voltage Rated Duty Cycle 30%(40℃) Efficiency Power Factor 0.75 Ingress Protection IP21S Insulation Grade Dimension(LxWxH) 300×140×270...
  • Page 23: Working Principle

    Working Principle Single phase 220V alternating current transform to direct current, send to frequency power conversion circuit to isolate and reduction voltage. Then the direct current output voltage can be used for welding. Output use current and voltage sampling, feedback to control frequency conversion circuit to get stable output welding current.
  • Page 24: Installation And Operation

    Installation and Operation Functions instruction Digital meter: indicate the welding current Overheat indicator: symbol “ ”indicator on means the machine inside temperature too high Power indicator: symbol “ ”will on when machine turn on Welding current adjust knob: adjust the welding current Welding machine positive output terminal: “+”...
  • Page 25 Installation and Operation Installation 1. Installation method This welding machine use 50A electric leak protection switch, fuse capacity 40A. Make sure the distribution switch is off before install the machine. Don’t install the machine when hand is wet, don't put items on the welding cable, follow the steps below: ...
  • Page 26 Installation and Operation 2. Installation drawing 3.Operation instruction After ensure the installation correct, turn the power switch to “ON”, the fan start to work, power indicator on, machine work normal. Turn the current adjust knob, the current value will show on the digital meter, welding start. Turn the power switch to “OFF”...
  • Page 27: Maintenance And Repair

    Maintenance and repair Maintenance and repair must be made by technical person! 1. Maintenance  Inspect all the connections regularly.  Keep clean: open the shell and use compressed air to blow the dust by half a year. 2. Repair ...
  • Page 28: Packing List

    Packing list 1. Welding Machine 1set 2. Cable connector 3. Instruction manual/guarantee card/qualified card one for each...
  • Page 29: Electric Diagram

    Electric Diagram...
  • Page 30 华远公司保留其使用说明书的最终解释权! 说明书如有变更,恕不另行通知! Huayuan reserve the rights of final explaination for the instruction manual! The instruction manual is subject to change without notice!
