Smart Camera

Quick Start Guide

Technology Ltd.

https://www.unisiot.com/en/web/

Table of Contents

Need help?

Do you have a question about the C0221100 and is the answer not in the manual?

Questions and answers

Summary of Contents for IOT C0221100

Page 2 Statement Thank you for choosing UIOT, this user manual is intended for users of IP Camera(C0221100). It includes instructions on how to use the product. Before using the device, read the user manual carefully. Keep this manual for further clarifications. The descriptions, images and technical parameters may vary with the actual devices.
Page 3 a separate PSU should be used for each camera. A multiple-output PSU may be used if the multiple output PSU has isolated and protected (2A max) outputs. Cautions CAUTION: The light emitted from the near-infrared light emitting diodes (LEDs) provides illumination over a wide area. This light is not considered a risk to the unshielded human eye.

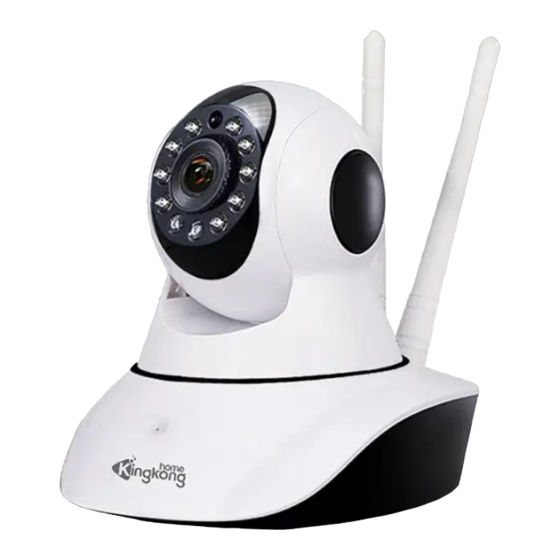

Page 4 Note: The pictures shown in this manual is for reference only, different models may vary its shape and structures. Please take actual product as standard. Installation Smart Camera C0221100 1. Tap on 'Privacy Cover' when the camera is connected. The camera will tilt upward then...
Page 5 2. Open the camera mounting base using the tool provided in the package. 3. Use the screws to fix the mounting base to the ceiling. 4. Route the cables properly and connect the corresponding cables. 5. Align the bottom of the camera with the groove on the base, and then rotate and clamp the camera.
Page 6 Network Configuration The IP system of all the cameras is in DHCP when leaving the factory. Access IP Camera over LAN Network Connection To view and configure the IP Camera via LAN, you need to connect the IP Camera in the same subnet with your local network, and install client software to search and access the IP Camera.
Page 7 3. Click Devices at the bottom, the Devices Management dialog box will appear. Device information including Device Name, ID, IP Address, Channel Status are listed. Add selected Device Delete selected Device Add All Detected Devices Delete All Added Device Research Device Set IP for Camera Automatically Note: JNVR will automatically connect the added device with default IP Camera account (Username: abc Password: 123).
Page 8 FCC Statement: Any Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause...
