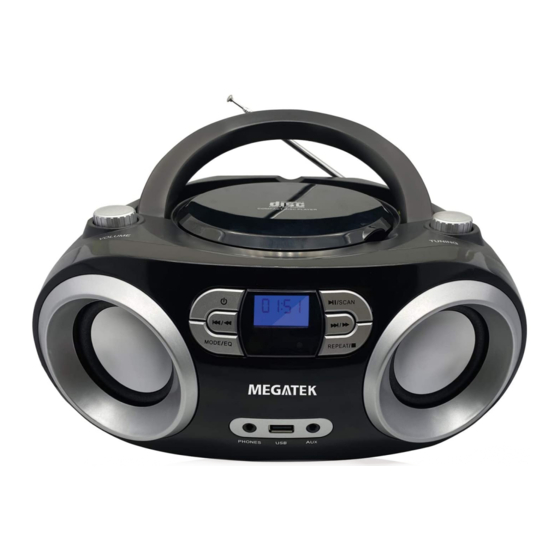

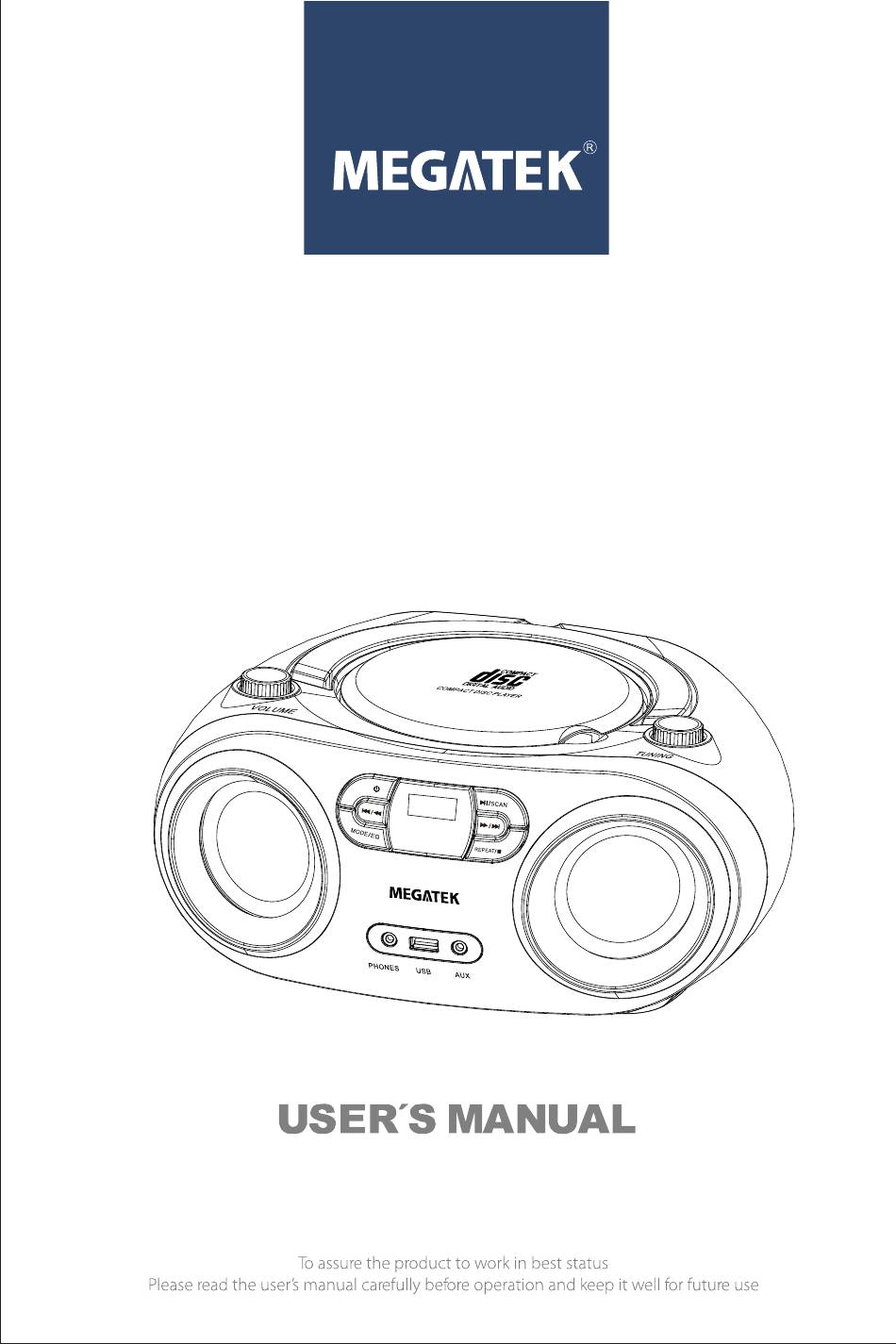

- Page 1 Portable CD Player with Bluetooth CB-M25BT...
-
Page 2: Table Of Contents
12 months warranty ........... .18 Welcome Congratulations on your purchase of a high-quality Megatek product. Your CB-M25BT is designed for reliable and trouble free performance, we wish you great satisfaction in using it. Safety information... - Page 3 Portable CD Player with Bluetooth CB-M25BT The exclamation point within a triangle is intended to alert you to the presence of important operating and maintenance (servicing) instructions in the literature accompanying your boombox. Your boombox uses a Class 1 laser to read Compact Discs.
-
Page 4: Features
Portable CD Player with Bluetooth CB-M25BT Ventilation Slots and openings in the cabinet and the back or bottom are provided for ventilation, reliable operation, and protection from overheating. These openings must not be blocked or covered. Do not block the openings by placing your boombox on a bed, sofa, rug, or other similar surface. - Page 5 Portable CD Player with Bluetooth CB-M25BT Front panel Press to turn on your boombox. Press again to Standby/ON button return your boombox to standby mode. In radio mode, press to skip to the previous lower preset station, or press and hold to tune to the previous lower station.
- Page 6 Portable CD Player with Bluetooth CB-M25BT Top panel DESCRIPTION ITEM Turn clockwise to raise the volume or counterclockwise VOLUME knob to lower the volume. Open the CD lid to place the CD in the disc compartment, CD lid label side up, close it to begin playback.
-
Page 7: Setting Up Your Boombox
Portable CD Player with Bluetooth CB-M25BT Setting up your boombox Connecting the AC cord Make sure that your local AC power source matches the voltage shown on the plate located on the bottom of the boombox. Insert the small connector at the end of the AC cord into the AC IN jack on the back of your boombox. -
Page 8: Disc (Audio Cd And Mp3/Wma Cd) Notes
Portable CD Player with Bluetooth CB-M25BT Disc (Audio CD and MP3/WMA CD) Notes Precautions for Playback Compact discs (CDs) with the following logo on the label surface can be used. Do not use discs designed for purposes other than audio, such as CD-ROMs for PC use. -
Page 9: Using Your Boombox
Portable CD Player with Bluetooth CB-M25BT Using your boombox Basic operatons Turning on/o the unit Press button to turn on the unit. Press the button again to return it to Standby mode. NOTES: Please wait while the unit will take 2-3 seconds to turn on. The display will light up when it is fully turned on. - Page 10 Portable CD Player with Bluetooth CB-M25BT To cancel repeat mode, press REPEAT until the OFF icon appears on the display. NOTE: Repeat function is applicable to CD/USB modes only. Playing the radio Press (Standby/ON) to turn on the boombox. Press MODE button repeatedly to select RADIO mode .
- Page 11 Portable CD Player with Bluetooth CB-M25BT Playing CDs You can play standard and 3” audio CDs, CD-Rs, and CD-RWs. CAUTION: Do not try to play DVDs, VCDs, or data CDs. You may damage your unit. Press (Standby/ON) to turn on the boombox.
- Page 12 Portable CD Player with Bluetooth CB-M25BT NOTES: • Not all USB f ash drives are supported. • Supports USB f ash drives of a maximum capacity of up to 128GB. • FAT16/FAT32 f le systems are supported (NTFS not supported).
- Page 13 Portable CD Player with Bluetooth CB-M25BT On your Bluetooth device, select “Megatek CB-M25BT” from the device list. Repeat steps 1-2 if “Megatek CB-M25BT” is not displayed. If a PIN code is requested, enter “0000”. When the Bluetooth connection has been established, a tone will sound.
- Page 14 Pair a Secondary CB-M25BT via TWS You can pair with a secondary CB-M25BT (to be purchased separately) via its built-in Wireless Stereo Pairing (TWS) technology, to enjoy true wireless stereo sound e ects with left and right sound channels separated. The two CB-M25BTs will work as one wireless stereo speaker system with one Bluetooth pairing ID only.
-
Page 15: Troubleshooting
Portable CD Player with Bluetooth CB-M25BT Troubleshooting CAUTION: Do not try to repair the boombox yourself. Doing so will invalidate your warranty. Problem Solution Your boombox will • Unplug your boombox for a few moments, then plug it not turn on. -
Page 16: Maintaining Your Boombox
Bluetooth device. • If the battery on your Bluetooth device is low, recharge the battery. “Megatek CB-M25BT” • Shorten the distance between your boombox and your Bluetooth device. does not appear on • Put your boombox into pairing mode, then refresh your my Bluetooth device. - Page 17 Portable CD Player with Bluetooth CB-M25BT Cleaning discs Fingerprints and dust on the disc can cause poor sound quality and distortion. Before playing, clean the disc with a clean cloth. Wipe the disc from the center out. Do not use strong solvents such as alcohol, benzine, thinner, commercially available cleaners, or anti-static spray intended for older vinyl records.
-
Page 18: Specif Cations
Portable CD Player with Bluetooth CB-M25BT Specif cations AC input 100-240V~ 50/60 Hz Power requirement 10 VAC, 1.0 A Radio frequency FM: 87.5-108.0 MHz Dimensions (HxWxD) 5.3 x 11.8 x 9.4 in. (13.5 x 30.0 x 24.0 cm) Power cord length 3.9 ft. -
Page 19: 12 Months Warranty
This warranty is in addition to your rights under Amazon’s return and refund policies which apply to your purchase. Megatek will provide you with your choice of a full refund or exchange (where possible) for this product if it becomes defective within the warranty period. - Page 20 Always there to support you...
Need help?
Do you have a question about the CB-M25BT and is the answer not in the manual?
Questions and answers
How do I open the CD player on the top of my gates Cd player
To open the CD player on the MEGATEK CB-M25BT, hold the area of the CD lid to open it.
This answer is automatically generated
after installing new batteries, mine still will not work from batteries
The MEGATEK CB-M25BT may not be working with new batteries due to the following reasons:
1. Incorrect Battery Installation – The device requires 4 UM-2 1.5V batteries. Ensure they are inserted correctly with the correct polarity.
2. Battery Type – If incompatible or low-quality batteries are used, the device may not function properly.
3. Battery Contacts – Check if the battery contacts are clean and free from dust or corrosion.
4. Power Source Selection – If the device is set to AC IN mode, it may not operate on battery power.
5. Defective Batteries – Even new batteries can sometimes be defective. Try replacing them with another set.
If none of these solutions work, there may be an internal issue requiring service.
This answer is automatically generated
how to make physical external speaker connection
To make a physical external speaker connection for the MEGATEK CB-M25BT, use the Headphone Jack or AUX Input on the unit. Connect an external speaker using a compatible 3.5mm audio cable:
1. Headphone Jack: Plug one end of the 3.5mm cable into the headphone jack of the CB-M25BT and the other end into the external speaker's AUX input.
2. AUX Input: If the external speaker has an AUX output, connect it to the AUX input of the CB-M25BT using a 3.5mm audio cable.
Ensure the external speaker is powered on and set to the correct input mode. Adjust the volume on both devices as needed.
This answer is automatically generated
how to connect external speaker
The MEGATEK CB-M25BT supports Wireless Stereo Pairing (TWS) to connect a secondary CB-M25BT for true wireless stereo sound. To do this:
1. Turn on the first CB-M25BT and select Bluetooth mode.
2. Repeat step 1 for the second CB-M25BT.
3. Follow the pairing instructions to connect the two units.
For wired connections, the device has an AUX IN port, which may allow connection to an external speaker using an appropriate cable.
This answer is automatically generated
