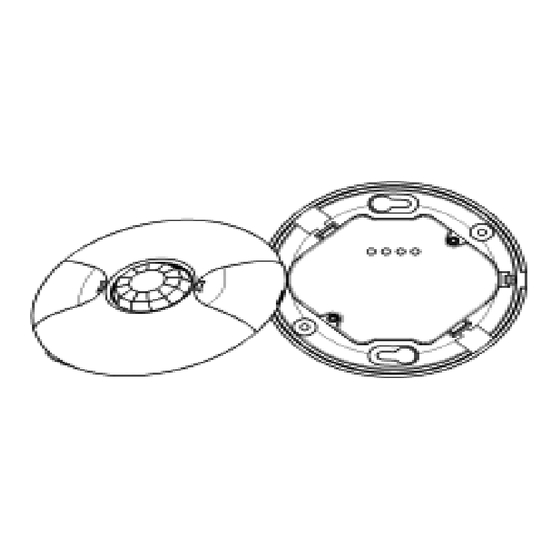

Specifications and Installation: RNET-OCC-HV-P-CM
360° Passive Infrared Line Voltage Occupancy Sensor
SPECIFICATIONS
Incandescent ........................................................................ 800W-120VAC, 60Hz
Ballast .................................................................................. 800VA-120VAC / 1600VA-277VAC, 60Hz
Resistive ............................................................................... 10A, 120VAC, 60Hz
Motor .................................................................................... 1/4 HP, 120VAC, 60Hz
Operating Temperature ......................................................... 32°F to 131°F (0°C to 55°C)
Adjustable Light Level ........................................................... 10FC—150FC
Adjustable Time Delay........................................................... 15 sec.-30min
Sensitivity Adjustment ........................................................... 50% or 100% (DIP switch 1)
Coverage .............................................................................. Up to 1200
DESCRIPTION
The RNET-OCC-HV-P-CM 360° passive infrared (PIR) occupancy sensors turn lighting systems on and off based on
occupancy and ambient light levels. The light level feature keeps lights from turning on if the ambient light level is sufficient.
The sensors can be configured to turn lighting on, and hold it on as long as the sensor detects occupancy. After no
movement is detected for a specified time the lights are switched off.
COVERAGE PATTERN
The RNET-OCC-HV-P-CM provides a 360° coverage pattern, up to 1200 square feet. The coverage shown represents
walking motion at a mounting height of 8 feet (See Figure 1). For building spaces with lower levels of activity or with obstacles
and barriers, coverage size may decrease.
th
177 Broad Street, 12
Floor, Stamford, CT 06901 T
Copyright 2017 Revolution Lighting. All rights reserved.
–
–
877 578 2536 E
Support@rvlti.com
INS008_01_20170524
ft2
rvlti.com
Page 1 of 7
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for Revolution RNET-OCC-HV-P-CM
- Page 1 Coverage ................Up to 1200 DESCRIPTION The RNET-OCC-HV-P-CM 360° passive infrared (PIR) occupancy sensors turn lighting systems on and off based on occupancy and ambient light levels. The light level feature keeps lights from turning on if the ambient light level is sufficient.
- Page 2 As a general rule, each occupant should be able to clearly view the sensor. Often the best location to install a RNET-OCC-HV-P-CM in a closed office is off-center (see Figure 2). Avoid placing a sensor directly in line with an open door through which it has a clear view out, as the sensor may detect people walking by.
- Page 3 Adjust during daylight hours when ambient light in the area is at desired level. Open the Front Cover and adjust the Light level. – – 177 Broad Street, 12 Floor, Stamford, CT 06901 T 877 578 2536 E Support@rvlti.com rvlti.com Page 3 of 7 Copyright 2017 Revolution Lighting. All rights reserved. INS008_01_20170524...
- Page 4 Tighten the two screws to secure the sensor to the J-Box. Snap the front cover onto the sensor(see Figure 6) – – 177 Broad Street, 12 Floor, Stamford, CT 06901 T 877 578 2536 E Support@rvlti.com rvlti.com Page 4 of 7 Copyright 2017 Revolution Lighting. All rights reserved. INS008_01_20170524...
- Page 5 Switches, Time Delay and Light Level to the desired settings, and replace the cover on the sensor. – – 177 Broad Street, 12 Floor, Stamford, CT 06901 T 877 578 2536 E Support@rvlti.com rvlti.com Page 5 of 7 Copyright 2017 Revolution Lighting. All rights reserved. INS008_01_20170524...
- Page 6 DIP SWITCH SETTING The RNET-OCC-HV-P-CM has 2 DIP switches under the cover. They are used to set sensitivity, vacancy mode feature settings. Sensitivity setting: DIP Switch 1 50%, sensor’s coverage is smaller, just about half of the widest range. 100%, the maximum range of sensor's coverage is 1200 square feet (see “COVERAGE PATTERN”) Vacancy Mode: DIP Switch 2 Manual ON function is achieved by using a momentary switch.
- Page 7 – – 177 Broad Street, 12 Floor, Stamford, CT 06901 T 877 578 2536 E Support@rvlti.com rvlti.com Page 7 of 7 Copyright 2017 Revolution Lighting. All rights reserved. INS008_01_20170524...
