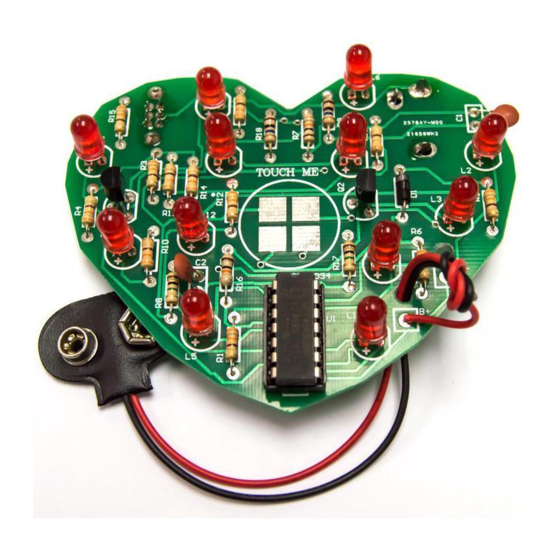

The Emotional Heart kit is a beginner soldering kit. This kit contains
a heart-shaped pcb and 12 red LEDs that flash in a random pattern.
A unique and interesting feature is in the center of the heart where
the user can touch the board to increase the flashing rate of the LEDs.
This kit would be a fun kit to play as a game. You can simulate the
finger of a girl touching the heart of a boy and see the flashing rate of
the LEDs speed up. All component parts are included with the kit.
A 9V battery is required, optional 9V/400mA wall adapter available.
