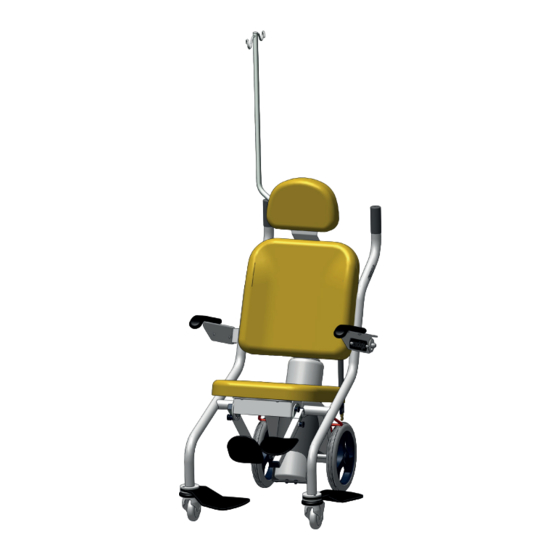

- Page 1 User Manual Model presented: 60140-01 Transfer chair 60140-01...
- Page 2 User Manual are considered to be correct at the time of 22, rue de Saint-Denis de Gastines printing. B.P. 26 - 53500 ERNÉE Cedex Promotal reserves the right to modify or declare obsolete its FRANCE models and procedures without notice. Tel:...
-
Page 3: Table Of Contents
Summary Important information Safety symbols Unpacking precautions Equipment delivered in cardboard packaging Equipment delivered unassembled Storage conditions Conditions of use Unpacking and Installation Step by step Check Remark: Authorized EC Representative Cleaning protocol Warning Cleaning/Disinfecting Intended use Authorisation to use Patient weight capacity Characteristics User instructions - Transfer chair... - Page 4 Using the coin lock Starter chain Installing the chain Using the coin lock Starter chain Installing the chain Tweegy docking station Installing the chain Installing the starter chains (ref. 50147-11 or 50147-21) on the docking station Service identification Installing the markings Note...
-
Page 5: Important Information
Important information Safety symbols Warning sign Information marked with this symbol must be read and strictly complied with! Remark Draws your attention to a procedure, practice or situation. Maximum number of Correct orientation for Humidity limitation stacked pallets transportation Atmospheric pressure Temperature limitation Fragile limitation... -
Page 6: Unpacking Precautions
Unpacking precautions Equipment delivered in cardboard packaging Compact, low-weight or Heavy, bulky equipment, requiring easily handled the use of a lifting device equipment In this case, handling is easily carried out without a In this case, use of a fork lift is possible as long as it is lifting device. -
Page 7: Check
Check that the packaging contains the device, accessories and options and the User Manual. Remark: Authorized EC Representative Within the European Union, all problems, complaints or questions should be addressed to the Authorized EC Representative of Promotal indicated below: Promotal 22, rue de Saint-Denis de Gastines 53500 Ernée,... -
Page 8: Cleaning Protocol
Any modification to the medical device without written authorization from the manufacturer is forbidden. Caution Only accessories designed and provided by Promotal for this medical device are authorised for use. Caution This medical device is not intended to be cleaned in a washing tunnel. -
Page 9: Intended Use
Tweegy should only be used by adults with the strength required to use it safely. If these instructions are not carefully followed, Promotal shall not be held liable in case of an accident. -
Page 10: User Instructions - Transfer Chair
User instructions - Transfer chair Dimensions 14,5 1026 60140-01 without accessories 60140-01 with accessories 1328 1448 2708 2228 User Manual... -
Page 11: Using The Chair
Using the chair Foot rest Use of the foot rest Braking system Using the breaking system In the case of prolonged non-use, do not leave the brakes in the locked position, to avoid deforming the wheel tyres. Arm rest Tilting the arm rest To avoid malfunctions and for safety reasons, no objects must be between the arm rest in... -
Page 12: Accessories
Only accessories designed and provided by Accessories Promotal for this medical device are authorized for use. Oxygen bottle support Spanner n°8 (reference 60145-01) Installation of the bottle support VXM18512 (x2) Installing the bottle Maximum Ø authorised : 150 mm User Manual... -
Page 13: Rotating I.v. Pole
Rotating I.V. pole (reference 50148-10) (parts supplied unassembled) Installation of the rotating IV pole RND0006 VXM59625 ECX4006 RDX2006 (x3) (x3) (x3) (x3) VXM59625 (x1) ECX1006 (x1) Spanner n° 10 Installation of the rotating IV pole (when the head rest accessory is already VXM59625 installed) (x3) -
Page 14: Using The Iv Pole
Only accessories designed and provided by Accessories Promotal for this medical device are authorized for use. Spanner n° 10 VXM59625 ECX1006 (x1) (x1) Using the IV pole To engage the IV, lift it; then pivot it by 180°. To lock it, slot it into its housing. -
Page 15: Leg Rest
Leg rest (Reference 50149-01) Installing the leg rest support VTB0625 (x2) User Manual... -
Page 16: Installing The Leg Rest In The Horizontal Position (Ph) And Inclined Position (Pi)
Only accessories designed and provided by Accessories Promotal for this medical device are authorized for use. Installing the leg rest in the horizontal position (PH) and inclined position (PI) (2 positions) Adjusting the length of the leg rest (2 positions) -
Page 17: Safety Harness
Safety harness (reference 50143-01) VXM59625 Installing the safety harness (x3) User Manual... -
Page 18: Assembly Of The Upper Part Of The Harness With Accessories
Only accessories designed and provided by Accessories Promotal for this medical device are authorized for use. Assembly of the upper part of the harness with accessories 3 assembly options, depending on the accessories acquired 1. With the head rest 2. With the IV shaft 3. -
Page 19: Coin Lock & Chain (1€ Or 1£)
Coin lock & Chain (1€ or 1£) Coin lock & Chain (tokens) (reference 60147-10) (reference 60147-20) Installing the coin lock Using the coin lock Insert a €1 (or £1) coin into the coin lock 60 147-10 (or a token into the coin lock 60147-20) and remove the key. -
Page 20: Starter Chain
Only accessories designed and provided by Accessories Promotal for this medical device are authorized for use. Starter chain (reference 50147-11) (for coin lock Ref. 60147-10 only) Installing the chain Screws + Plugs not supplied After having first marked, and then drilled, the wall at the planned location, fix the starter chain using 2 suitable screws + plugs (not supplied). -
Page 21: Tweegy Docking Station
Tweegy docking station (reference 50147-01) Installing the chain After having first marked, and then drilled, the floor at the planned location, fix the docking station using 4 suitable screws + plugs (not supplied). Installing the starter chains (ref. 50147-11 or 50147-21) on the docking station Spanner No. -
Page 22: Service Identification
Only accessories designed and provided by Accessories Promotal for this medical device are authorized for use. Service identification (reference SP) Spanner n° 10 Installing the markings VXM59616 ECX4006 RND0006 (x4) (x4) (x4) User Manual... -
Page 23: Note
Note User Manual... -
Page 24: Medical Device Lifetime
Medical device end of service life Your dealer is responsible for the recovery and end of life treatment of this device. If necessary, do not hesitate to contact Promotal. We can propose solutions to treat this equipment in the best conditions. -
Page 25: Maintenance Record
Maintenance record User Manual... -
Page 26: Warranty Information
Commitments Promotal undertakes to replace defective parts returned during the warranty period and which are found to be defective after examination by Promotal. The distributor of Promotal is responsible for after sales service during and after the warranty period. - Page 27 Promotal 22 rue de Saint Denis de Gastines 53500 Ernée – France SRN: FR-MF-000001666 declare, under our sole responsibility, that the following medical device: Commercial name: TWEEGY 60140-01 Description: Transfer chair Basic UDI-DI: 37014094TWEEGYM3 is a Class I medical device,...
