- Page 1 BUDDY PREAMP STEREO MIXER BASTL INSTRUMENTS...

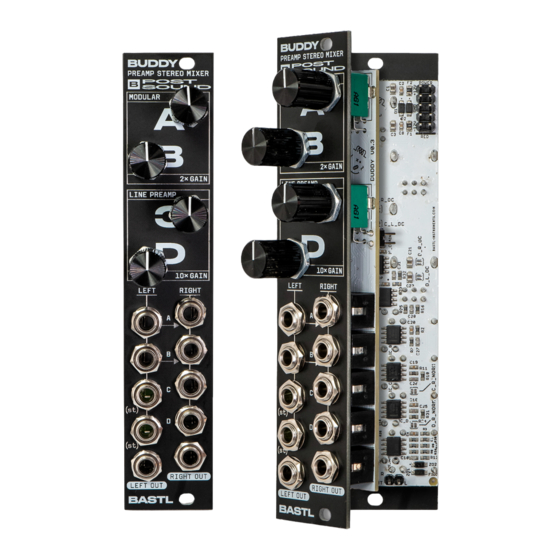

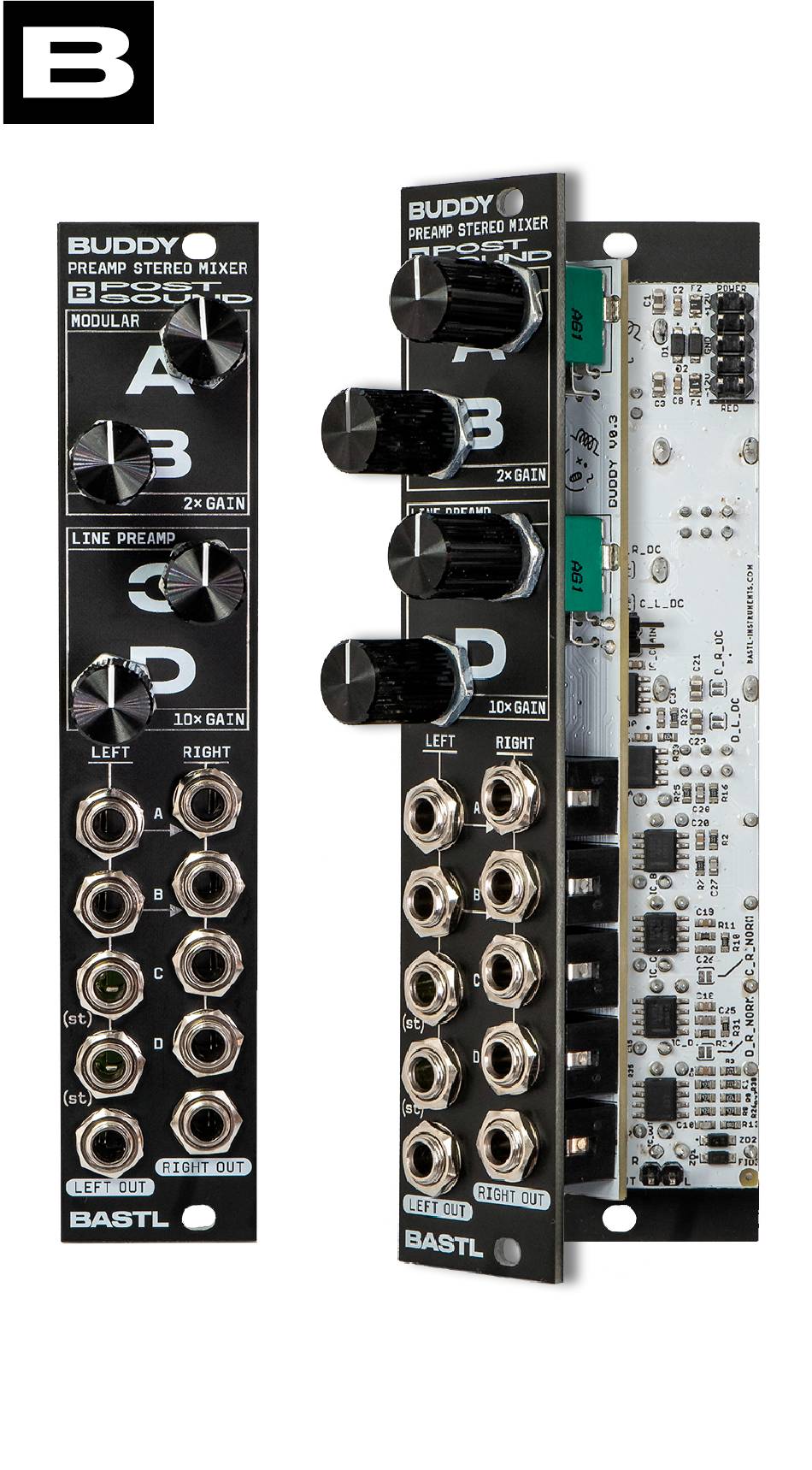

- Page 2 BUDDY Buddy is a four-channel eurorack stereo mixer optimized for hybrid setups. Channels A and B are optimized for eurorack sources (either mono or stereo) with a slight boost (×2 / +6dB). Channels C and D are line-level pre-amps that can boost the signal up to ×10 / +20dB and feature stereo TRS...
- Page 3 Use your eurorack as an effects processor! Buddy will boost your desktop gear to correct levels and be your perfect aux send mixer. Use Buddy as a stereo mixdown module for all your stereo/mono voices. Use external stereo sound processors with eurorack voices.
- Page 4 MANUAL BUDDY PREAMP STEREO MIXER MODULAR 2 GAIN LINE PREAMP 10 GAIN LEFT RIGHT RIGHT OUT RIGHT OUT LEFT OUT LEFT OUT BASTL...
- Page 5 MANUAL ! POWER ! Before connecting the ribbon cable to this module, disconnect your system from power! Double-check the polarity of the ribbon cable and that it is not misaligned in any direction. The red wire should match the -12V rail, both on the module and the bus board.
- Page 6 Several Buddy units can be chained to obtain more stereo mixing channels. Use these jumpers to connect to CHAIN_ OUT headers of the previous Buddy in the chain. Match L labeled and R labeled jumpers on both headers. Use these headers on early Buddy in the chain. Signal will be sent to these headers only when the outputs are NOT connected.
- Page 7 more info and video tutorials www.bastl-instruments.com...
