Summary of Contents for Microtronics BLE mA Link
-

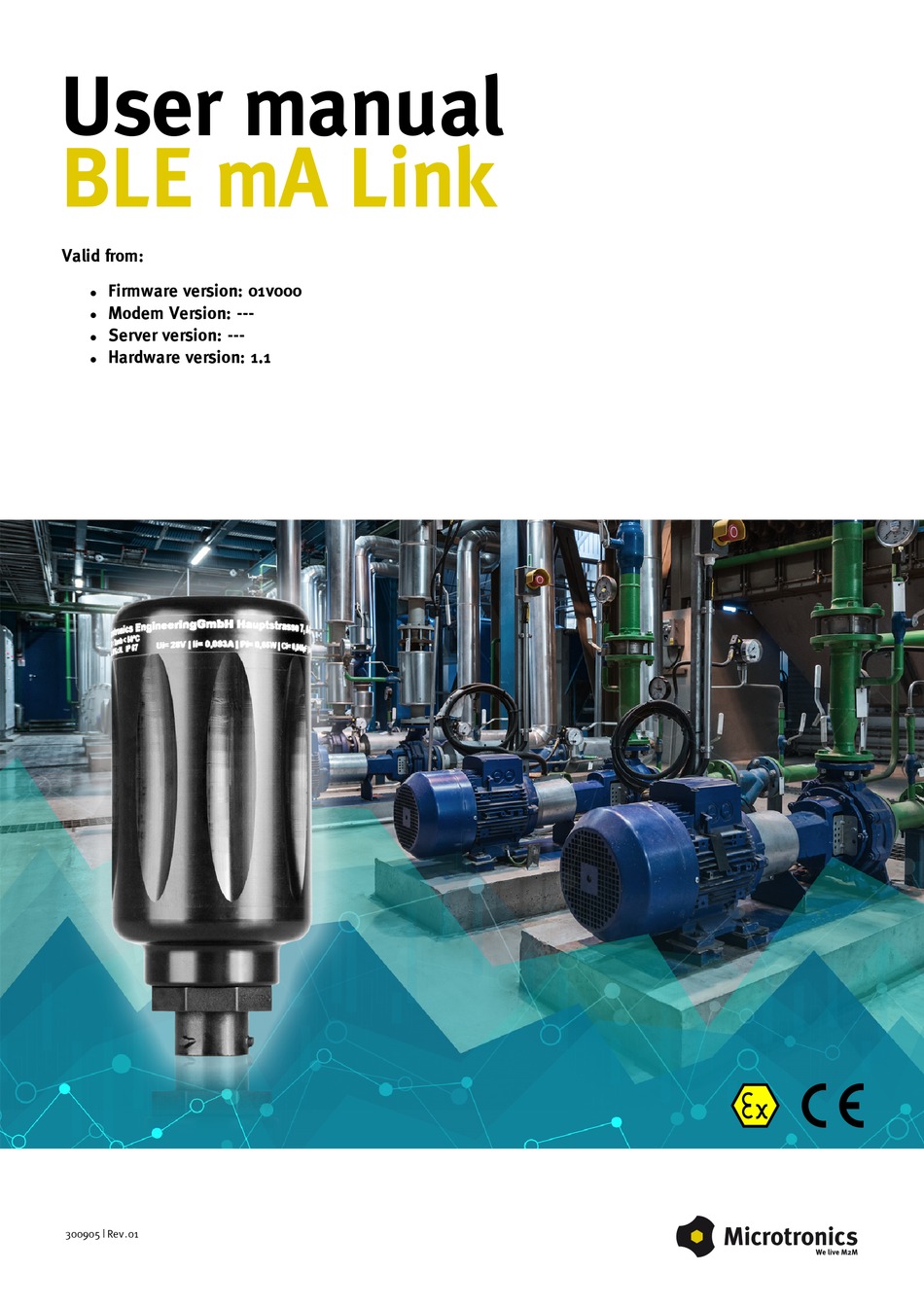

Page 1: Cover
User manual BLE mA Link Cover Valid from: Firmware version: 01v000 Modem Version: --- Server version: --- Hardware version: 1.1 300905 | Rev.01... -
Page 3: Table Of Contents
Chapter 1 Table of contents Chapter 1 Table of contents Cover Chapter 1 Table of contents Chapter 2 Declaration of conformity 2.1 Declaration of conformity - Appendix Chapter 3 Specifications Chapter 4 General specifications 4.1 Translation 4.2 Copyright 4.3 General descriptive names 4.4 Ex protection 4.5 Safety instructions 4.5.1 Use of the hazard warnings... - Page 4 6.5 Return Chapter 7 Installation 7.1 Dimensions 7.2 Installing the BLE mA Link 7.2.1 Wall mounting 7.3 Electrical installation 7.3.1 Actuator connection 7.3.1.1 Use of the clamping tube 7.3.2 Technical details about the output Chapter 8 Initial Start-Up 8.1 User information 8.2 General principles...
-
Page 5: Chapter 2 Declaration Of Conformity
Chapter 2 Declaration of conformity Chapter 2 Declaration of conformity Rev. 01... -
Page 6: Declaration Of Conformity - Appendix
2.1 Declaration of conformity - Appendix Rev. 01... -
Page 7: Chapter 3 Specifications
Chapter 3 Specifications Chapter 3 Specifications Voltage supply Battery: Li-SOCl2 cell with 1,2Ah Housing Material: POM Weight: approx. 96g Degree of protection: IP67 (all connectors inserted) Dimensions (DL): 40 x 90mm Ex certification II 3G Ex ic IIB T4 Gc Operating temperature -20...+50°C Air humidity 15...90%rH non-condensing... -
Page 9: Chapter 4 General Specifications
Chapter 4 General specifications Chapter 4 General specifications The information in this manual has been compiled with great care and to the best of our knowledge. The manufacturer, however, assumes no liability for any incorrect specifications that may be provided in this manual. -
Page 10: Ex Protection
1 BLE mA Link 4.5 Safety instructions For the connection, commissioning and operation of the BLE mA Link , the following information and higher legal regulations of the country (e.g. ÖVE), such as valid EX regulations as well as the applicable safety and accident prevention regulations for the respective application case must be observed. -
Page 11: Use Of The Hazard Warnings
Chapter 4 General specifications 4.5.1 Use of the hazard warnings DANGER: Indicates a potential or threatening hazardous situation that will result in death or serious injuries if not avoided. WARNING: Indicates a potential or threatening hazardous situation that can result in death or serious injuries if not avoided. -
Page 12: Safety And Precautionary Measures For The Bluetooth Module Installation
Do not install the device in any other way to the one described in the operating instructions. Improper use will invalidate the warranty. 4.6 Übersicht Top of the BLE mA Link Left side of the BLE mA Link 1 Pressure compensation 2 Analogue output (7-pin MIL connector) 4.6.1 Block diagram Block diagram of the BLE mA Link Rev. -
Page 13: Intended Use
28). 4.9 Device labelling The specifications in this user manual apply exclusively to the BLE mA Link device type. The type plates are located on the top and sides of the device and contain the following specifications: Type designation... -
Page 14: Installation Of Spare And Wear Parts
. In the event of unfavourable environmental conditions (e.g. low temperatures), it may occur that the battery capacity is depleted before this period of time has elapsed. Store the BLE mA Link in its original packaging. -
Page 15: Personnel Requirements
Chapter 4 General specifications In addition, the operator must comply with the local legal requirements for the safety of the personnel (accident prevention measures) the safety of the equipment (protective equipment and maintenance) the product disposal (waste disposal law) the material disposal (waste disposal law) the cleaning (cleaning agents and disposal) and the environmental protection amendments. -
Page 17: Chapter 5 Functional Principle
The portable instrument is approved for Ex zone 2 and is designed to locally issue measurement values recorded by a compatible data logger as a 4-20 mA signal. The current value being issued is transferred to the BLE mA Link via a Bluetooth connection (Bluetooth Low Energy). Compatible data logger (e.g.myDatasensH2S1000 BLE/3G ATEX ) Data logger for recording gas concentrations. -
Page 18: Calculating The Specified Current Value
5.1 Calculating the specified current value The scale of the output signal is automatically adjusted to the measurement range of the gas sensor being used. If, for example, sensor type H2S H7 (0-200 ppm) is used, a gas value of 0 ppm equates to an output signal of 4 mA. - Page 19 Chapter 5 Functional principle Output current based on gas value Rev. 01...
-
Page 21: Chapter 6 Storage, Delivery And Transport
An RMA number is mandatory for any returns and can be obtained from the Support & Service Centre (see "Contact information" on page 45). The return shipment of the BLE mA Link must occur in the original packaging and with freight and insurance paid to Microtronics Engineering GmbH (see "Contact information"... -
Page 23: Chapter 7 Installation
Important note: To prevent any damage to the device, the work described in this section of the instructions must only be performed by qualified personnel. 7.1 Dimensions Dimensions: Length and diameter 7.2 Installing the BLE mA Link Important note: Ensure installation is completed correctly. Comply with existing legal and/or operational directives. -
Page 24: Wall Mounting
(1) to the wall (see "Wall mounting - step 1" on page 24). The mounting bracket should be arranged so that the upper side of the BLE mA Link inserted in the bracket is facing the data logger from which the issued values should be received. If the position of the data logger cannot be determined accurately, it is recommended that the mounting bracket is aligned in such a way that the connection of the BLE mA Link is facing downwards. -
Page 25: Electrical Installation
Chapter 7 Installation Insert the BLE mA Link Retaining clip closed 7.3 Electrical installation Important note: Only qualified personnel should undertake the installation described in this chapter of the operating instructions to avoid any damage to the device. 7.3.1 Actuator connection Important note: Ensure installation is completed correctly. - Page 26 Connecting the actuator using the Connection cable 7-pins Actuator connection for sensors 2,8m (206.602) 1 Analogue output (7-pin MIL connector) 2 Connection cable 7-pins for sensors 2,8m (206.602) Analogue output Sensor connector Connection cable 7-pins (7-pin MIL Signal for sensors 2,8m (206.602) connector) Analogue output Loop +...
-
Page 27: Use Of The Clamping Tube
The power source supplying the current loop should therefore be switched off. Important note: If you operate the BLE mA Link in areas with a zone 1 explosive atmosphere, observe the ATEX requirements when connecting the open ends of the Connection cable 7- pins for sensors 2,8m (206.602) with your actuator (e.g. -
Page 28: Technical Details About The Output
7.3.2 Technical details about the output Note: The analogue output of the BLE mA Link is a passive, not galvanically isolated current output. Load voltage 12...24V max. load (12V/24V, 24 mA) 360Ω/860Ω 4-20mA 24mA (for error signalling) out max Schematic diagram: Connection of an actuator 1 BLE mA Link 2 Actuator incl. -
Page 29: Chapter 8 Initial Start-Up
Note: A detailed explanation of the operation (solenoid switch, display) is available in the manual of the relevant data logger. 1. Enter the serial number of the BLE mA Link that is associated with the required logger in the "Output channels" configuration section of the site (see "Output channels" on page 32). - Page 30 Based on the currently displayed value, the type designation and serial number for the relevant module are shown in the upper section of the display. If BLE paring of the data logger and BLE mA Link was not possible, error "E15" is shown on the display.
-
Page 31: Chapter 9 User Interfaces
The BLE mA Link does not have any user interfaces. Compatible data loggers can, however, display status information about the BLE mA Link on the display or via the input screen for configuring the site. The data logger is configured via the web interface on the myDatanet server; the web address is provided by your responsible sales partner. -
Page 32: Site
The string "Error" is displayed instead of the type designation 2 Serial number of the currently connected BLE module for the setpoint output 3 Date when the battery of the BLE mA Link is likely to need replacing and days remaining until this date 9.2.2 Output channels "Output channels"... -
Page 33: Chapter 10 Maintenance
(see "Return" on page 21). The remaining number of days until the battery of the BLE mA Link must be replaced is shown on the display of the data logger connected to the device (see "Display of a compatible data logger" on page 31). -
Page 35: Chapter 11 Removal/Disposal
The device includes a battery or rechargeable battery (lithium) that must be disposed of separately. Depleted BLE mA Link can also be returned to the manufacturer to be disposed of correctly (see "Contact information" on page 45). -
Page 37: Chapter 12 Troubleshooting And Repair
The capacity of the battery is virtually depleted. data logger) Check that the correct serial number was specified when linking the BLE mA Link with the data logger (see "Output channels" on page 32). The correct current value is not... -
Page 39: Chapter 13 Spare Parts And Accessories
Chapter 13 Spare parts and accessories Chapter 13 Spare parts and accessories 13.1 Data loggers Important note: Always check the specifications detailed in the manual for the relevant data logger, whether the device you have selected is approved for use in the intended environment (Ex zone). Description Quantity Order number... -
Page 41: Chapter 14 Document History
Chapter 14 Document history Chapter 14 Document history Rev. Date Changes 27.08.2018 First version Rev. 01... -
Page 43: Chapter 15 Glossary
Chapter 15 Glossary Chapter 15 Glossary NaN value The myDatanet uses special encoding to display different error statuses in the measurement values, for example. By setting a measurement value to "NaN", it is clearly marked as invalid and is thus not used for any further calculations. -
Page 45: Chapter 16 Contact Information
Chapter 16 Contact information Chapter 16 Contact information Support & Service: Microtronics Engineering GmbH Hauptstrasse 7 3244 Ruprechtshofen Austria, Europe Tel. +43 (0)2756 7718023 support@microtronics.com www.microtronics.com Microtronics Engineering GmbH (Headquarters) Hauptstrasse 7 3244 Ruprechtshofen Austria, Europe Tel. +43 (0)2756 77180 Fax. - Page 46 Certified by TÜV AUSTRIA: EN ISO 9001:2015, EN ISO 14001:2015, EN ISO 50001:2011 for myDatanet | TÜV SÜD: ATEX Directive 2014/34/EU © Microtronics Engineering GmbH. All rights reserved. Photos: Microtronics Microtronics Engineering GmbH | www.microtronics.com Hauptstrasse 7 | 3244 Ruprechtshofen | Austria | +43 2756 77180 | office@microtronics.com 300905 | Rev.01...
