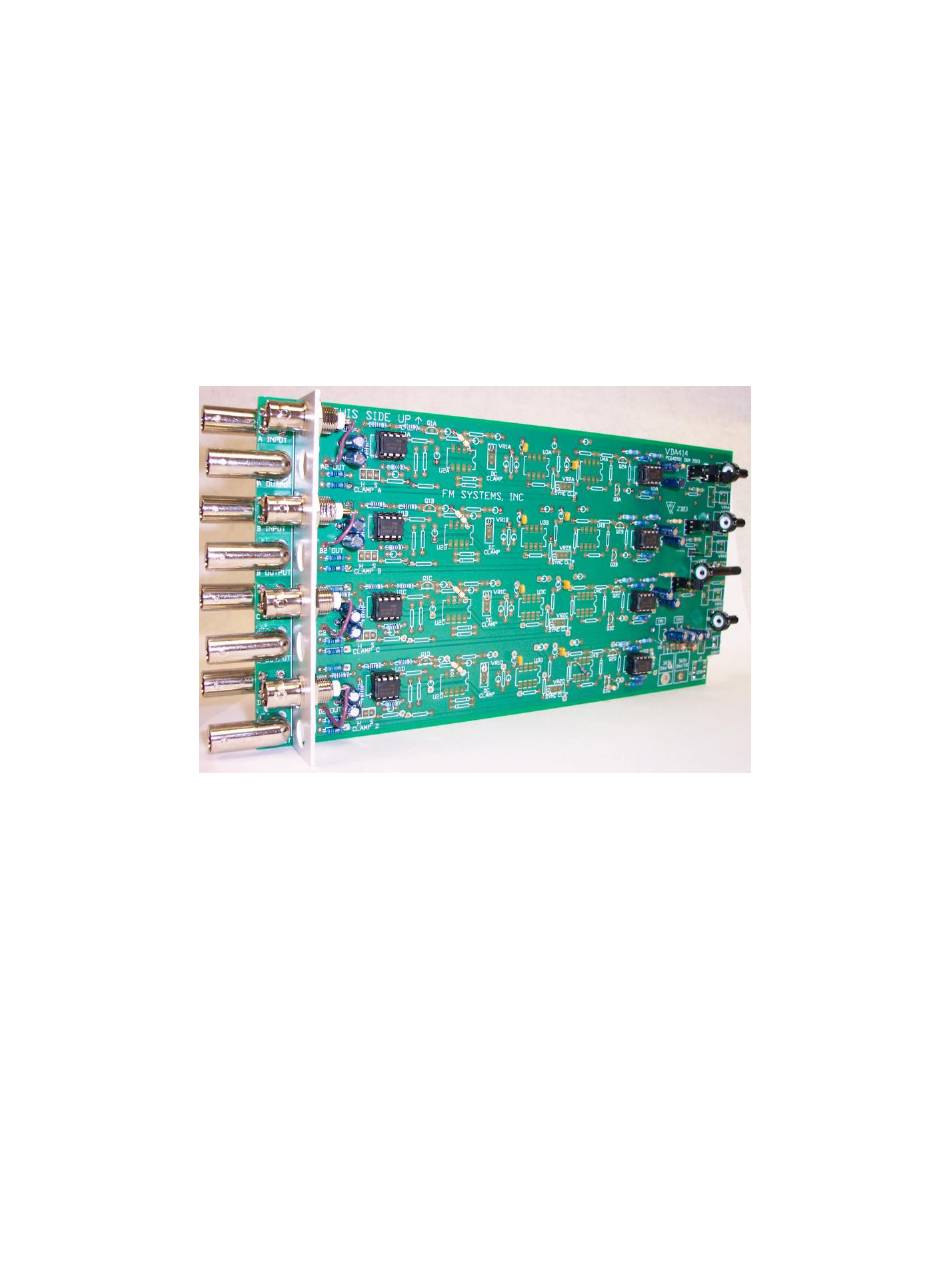

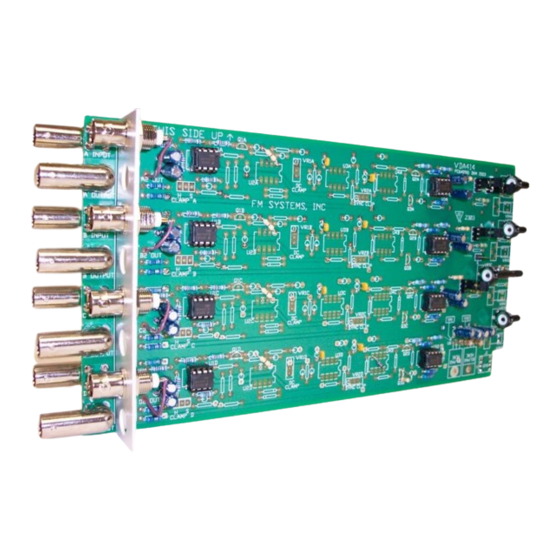

- Page 1 VDA414/C VIDEO DISTRIBUTION AMPLIFIER INSTRUCTION MANUAL IB 6409-01 COPYRIGHT ALL RIGHTS RESERVED 8-10-2003...
- Page 2 VDA414/C VIDEO DISTIBUTION AMPLIFIER TABLE OF CONTENTS PAGE SHIPPING INSPECTION HOW AND WHERE TO MOUNT THE UNIT MODUAL CARD INSTALLATION HOW TO CABLE THE VIDEO AMPLIFIER POWER SUPPLY INSTALLATION SET-UP OF THE VIDEO AMPLIFIER OPERATION OPERATION OF CLIPPER OPTION FRONT PANEL CONTROLS AND INDICATORS...
- Page 3 SHIPPING INSPECTION Remove from shipping container and inspect for shipping damage. The VDA414/C is a Slide in Card that fits into the RMS-400 Mainframe and Power Supply. The card is supplied with a retaining screw (attached Board), Front Label Designator and this instruction book. If an RMS-400 Mainframe and...
- Page 4 It supplies the card with +/- 12 VDC to power the card. SET-UP OF THE VIDEO AMPLIFIER The VDA414/C is set to unity gain 1 Volt in and 1 Volt out at the factory. A front panel Video Level control may be adjusted to set the level for optimum performance.
- Page 5 OPERATION The VDA414 Video Distribution Amplifier is used to amplify and distribute any B/W or color NTSC, PAL, or CCTV video signal. The unique design allows the user to change the inputs and output to make any of the following amplifier configurations. SELECTABLE USER CONFIGURATIONS: INPUTS OUTPUTS...
- Page 6 A B C D CARE AND MAINTENANCE OF THE UNIT Care should be taken not to subject the VDA414/C to extreme moisture or temperatures outside normal operating range. There are no periodic maintenance adjustments to be made on the VDA414/C other than the front panel video level set control and Clipper control if you have the VDA414C option.
