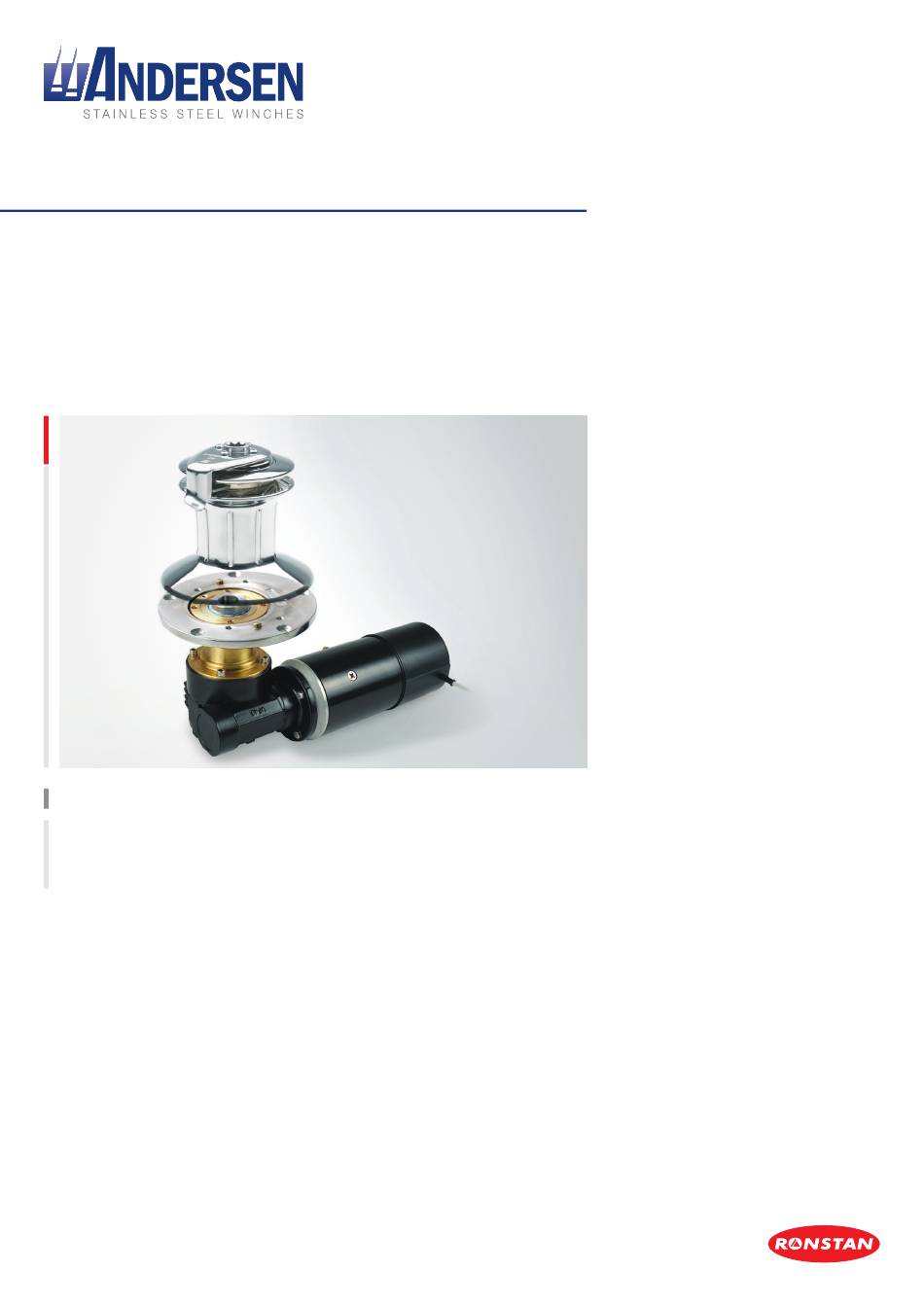

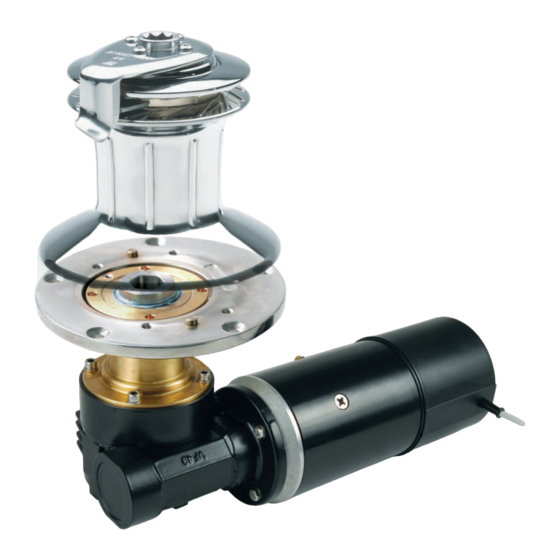

- Page 1 PRODUCT MANUAL E1 Single Speed Electric Motor Unit, 12V & 24V To Suit Self-Tailing Winch Sizes 52 FOR USE WITH • RA2052001300 • RA2052001400 • RA2052011300 • RA2052011400 • RA2052211300 • RA2052211400 Serial No.: PS______________________ Winch versions: 52 (V.3.0 > ) RON-WPM-710477-E1-52ST-Rev.4...
-
Page 2: Table Of Contents
To Suit Self-Tailing Winch Sizes 52 CONGRATULATIONS You have purchased a high quality ANDERSEN Stainless Steel Winch It is a result of more than 60 years of experience and expertise in producing winches for sailboats. This winch offers a high level of performance and functionality, and will provide many years of safe and easy sail handling. -
Page 3: Motor Unit Included Components
E1 Single Speed Electric Motor Unit, 12V & 24V To Suit Self-Tailing Winch Sizes 52 Please read this product manual & the relevant winch manual fully before installation or operation. FEATURES • Highest quality winch featuring a stainless • High quality European engineered and steel drum for ultimate durability and style, manufactured motor, with matched gearbox vertical Power Ribs ™... -
Page 4: Assembly Exploded View
E1 Single Speed Electric Motor Unit, 12V & 24V To Suit Self-Tailing Winch Sizes 52 EXPLODED VIEW 52 ST E1 SINGLE SPEED 12V/24V * When supplied as an E1 Electrical Motorised Winch, this gear wheel will already be fitted inside the winch. The gear wheel has a hexagonal section that protrudes from the winch base to engage in the motor unit drive shaft. -
Page 5: Parts List
E1 Single Speed Electric Motor Unit, 12V & 24V To Suit Self-Tailing Winch Sizes 52 PARTS LIST 52 ST E1 SINGLE SPEED 12V/24V ITEM NO. DESCRIPTION PART. NO. Motor E1 1500W 12V incl PLIM 777420 Motor E1 1500W 24V incl PLIM 777430 Gear box VF-EP 49 i=36 P71 B14 776220... -
Page 6: Installation Instructions
E1 Single Speed Electric Motor Unit, 12V & 24V To Suit Self-Tailing Winch Sizes 52 INSTALLATION INSTRUCTIONS STEP 1 - Positioning the winch and motor unit • Position the winch drilling template [A3] in the required position on the deck, ensuring that there is adequate flat space for the deck plate/ winch base. - Page 7 E1 Single Speed Electric Motor Unit, 12V & 24V To Suit Self-Tailing Winch Sizes 52 INSTALLATION INSTRUCTIONS STEP 3 *Note: It is extremely important that the motor is aligned correctly with the winch. Non-aligned motors will be noisy and gear wear will be accelerated. *Note: It is important that two or more people are involved with Step 3.
- Page 8 E1 Single Speed Electric Motor Unit, 12V & 24V To Suit Self-Tailing Winch Sizes 52 INSTALLATION INSTRUCTIONS STEP 4 *Note: The push button [A1] requires 25mm depth clearance the behind mounting surface. The push button is supplied with 500 mm (19 5/8”) of cable and the motor unit with 1400 mm (55 3/16’’) of control cable.
-
Page 9: Wire, Circuit Breaker & Battery Capacity Requirements
E1 Single Speed Electric Motor Unit, 12V & 24V To Suit Self-Tailing Winch Sizes 52 INSTALLATION INSTRUCTIONS STEP 5 • Connect wires from push button to wires from motor unit as per electrical connection diagram p10 Detail A. STEP 6 • Measure the total wire run distance from the battery to the motor unit and back to the battery. -
Page 10: Electrical Connection Diagram
E1 Single Speed Electric Motor Unit, 12V & 24V To Suit Self-Tailing Winch Sizes 52 ELECTRICAL CONNECTION DIAGRAM 52 ST E1 SINGLE SPEED 12V/24V Positive (+) motor terminal must be connected to Positive (+) battery terminal. PUSH BUTTON Negative (-) motor terminal must be connected to Negative (-) battery terminal. -
Page 11: Troubleshooting
E1 Single Speed Electric Motor Unit, 12V & 24V To Suit Self-Tailing Winch Sizes 52 TROUBLESHOOTING E1 IN-BUILT SYSTEM PROTECTION The E1 Electric Motor Unit has a very high level of in-built system protection, via monitoring of various operating parameters, its integrated controller and other protection/control componentry. This functionality includes: • Reverse polarity protection • Mechanical overload protection... - Page 12 • 7 Flashes Max relay cycles reached. The motor relay has been activated 20,000 times and will need to be replaced to ensure continued safe operation. Contact Ronstan or your local Andersen Winches distributor for advice.
-
Page 13: Service & Maintenance
To access the Sealing Ring [7], it is necessary to remove the winch from the winch base. Refer to the Winch Product manual for instructions. The Sealing Ring should be lubricated with a grease such as Klüber ISOFLEX TOPAS NB 52, or Andersen Winch Grease. Drive shaft Sealing Ring... -
Page 14: Installation Dimensions - Size 52
E1 Single Speed Electric Motor Unit, 12V & 24V To Suit Self-Tailing Winch Sizes 52 INSTALLATION DIMENSIONS SIZE 52 NOT TO SCALE Ø100mm (3 15/16”) Ø100mm (3 15/16”) Ø200mm (7 7/8”) Ø100mm (3 15/16”) Ø200mm (7 7/8”) Ø200mm (7 7/8”) 65mm 350mm (2 9/16”) -
Page 15: Drilling Template - Size 52
E1 Single Speed Electric Motor Unit, 12V & 24V To Suit Self-Tailing Winch Sizes 52 DRILLING TEMPLATE SIZE 52 NOT TO SCALE PART.NO. RD 100213 DRILLING TEMPLATE ANDERSEN 52 ST E 1 38.3mm (1 1/2”) -
Page 16: Safety Notices
Safety Notice Sheet and the Product Manual. Stay Alert When Operating Andersen winches are very powerful and have the potential to cause significant damage and/or serious injury if used improperly or without due caution and vigilance. Operators Must be Trained... - Page 17 E1 Single Speed Electric Motor Unit, 12V & 24V To Suit Self-Tailing Winch Sizes 52...
-
Page 18: Worldwide Distribution And Service
PRODUCT MANUAL E1 Single Speed Electric Motor Unit, 12V & 24V To Suit Self-Tailing Winch Sizes 52 WORLDWIDE DISTRIBUTION & SERVICE Visit www.andersenwinches.com WARRANTY Visit www.andersenwinches.com...
