Summary of Contents for Genebre 5975

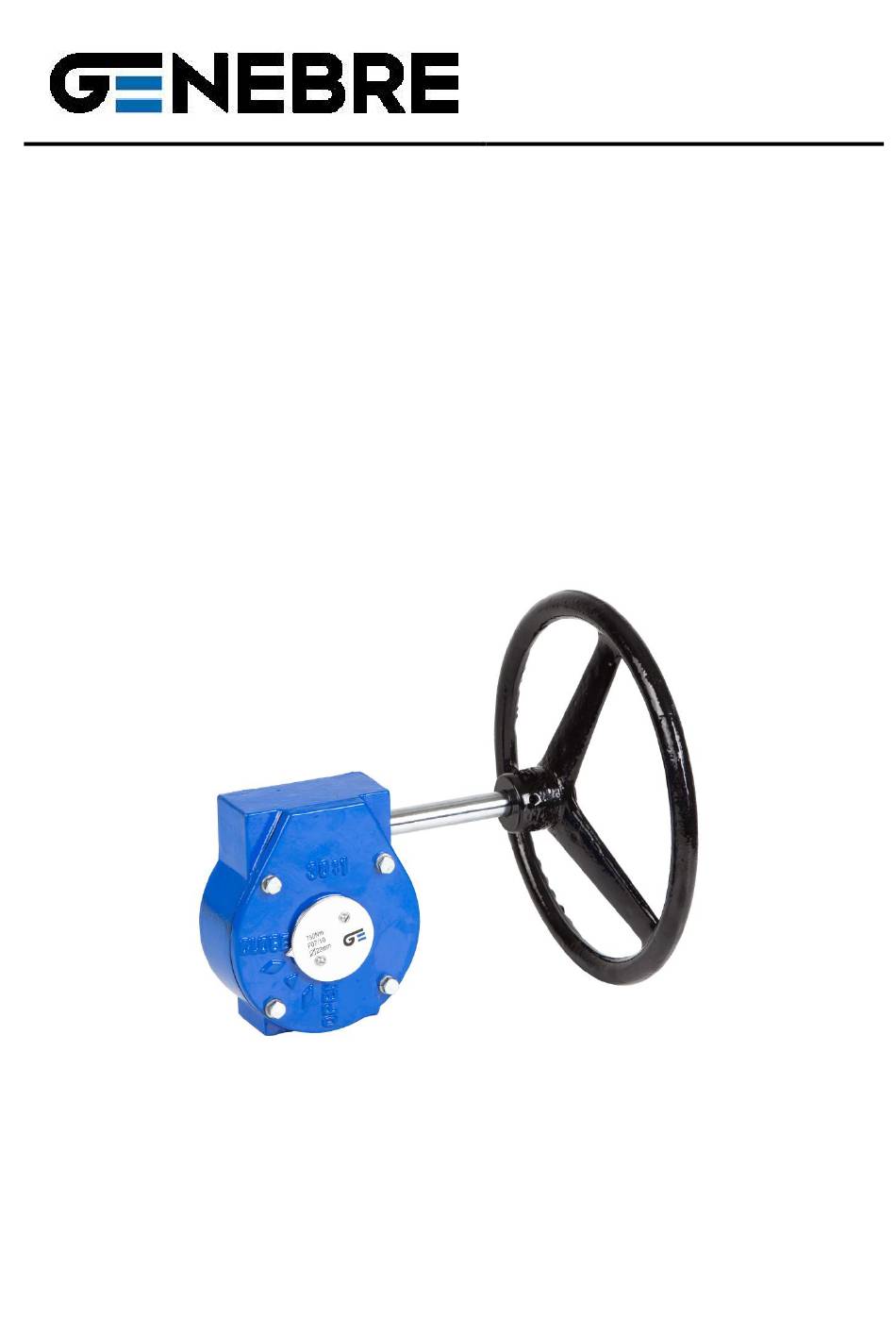

- Page 1 Genebre Building. Av. de Joan Carles I, 46-48 08908 L'Hospitalet de Llobregat. Barcelona (Spain) genebre@genebre.es - www.genebre.es INSTALLATION, OPERATION AND MAINTENANCE MANUAL Manual Gear Operator GENEBRE Ref.: 5975-5976-5977-5978 GENEBRE S.A. LAST UPDATE: 15/07/2020 UPDATE NUMBER: 2...
- Page 2 Genebre Building. Av. de Joan Carles I, 46-48 08908 L'Hospitalet de Llobregat. Barcelona (Spain) genebre@genebre.es - www.genebre.es Installation, operation and maintenance instructions 1) ASSEMBLY DRAWING ................... 3 1.1) P ........................ 4 2) STORAGE ........................4 3) INSTALLATION INSTRUCTIONS ................ 4 3.1) P...
- Page 3 Genebre Building. Av. de Joan Carles I, 46-48 08908 L'Hospitalet de Llobregat. Barcelona (Spain) genebre@genebre.es - www.genebre.es 1. Assembly drawing 1.1 Parts list Nº Name Material Surface Treatment HOUSING CAST IRON PAINTED SEALING RING ------- STEEL ------- WORM STEEL -------...
- Page 4 Genebre Building. Av. de Joan Carles I, 46-48 08908 L'Hospitalet de Llobregat. Barcelona (Spain) genebre@genebre.es - www.genebre.es 2. Storage During storage it is recommended to keep the Gear Operator in the same position as delivered, with the included protective wrapping to avoid damages or dirt accumulation. The wrap must not be removed until the operator is to be installed.
- Page 5 Genebre Building. Av. de Joan Carles I, 46-48 08908 L'Hospitalet de Llobregat. Barcelona (Spain) genebre@genebre.es - www.genebre.es The procedure simply consists on checking that the valve is fully open in Open position and fully closed in Close position. Adjust the Regulating Screws as much as necessary (between the range of adjustment) and put the screws (part.
- Page 6 Genebre Building. Av. de Joan Carles I, 46-48 08908 L'Hospitalet de Llobregat. Barcelona (Spain) genebre@genebre.es - www.genebre.es In case the valve can't completely achieve Open or Close positions, first try to find out the reason of malfunction to prevent further damage. Do not attempt to force the handwheel beyond the stop limits.
- Page 7 Genebre Building. Av. de Joan Carles I, 46-48 08908 L'Hospitalet de Llobregat. Barcelona (Spain) genebre@genebre.es - www.genebre.es Dimensions (mm) Ref. S x S 5975 17 X 17 F 07 F 05 5976 22 X 22 F 10 F 07 M 10...
