CPAT FLEX
DSG1 Lite
User Manual
v 1.3 / 2020.07.01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CPAT FLEX DSG1 Lite and is the answer not in the manual?

Questions and answers

Related Manuals for Effigis CPAT FLEX DSG1 Lite

Summary of Contents for Effigis CPAT FLEX DSG1 Lite

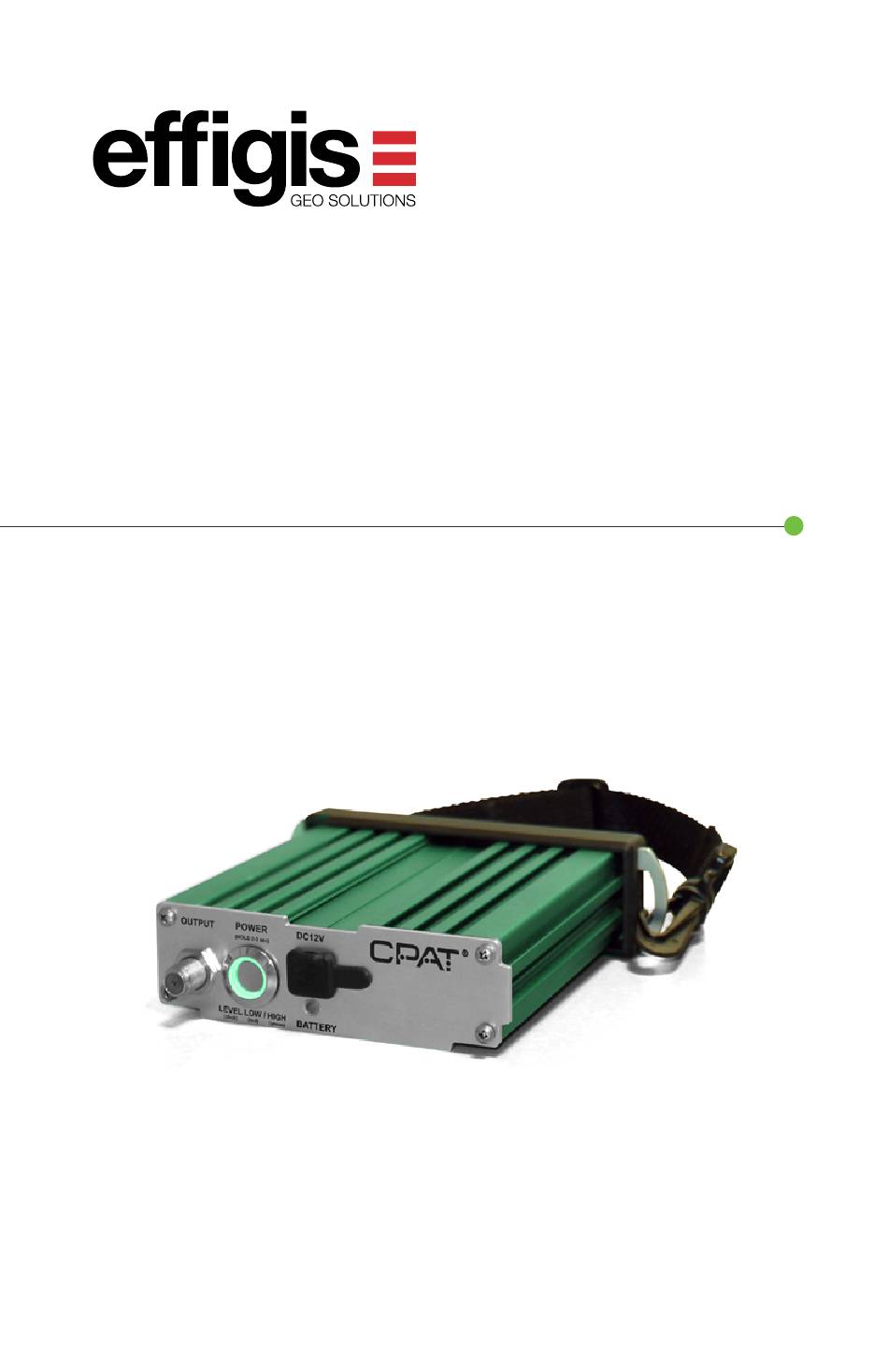

  • Page 1 CPAT FLEX DSG1 Lite User Manual v 1.3 / 2020.07.01...
  • Page 2 Effigis reserves the right to make changes without notice. Changes affecting the operation of any component in this manual will be reflected in a subsequent revision. Effigis assumes no responsibility for any omissions or errors that may appear in this document or for any damages that may result from the use of information contained herein.

  • Page 3: Table Of Contents

    1.6 Effigis Web Site ........
  • Page 4 Appendix B – Our Services ......14 B.1 Customer Support ........14 B.1.1 Equipment Return Instructions .

  • Page 5: General Information

    1. General Information 1.1 About this Manual This manual describes the components, installation and operation of the CPAT FLEX DSG1 Lite unit. You will find important safety information in this manual. We strongly recommend that all users read this manual. Use of this product other than for its intended application may compromise the unit’s safety features.

  • Page 6: Note

    Solutions Inc. may void the authority granted to the user by the FCC to operate this equipment. 1.4 Technical Support The Effigis Technical Support Service is available from Monday through Friday from 9:00 AM to 5:00 PM Eastern Time. Toll free from U.S. and Canada: + 1-888-495-6577...

  • Page 7: System Components

    Your DSG1 Lite unit is charged and ready to use right out of the box. Upon delivery, visually inspect each item for any damage that may have occurred during shipping. If you see any signs of physical damage, please contact Effigis at: • Callers from the U.S. and Canada can dial + 1-888-495-6577 (toll-free number).

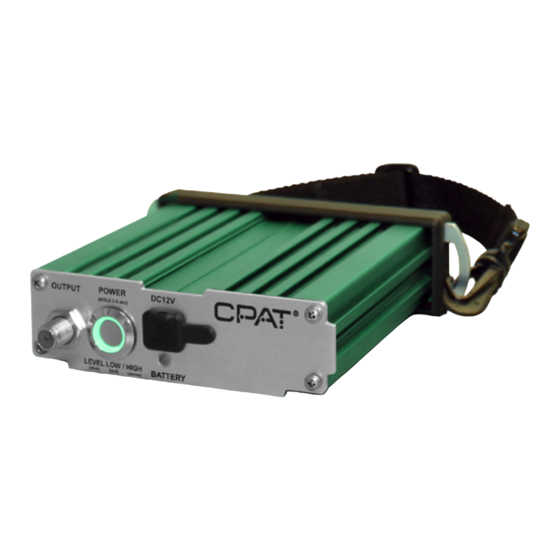

  • Page 8 DSG1 Lite - Portable Signal Generator 110-00005-001 DSG1 Lite AC/DC adapter 100-00010-001 DSG1 Operation Manual (this manual) 110-00010-001 +12 VDC power supply 113-00005-001 DSG1 Lite Strap To order, please contact Effigis at + 1-888-495-6577 or + 1-514-495-0018 CPAT FLEX DSG1 Lite User Manual...

  • Page 9: Setup

    3. Setup The DSG1 Lite uses fixed frequencies and tagged modulation. The table below details the operational parameters of DSG1 Lite: Band Parameter Values Frequency 126 MHz Mode AM 32 Hz Output level 50 dBmV (High) 30 dBmV (Low)
  • Page 10 Harmonics levels based on 126 & 612 MHz at 50 dBmV NOTE A pad may be required at the output of the DSG1 Lite, especially if there is some active equipment connected to the cable drop feed (set-top box, cable- modem, etc.).

  • Page 11: System Operation

    4. System Operation 4.1 Power On To power the DSG1 Lite, press the power button on the front panel, and then release it. You should see the power LED (surrounding the power button) and the battery LED turned on.

  • Page 12: System Maintenance

    1. Only use or replace battery packs provided by Effigis. 2. Only use or replace chargers provided by Effigis. The DSG1 Lite status LED will turn green when the battery pack is fully charged. 3. Charge the DSG1 Lite at room temperature. Do not charge the unit in a physical location where temperature extremes occur during charging.

  • Page 13: Appendix A - Specifications

    Appendix A – Specifications A.1 System Specifications Modulator type Dual-band digital signal modulator Output type Single “F” 75 Ohm female connector Frequency output 1 of 2 Fixed at 126 MHz (Mid-band) Frequency output 2 of 2 Fixed at 612 MHz (LTE-band) Frequency stability ±5 kHz...

  • Page 14: Physical Specifications

    40°C (104°F). Appendix B – Our Services Effigis offers a portfolio of services to deploy and support purchased equipment through its Customer Support organization. Customer Support is standard with every product sale and consists of a phone technical support during business hours, repair and calibration center.

  • Page 15: Limited Product Warranty

    The customer should clearly mark the Effigis’s issued RA or reference number on the outside of the package and ship it prepaid and insured to Effigis. Equipment repaired or replaced under warranty will be returned at Effigis’s expense to Customer (Canada/USA) or Effigis’s representative (all other countries).

  • Page 16: Exclusions

    (Limited Warranty), and actually fails during the applicable warranty period and under normal use, Effigis shall, at its sole discretion, (i) repair or replace the non-conforming Product to remedy the nonconformity identified by the Customer in accordance with this Section (Limited Product Warranty);...

  • Page 17: Disclaimer

    THE REMEDIES EXPRESSLY PROVIDED IN THIS SECTION WILL BE THE CUSTOMER’S SOLE AND EXCLUSIVE REMEDIES AND SHALL BE IN LIEU OF ANY OTHER RIGHTS OR REMEDIES THE CUSTOMER MAY HAVE AGAINST EFFIGIS WITH RESPECT TO ANY NON-CONFORMANCE OF PRODUCTS. EXCEPT AS SPECIFIED IN THIS LIMITED PRODUCT WARRANTY, EFFIGIS MAKES NO EXPRESS REPRESENTATIONS OR WARRANTIES WITH REGARD TO ANY PRODUCT.
  • Page 18 CPAT FLEX DSG1 Lite User Manual...
  • Page 19 CPAT FLEX DSG1 Lite User Manual...
  • Page 20 Published by Effigis 4101 Molson St., Suite 400 Montreal, Quebec CANADA H1Y 3L1 www.effigis.com 1-888-495-6577 © 2020 Effigis. All rights reserved | 006-000063-104...
