6.3.4

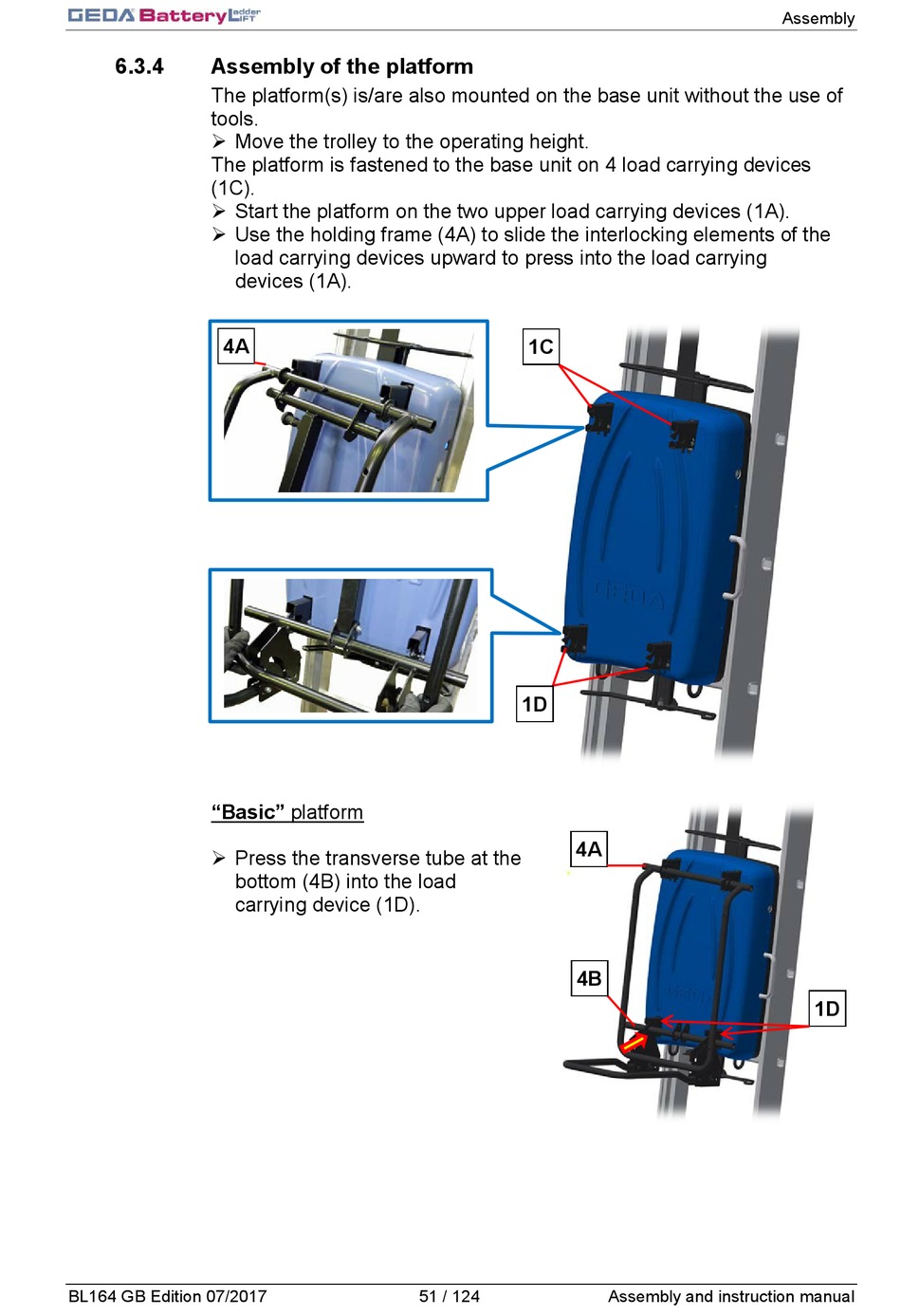

Assembly of the platform

The platform(s) is/are also mounted on the base unit without the use of
tools.
 Move the trolley to the operating height.
The platform is fastened to the base unit on 4 load carrying devices
(1C).
 Start the platform on the two upper load carrying devices (1A).
 Use the holding frame (4A) to slide the interlocking elements of the
load carrying devices upward to press into the load carrying
devices (1A).
4A
"Basic" platform
 Press the transverse tube at the
bottom (4B) into the load
carrying device (1D).
BL164 GB Edition 07/2017
1C
1D
4A
4B
51 / 124 Assembly and instruction manual
Assembly
1D
