Summary of Contents for Shiseido actiMirror

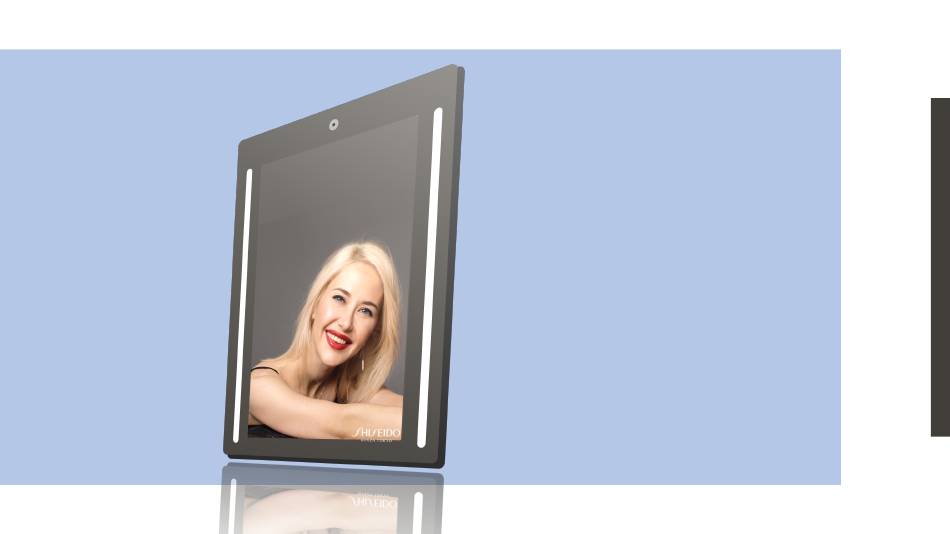

- Page 1 Visualizer 21inch actiMirror QUICK MANUAL NEW SKIN DEVICE Spring 2021...
-
Page 2: Included Items
Cardboard Cardboard （Small） （Large） Smart Mirror 1. Top Housing Screws for Top housing ü Top Housing installed USB Cover ü Top Housing angle fixed INCLUDED ITEMS ü Cover for mirror side installed to the mirror ü 2 USB cable inside Top Housing ü... -
Page 3: Installation
Legs Installation Top Housing Installation INSTALLATION GUIDE Power connection, LAN connection, Please follow the steps for installation USB connection USB cover and Power cover Installation Please scan the QR code with your smartphone to access the video for installation LAN / Wi-Fi Setting Time Zone Setting... -
Page 4: Legs Installation
Install Legs with supplied screws Installation Guide LEGS INSTALLATION... - Page 5 Remove the two screws from the mirror ！ Removed screws are not needed Installation Guide TOP HOUSING Install Top housing with supplied screws INSTALLATION ！ Use screw holes according to the mirror size Location of screw holes Plug the cable inside the USB cover.
-
Page 6: Power Connection
connection Installation Guide POWER, LAN, USB CONNECTION Chook for Power power cord connection connection Please make sure each USB is connected to the correct location. Use the sticker color as indication (blue-blue and red-red) - Page 7 Place the USB Cover and push the plunger in. Installation Guide USB COVER AND POWER COVER Place the Power Cover and INSTALLATION push the plunger in. Plunger...
-
Page 8: Status Check
Status Check Wi-Fi Setting LAN Setting Connected： Internet connection available Installation Guide LAN/WI-FI SETTING Settings for connecting to the internet. Offline： Internet connection NOT available Without internet connection, the skin diagnostic service will not be available Please turn OFF Wi-Fi if using LAN connection *Please contact with your system administrator if you have any troubles for Wi-Fi and LAN setting. -
Page 9: Time Zone Setting
Installation Guide TIME ZONE SETTING Project Confidential... -
Page 10: Application Flow
APPLICATION FLOW Application will start • Language Selection. • Select up to two current • Select up to one current • Blood Circulation upon pressing power ON • Press ʻGet Startedʼ to personal skin concerns. personal skin concerns Questions button of the mirror. • Rough & dehydrated, • -Fingertips of hands and start skin diagnostic around eyes. - Page 11 APPLICATION FLOW Gender Selection Age Selection Location Selection Selfie Guidance...
- Page 12 APPLICATION FLOW Press ʻCAPTUREʼ to take a Countdown Analyzing Selfie Confirmation Beauty Circulation Image selfie for skin analysis...
- Page 13 APPLICATION FLOW Radiance Results Resilience Results Smoothness Results When the temperature is uniform Results and Color: Results and Color: ⇒Good Beauty Circulation Power Excellent(0-0.4) White Excellent(0-0.4) blank/no color Good(0.4-0.7) Blue Good(0.4-0.7) White When the temperature is NOT uniform Ok(0.7-1.0) Orange Ok(0.7-1.0) ⇒Poor Beauty Circulation Power...
- Page 14 APPLICATION FLOW Recommended Products to be displayed 1. UTM (for everyone) 2. 2 Moisturizer (according to Ultimate triangle score) 3. Specialty item: 2 items for Face (according to skin concerns.) 4. 1 item for Eye (according to eye skin concerns.)
- Page 15 APPLICATION FLOW Scan QR code with your Forward the result to smartphone. your smartphone Already have an account of Shiseido QR code screen Forward only result without an account...
- Page 16 The mirror does not turn ON after pressing the power ON button. There is camera error during skin analysis. Ø Please confirm the power supply is plugged into the outlet. Ø Please confirm the USB cable is connected to the mirror. Ø...
-
Page 17: Safety Precautions
SAFETY PRECAUTIONS Warnings Caution ●Do NOT place any object on top of the product or ride on the product. ●Do NOT use a power supply other than 100-240V. ●Turn OFF the mirror and unplug the power cord from the outlet immediately if there is smoke, strange odor/noise or unusual heat. ●Do NOT use the product with wet hands. If you continue to use, there is a risk of fire, burns and electric shock. ●Do NOT damage, forcibly bend, pull, twist, place heavy objects on, pinch, process or ●Unplug the power cord from the outlet immediately if you feel a chattering sensation wrap the cord around the product. when touching the product. If you continue to use, there is a risk of fire, injury and electric shock. ●Please be careful not to pinch your fingers when installing or moving the product. ●Turn OFF the mirror and unplug the power cord from the outlet immediately if the ●Do NOT scratch the glass surface with sharp objects. product is deformed, cracked or damaged. If you continue to use, there is a risk of fire, injury and electric shock. ●Do NOT use or store the product in the following places. There is a risk of malfunction. ●Do NOT use the product if the power cord or plug is damaged or if you feel the plugging is loose. Dusty places, places subject to shocks and vibrations, unstable places, near heating If you continue to use, there is a risk of fire, injury and electric shock. equipment, near magnetic objects (fans, large speakers), places exposed to direct sunlight for long time, places where there is a possibility of falling, places subject to moisture and ●Do NOT pull the cord when unplugging the power cord from the outlet. humidity, near chemicals and liquids, places subject to heat, places subject to corrosive The power cord may be damaged and there is a risk of fire and electric shock. gases (ozone gas, etc.), places subject to bumping due to heavy traffic, places where infants and pets can reach, near flammable objects, outdoors. ●Do NOT modify or disassemble the product. There is a risk of electric shock, fire and rupture. ●Do NOT use the product in a place where it will be exposed to water or high humidity. ●Do NOT throw this product into a fire, heat it, or short-circuit the terminals. ●Do NOT wash this product or the power adapter in water. There is a risk of heating, ignition and rupture. ●Do NOT wet this product or the power adapter. ●Do NOT block the air vents of the product.
