Anadigm Servenger PAM-5002R Series Quick Start Manual

Programmable analog module

Ser venger

www.ser v enger.com

Programmable Analog Module

Obtaining the AnadigmDesigner

To get a Trial copy of the software:

Step 1. Go to www.anadigm.com and click on the

FREE SOFTWARE DOWNLOAD

Step 2. A typical web account registration process will start. Enter a UserID and Password to use the

website and download AnadigmDesigner

registration, download and save the software. Anadigm will email a License ID and License Key.

Step 3. Double click on the saved Setup file to start the installation process. A typical Install Wizard will

appear. Use the web account information and

License Key if available from Anadigm. The Install Wizard will conclude with a check box to

Launch AnadigmDesigner2

Quick Start Guide

Look for this

. Click

PAM-5002R Series

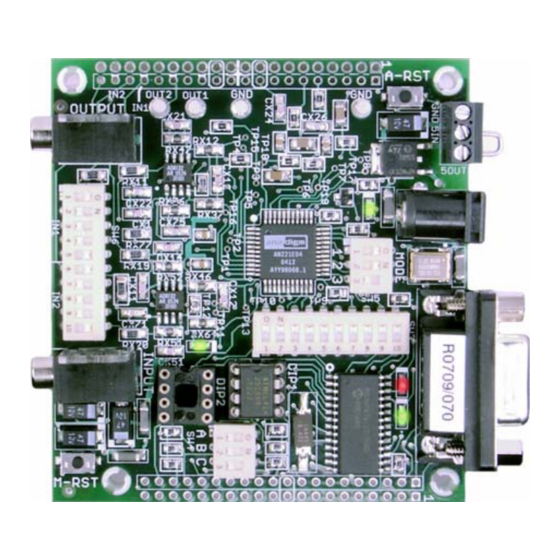

• Fully supported Anadigmvortex

Programmable Analog Signal Processor

• 6 analog inputs and 3 outputs

• On-board +/- 5V power supplies

• RS-232 serial interface to host

• Operates from host computer or EEPROM

• Fully compatible with AnadigmDesigner2

CAD software (available free from Anadigm)

• Use for engineering demos or install as a

system module in a larger product

• Ideal for university level electrical

engineering classes and projects

• Instructional materials from Servenger

website or Pearson/Prentice-Hall

2 software and installing on a PC:

button.

2. Save the account information, complete the

Trial

as the License Key or the full License ID and

Finish

Table of Contents

Need help?

Do you have a question about the Servenger PAM-5002R Series and is the answer not in the manual?

Page 1 Step 3. Double click on the saved Setup file to start the installation process. A typical Install Wizard will appear. Use the web account information and Trial as the License Key or the full License ID and License Key if available from Anadigm. The Install Wizard will conclude with a check box to . Click Launch AnadigmDesigner2 Finish...
Page 2 Setting up the Programmable Analog Module (PAM) for AnadigmDesigner2: Needed: • AnadigmDesigner2 (referred to as “AD2”) computer aided ® design (CAD) software installed on a Microsoft Windows based PC. Looks like this when running • DB-9 RS-232 Serial Cable (see Advisories on last page about USB-to-Serial adapters).
Page 3 Creating and downloading a sample audio signal source: Step 1. Every time AD2 starts up a small window will appear asking which Anadigm chip to use. Look at the small lettering in the center of the space above the square design area window which should say AN221E04.
Page 4 The configuration file stored in the EEPROM to create the 440 Hz Tuning A will be immediately loaded into the Anadigm IC and the tone will appear at the speakers. This process will repeat after every power up and after the Analog Reset pushbutton is pressed and released.
