Introduction
The VEX100-18G-KIT offers the very best in extender performance and flexibility. This industry-leading 4K HDBaseT™
solution delivers HDMI with HDCP 2.2 support, Bi-directional IR, RS-232 and PoC up to lengths of 100m over a single
CAT cable. The VEX100-18G-KIT also provides installers the ability to extend the control network without the need for
additional cables.
Features
•
Advanced HDBaseT™ technology offering uncompressed video and audio with zero latency
•
Supports 4K UHD video up to 70m (Full 3840 x 2160 @50/60Hz 4:4:4 resolution) and 1080p up to a distance of 100m
over single CAT cable
•
Supports ARC (Audio Return Channel) from connected display via HDMI or optical digital inputs
•
Supports Bi-directional IR from all input and output locations and Bi-directional RS-232 pass through
•
Supports all known HDMI audio formats including Dolby TrueHD®, Dolby Atmos®, Dolby Digital Plus® and DTS-HD
Master Audio® transmission
•
Extend your control network with an integrated Ethernet port (LAN Pass-through)
•
Supports bi-directional PoC (Power over Cable) to power extender from either Transmitter or Receiver end
•
HDCP 2.2 support
01
Quick Reference Guide
QUICK REFERENCE GUIDE
VEX100-18G-KIT
www.rticorp.com
Advertisement
Related Manuals for RTI VEX100-18G-KIT
Summary of Contents for RTI VEX100-18G-KIT
- Page 1 HDMI with HDCP 2.2 support, Bi-directional IR, RS-232 and PoC up to lengths of 100m over a single CAT cable. The VEX100-18G-KIT also provides installers the ability to extend the control network without the need for additional cables.

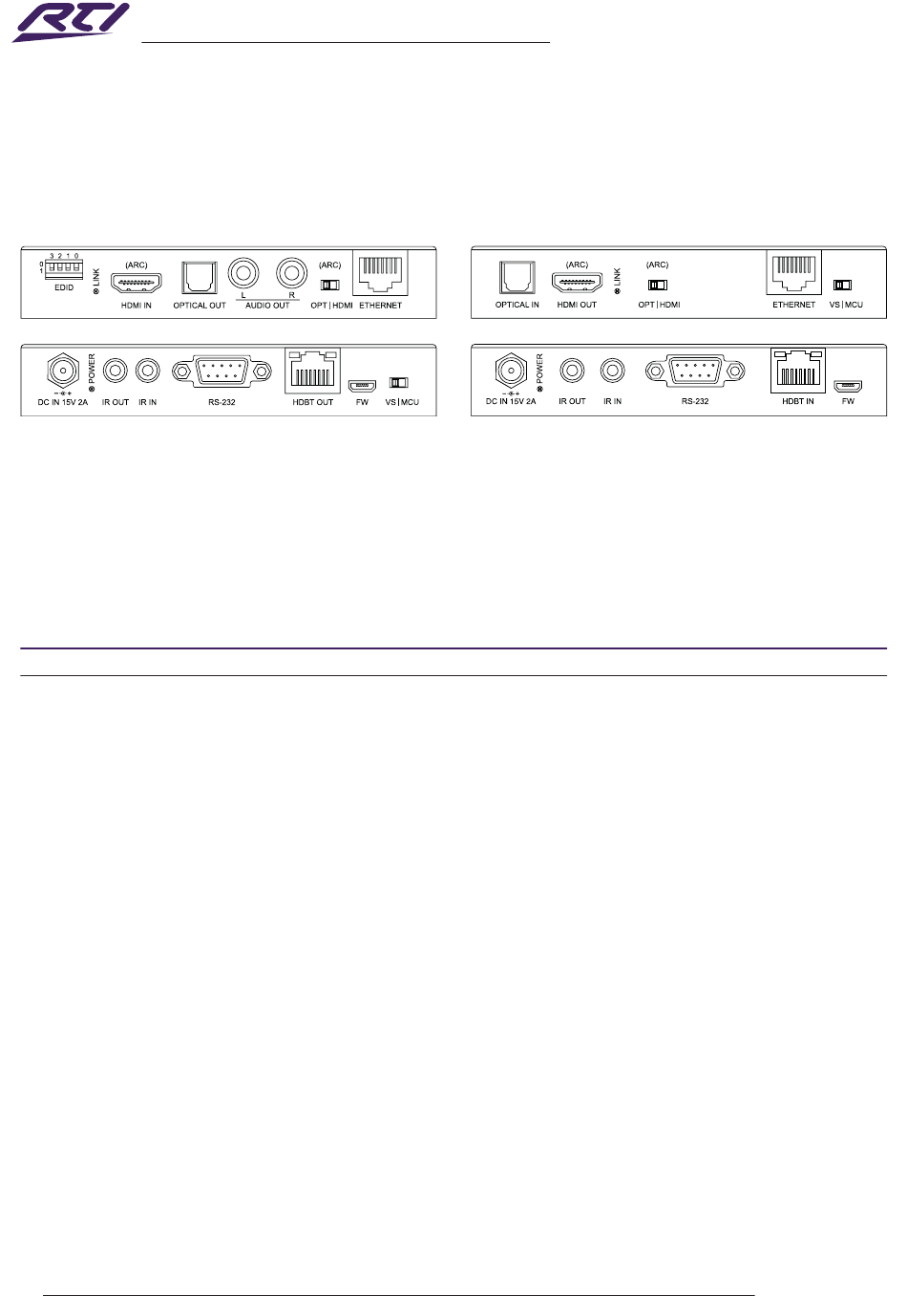

- Page 2 Connects to local AV amplifier when using Audio Return Channel (ARC) feature IR IN Port - Connect to RTI 12V IR Receiver. Connection is used to extend IR over the HDBaseT Analog Audio 2ch L/R Output - Connects to third...
- Page 3 • The Yellow HDBaseT status link light will blink when the output is on and working • The Green HDBaseT link light will blink if there is an unstable connection between the RTI HDBaseT Transmitter and HDBaseT Receiver • The Green HDBaseT link light will be lit when a there is an active HDBaseT Receiver connected to the Transmitter •...
- Page 4 QUICK REFERENCE GUIDE VEX100-18G-KIT Specifications: VEX100-18G-TX VEX100-18G-RX • Video Input Connectors: 1x HDMI Type A, female • Video Input Connectors: 1x HDBaseT™ RJ45 connector • Video Output Connectors: 1x HDBaseT™ RJ45 connector • Video Output Connectors: 1x HDMI Type A, female •...
