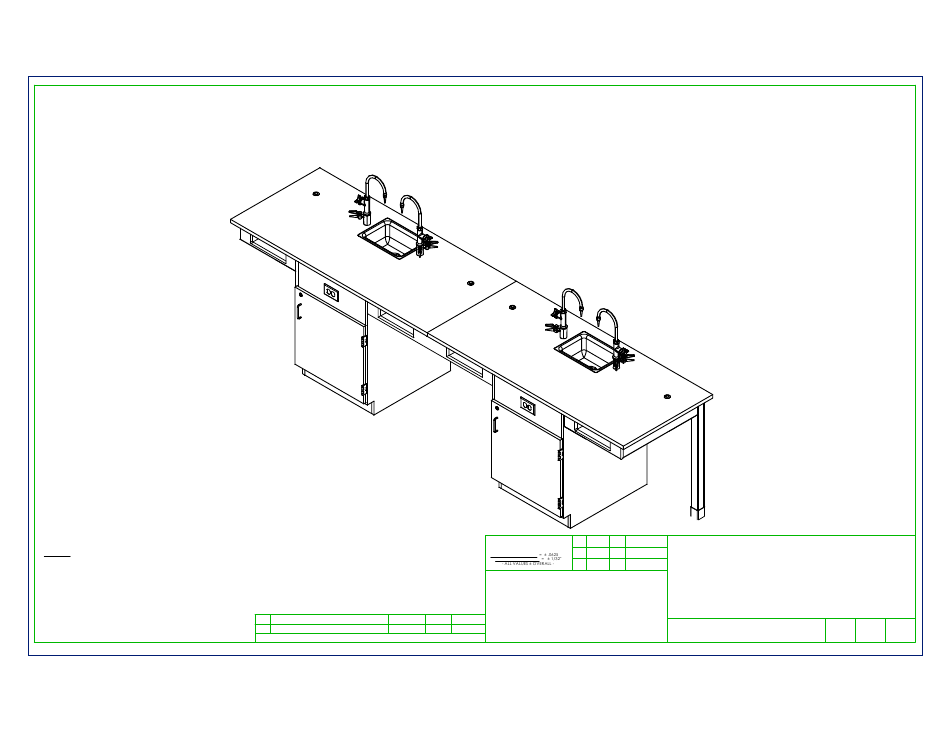

ASSEMBLY TEMPLATE
STUDENT SERVICE ISLAND-SINGLE
C2520K, C2520KF, C2530K , C2530KF, C2540K, C2540KF, C2720K, C2720KF, C2730K, C2730KF, C2740K, & C2740KF SERIES
NOTE:
1.
MODEL VIEWS MAY NOT REPRESENT EXACT MODEL PURCHASED
K:\AutoCAD\Assembly Instructions\C2520, C2530, C2540K & KF,
C2720, C2730, C2740K & KF SERIES.dwg, 4/21/2020 10:41:31 AM, DWG To PDF.pc3
ASSEMBLY INSTRUCTIONS
A
CREATED DRAWING
10/31/16
EMK
REV.
DESCRIPTION
DATE
NAME
REVISION LEVEL
DATE
DWN
10/31/16
ALL DIMENSIONS ARE IN INCHES UNLESS
EMK
DWN:
BY:
NOTED OTHERWISE
APR
DATE
CABINET SQUARENESS
BY:
APR:
FRACTIONAL VALUES
DATE
APR
BY:
APR:
CONFIDENTIAL:
ALL DESIGN RIGHTS RESERVED
THE INFORMATION, DATA, DESIGN, AND DRAWINGS EMBODIED
IN THIS DOCUMENT AND ALL REPRODUCTIONS THEREOF ARE
THE EXCLUSIVE PROPERTY OF DIVERSIFIED WOODCRAFTS, INC.
THESE DOCUMENTS ARE SUPPLIED WITH THE UNDERSTANDING
THAT THEY WILL NOT BE DISCLOSED TO THIRD PARTIES WITHOUT
-
WRITTEN CONSENT OF DIVERSIFIED WOODCRAFTS, INC. ANY
ECN NO.
REPRODUCTION IN PART OR WHOLE WITHOUT WRITTEN
CONSENT IS SUBJECT TO LEGAL ACTION.
TITLE:
STUDENT SERVICE ISLAND-SINGLE
ASSEMBLY INSTRUCTIONS
DRAWING NUMBER:
SCALE:
STUDENT SERVICE ISLAND
NTS
SHEET:
REVISION:
REV A
1 OF 13
Advertisement
Related Manuals for Mansion schools C2520K Series
Summary of Contents for Mansion schools C2520K Series
- Page 1 ASSEMBLY TEMPLATE STUDENT SERVICE ISLAND-SINGLE C2520K, C2520KF, C2530K , C2530KF, C2540K, C2540KF, C2720K, C2720KF, C2730K, C2730KF, C2740K, & C2740KF SERIES ASSEMBLY INSTRUCTIONS DATE 10/31/16 ALL DIMENSIONS ARE IN INCHES UNLESS DWN: NOTED OTHERWISE NOTE: DATE CABINET SQUARENESS APR: FRACTIONAL VALUES DATE APR: MODEL VIEWS MAY NOT REPRESENT EXACT MODEL PURCHASED...
-
Page 2: Tools Required
ASSEMBLY TEMPLATE ASSEMBLY COMPONENTS TOOLS REQUIRED ITEMS INCLUDED PART # PART DESCRIPTION " WRENCH TOP (STYLE VARIES), 1.00 X 30 X 66 VARIES VARIES " SOCKET AND TORQUE WRENCH - OPTIONAL CABINET 24"W X 35"H X 28"D VARIES CONTACT CEMENT APRON ASSEMBLY (FACTORY APRON ASSEMBLY - EXTERNAL SCREW DRIVER... - Page 3 ASSEMBLY TEMPLATE STEP 1: PLACE CABINETS IN DESIRED LOCATION. IF YOU HAVE "K" SERIES CABINETS, PLACE THEM OVER UTILITY HOOK-UPS. LEVEL CABINETS. ATTACH TO FLOOR. LEFT CABINET **NOTE** CABINET MUST BE LEVELED OR DOORS AND DRAWERS MAY NOT OPEN OR CLOSE CORRECTLY RIGHT CABINET DATE 10/31/16...
- Page 4 ASSEMBLY TEMPLATE STEP 2: WITH HELP FROM ANOTHER PERSON, POSITION INTERNAL APRON ASSEMBLY UP TO RIGHT SIDE OF LEFT CABINET SO IT IS CENTERED CORRECTLY AND FLUSH WITH TOP OF BASE CABINET. PLACE L-BRACKETS IN CORRECT POSITION ON APRON ASSEMBLY AND RIGHT SIDE OF LEFT CABINET (SHOULD BE FLUSH WITH TOP EDGE OF FRONT AND BACK APRONS).
- Page 5 ASSEMBLY TEMPLATE L-BRACKET - TYPICAL STEP 3: ATTACH L-BRACKETS TO RIGHT SIDE OF CABINET WITH HARDWARE PROVIDED. REPEAT FOR OTHER SIDE OF INTERNAL APRON ASSEMBLY. DATE 10/31/16 ALL DIMENSIONS ARE IN INCHES UNLESS DWN: NOTED OTHERWISE DATE CABINET SQUARENESS APR: FRACTIONAL VALUES DATE APR:...
- Page 6 ASSEMBLY TEMPLATE STEP 4: WITH HELP FROM ANOTHER PERSON, PLACE INTERNAL APRON ASSEMBLY IN BETWEEN CABINETS AND ATTACH TO L-BRACKETS WITH REMAINING SCREWS PROVIDED. CONTINUE STEP IF YOU HAVE MULTIPLE INTERNAL APRON ASSEMBLIES (EX. C2530, C2730, C2540, OR C2740 SERIES). ATTACH INTERNAL APRON ASSEMBLY TO L-BRACKETS - TYPICAL INTERNAL APRON...
- Page 7 ASSEMBLY TEMPLATE STEP 5: REPEAT STEPS 2-4 FOR EXTERNAL APRON ASSEMBLIES (BOTH LEFT AND RIGHT). SUPPORT BOTH ASSEMBLIES UNTIL LEGS HAVE BEEN ATTACHED, THEY ARE NOT STRONG ENOUGH TO WITHSTAND WEIGHT UNTIL LEGS AND TOP ARE ATTACHED. HOLD APRON ASSEMBLIES UP UNTIL LEGS HAVE BEEN ATTACHED LEFT EXTERNAL...
- Page 8 ASSEMBLY TEMPLATE LEG LEVELER LEG BOOT STEP 6: SLIDE LEG BOOT ONTO LEGS WITH FLARED END TOWARDS BOTTOM OF LEGS. SCREW LEG LEVELERS INTO T-NUT ON BOTTOM OF LEGS. CLOSE UP OF LEG LEVELER AND LEG BOOT ASSEMBLY DATE 10/31/16 ALL DIMENSIONS ARE IN INCHES UNLESS DWN: NOTED OTHERWISE...
- Page 9 ASSEMBLY TEMPLATE INSERT HANGER BOLT THROUGH HERE WITH LOCK STEP 7: WASHER AND HEX NUT INSERT HANGER BOLT ON ONE LEG THROUGH THE CORNER BRACKET AND INSERT LOCK WASHER AND HEX NUT. TIGHTEN NUT USING A " WRENCH OR " SOCKET AND TORQUE WRENCH, TO A MINIMUM OF 12FT LBS BUT NOT TO EXCEED 17FT LBS .
- Page 10 ASSEMBLY TEMPLATE STEP 8: ADJUST LEG LEVELERS TO LEVEL LEGS WITH CABINET. APPLY SILICONE ADHESIVE TO TOP EDGES OF CABINET AND APRONS. PLACE TOP ON UNIT WITH PROPER OVERHANG (2" OVERHANG ON SIDES AND 1.25" ON FRONT AND BACK). APPLY A BEAD OF ADHESIVE TO THE EDGES OF TOPS AND PRESS FIRMLY TO CONNECT TOPS TOGETHER. WIPE OFF ANY EXCESS CAULK.
- Page 11 ASSEMBLY TEMPLATE STEP 9: IF YOU DO NOT HAVE A "K" SERIES UNIT, SKIP TO STEP 10. APPLY SILICONE ADHESIVE TO SINK OPENINGS ON TOPS. LOWER SINKS INTO OPENINGS. WIPE OFF ANY EXCESS CAULK AND ALLOW TO SET. LET CURE FOR 6-12 HOURS. APPLY SILICONE ADHESIVE AROUND OPENING FOR TOP - TYPICAL...
- Page 12 ASSEMBLY TEMPLATE MULTI-SERVICE FIXTURE - TYPICAL STEP 10: ATTACH RUBBER MOLDING TO BASE OF CABINETS USING CONTACT CEMENT. SCREW STAINLESS STEEL CORNER BRACKETS ON EACH CORNER OVER BASE MOLDING WITH HARDWARE PROVIDED. IF YOU HAVE A "K" SERIES UNIT, INSTALL MULTI-SERVICE FIXTURES IN HOLES ROD SOCKET - TYPICAL PROVIDED ON TOPS.
- Page 13 TROUBLESHOOTING YOUR GFCI ELECTRICAL RECEPTACLE: PLEASE NOTE: THROUGHOUT ANY OF THE FOLLOWING STEPS (PROCEDURES); IF YOU ARE NOT SURE YOU CAN DO THIS JOB SAFELY, AND COMPETENTLY, REFER THIS WORK TO QUALIFIED PROFESSIONAL! If your unit comes equipped with a GFCI (Ground Fault Circuit Interrupter) electrical receptacle, and there is no power in the receptacle please consider/check the following: •...
