Instructions:

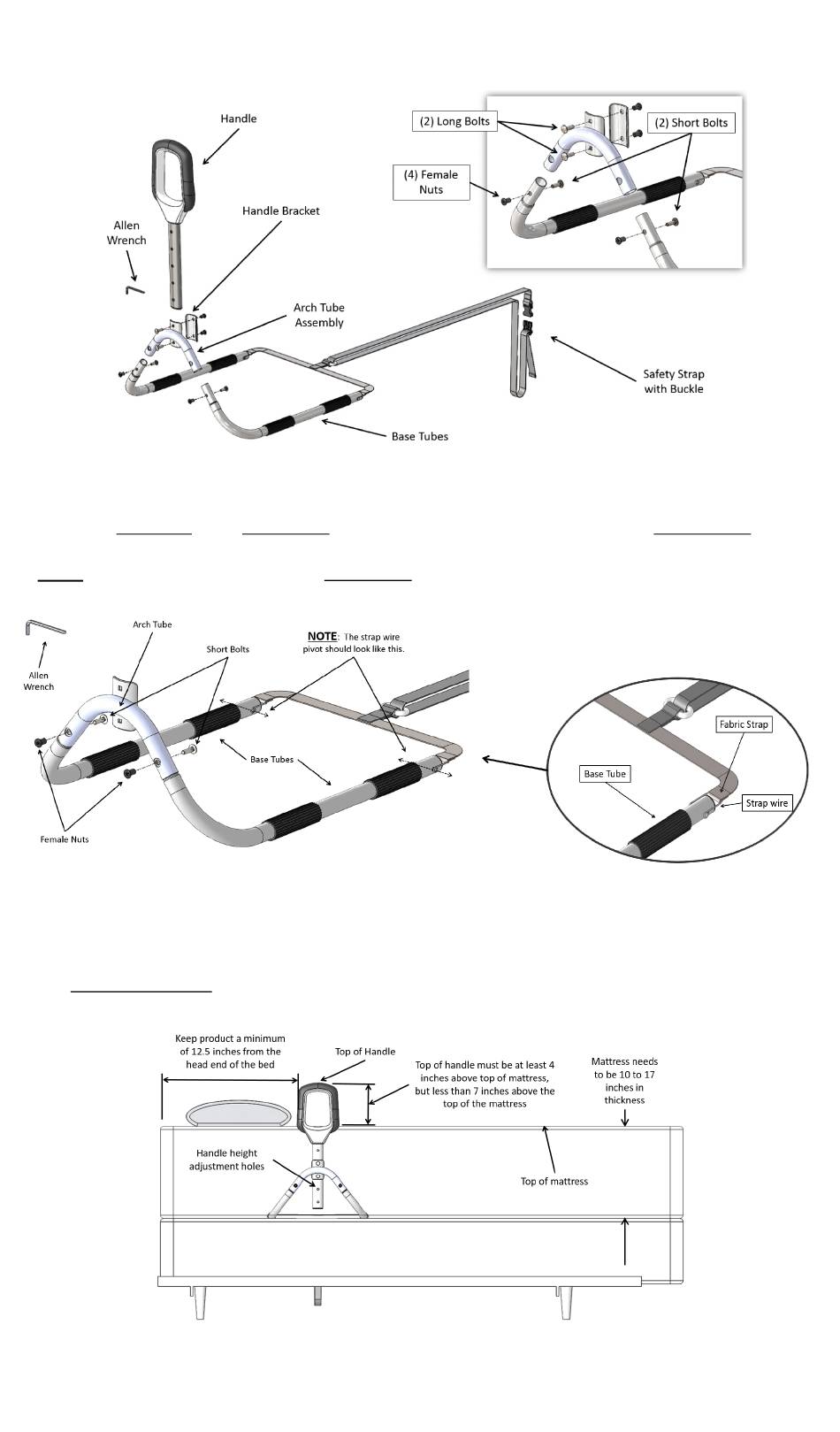

1. Remove all components from the box and verify all parts are included as shown in Figure 1.
2. Attach the Arch Tube to the Base Tubes with Short Bolts and Female Nuts using the Allen Wrench, as
shown in Figure 2.
NOTE: The strap wire at the end of the Base Tubes should be oriented as shown in Figure 2.
3. The Handle height adjustment holes allow the Handle to be positioned properly to accommodate varying
mattress thicknesses (10 to 17 inches).
The "Top of the Handle" must be installed at a position of 4 to 7 inches above the top of the Mattress and
located 12.5 or more inches from the head end of the bed as shown in Figure 3.
7610 Instructions Confidence Bed Handle V 1.0
FIGURE 1
FIGURE 2
FIGURE 3
