Summary of Contents for Envoy Connect
- Page 1 User Guide Last updated: September 2021 NOTE: This User Guide refers to Player Version T16 or newer. Please refer to ‘Player Version and Serial Number’ within this Guide to check the version of your player. Page 1 Envoy Connect User Guide...

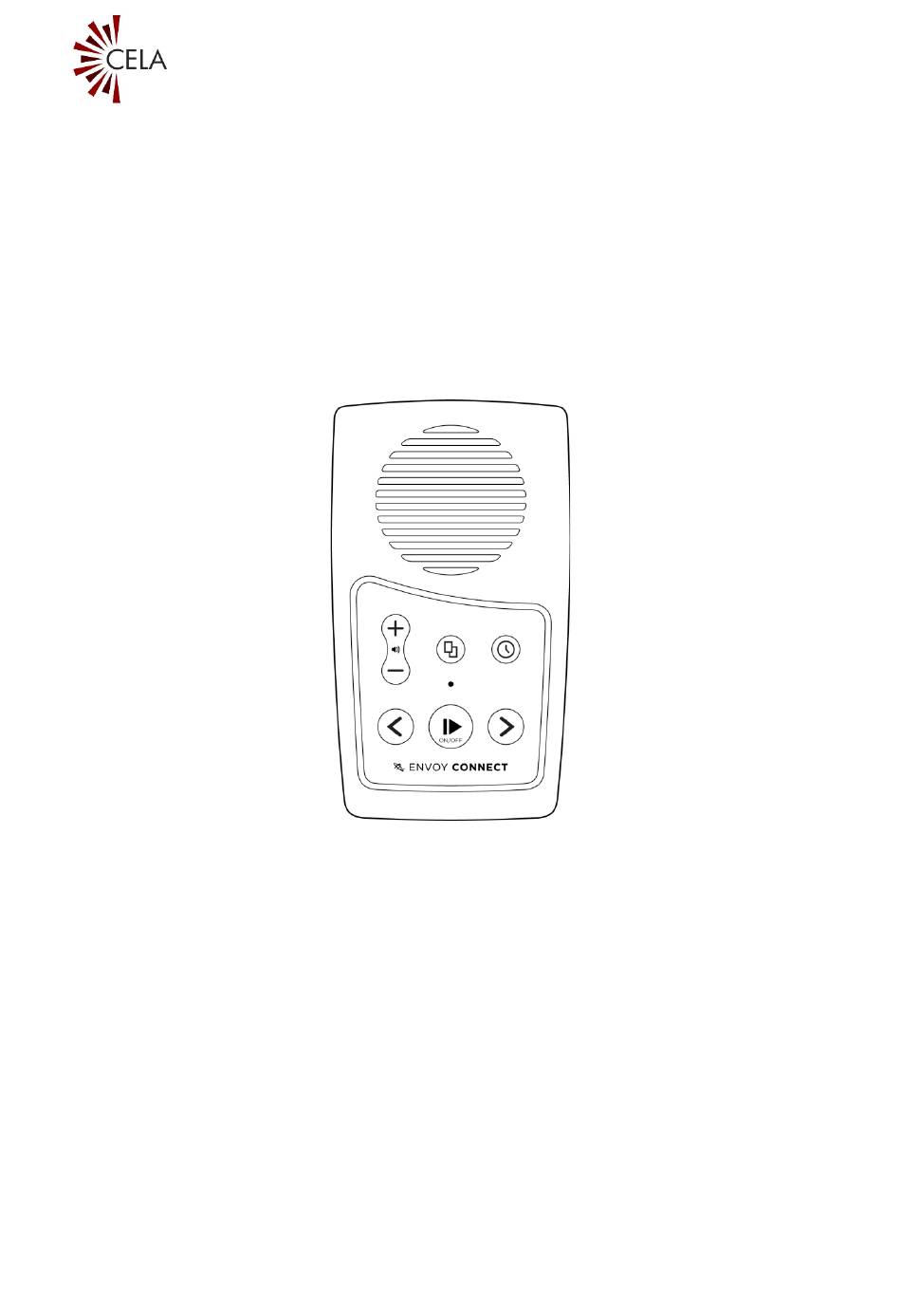

- Page 2 Micro SD Headphones Player Description: On the front face of the Envoy Connect Player is the speaker. Below that is the keypad with raised buttons. The keypad has two rows of buttons. Upper left is the volume up and down buttons. Upper middle is the Bookshelf button.
- Page 3 Note that the Player will announce the current book title each time it is powered on. - Play/Pause: Press the same button to start playback. Press again to pause playback. Page 3 Envoy Connect User Guide...
- Page 4 - Rewind: Press and hold to move backwards through the audio file. A beep will sound to indicate that you are moving backwards in 30 second intervals. Forward Button (Lower Right): When playing a book: - Press to Skip to Next Heading. Page 4 Envoy Connect User Guide...
- Page 5 - Micro USB Port (Bottom Edge, Middle) - Micro SD Card Slot (Bottom Edge, Right) Charging: When shipped, the battery may only be partially charged. Please fully charge the Player before the first use. To do this, expose the solar Page 5 Envoy Connect User Guide...
- Page 6 USB slot that you can plug the Player into. A chime will sound when you connect the Player to the charger and the LED will blink while charging. The LED will stop blinking when the player is fully charged.
- Page 7 Wall Charger with inbuilt cable and micro USB plug. - Book Loading: Each player is shipped with a Windows software utility called CELA Connect. This utility can be found on the Player within a folder called ‘System’. If you or someone you know has a...
- Page 8 - Skip to End: If you press the Forward button when playing the last section of a book, a chime will sound to let you know there is no ‘next section’ and playback will resume. Page 8 Envoy Connect User Guide...
- Page 9 - Low Battery Warning: The Player will emit a ‘Low Battery’ warning chime when battery capacity drops below 30%. It is important to charge the player at this point. The Player will continue to chime every minute Page 9 Envoy Connect User Guide...
- Page 10 - LED Indicator: The green light above the Play button provides visual information about the Player’s current operational state. For example: • Green light means the Power is on • Blinks quickly when playback is paused Page 10 Envoy Connect User Guide...
- Page 11 Be careful when ejecting the card as it may ‘spring out’ quickly and be lost. - USB Computer Connection: Connect to a computer by inserting the supplied micro USB plug into the middle port on the bottom edge of the Player. Use this connection for loading books and charging the Player.
- Page 12 Player in the order that you want them listed on the Player’s bookshelf. Note that the player has these requirements: • Maximum Folder Name length is 58 characters • Maximum File Name length is 185 characters Page 12 Envoy Connect User Guide...
- Page 13 This software is contained within the System folder when you view the Player in Windows Explorer. Simply run it to install CELA Connect on your computer. When you install it, the software will provide further instructions. A detailed CELA Connect user guide can also be found in the Help menu of the software.
-
Page 14: Troubleshooting
File Name lengths do not exceed 185 characters. - The Book Plays Out of Order: Check that the audio files in each folder are sorted by name and have been loaded in the order they are to be played. Page 14 Envoy Connect User Guide... - Page 15 Hardware Reset button. - Player Won’t Connect to Computer: Ensure you are using the supplied USB cable. If you are using an alternative USB cable, ensure that your cable is a ‘data-transfer’...
- Page 16 It will insert easily the right way around. If Problems Persist: - We want your experience using the Envoy Connect Player to be the best possible. If you have any questions or comments, please contact the Contact Centre at 1-855-655-2273 or help@celalibrary.ca.
