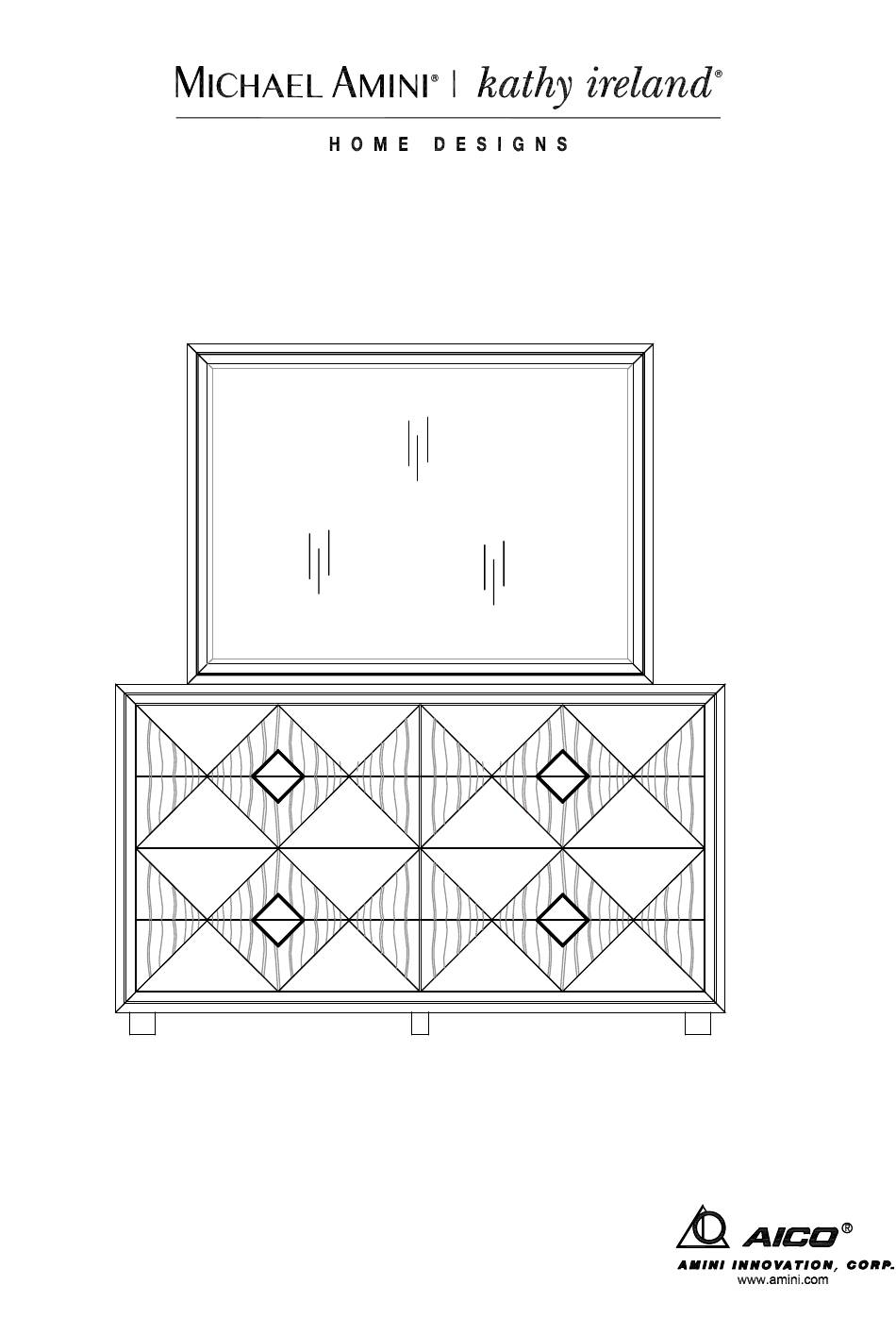

- Page 1 Dresser / Dresser Mirror Assembly Instructions KI-HUDF050-216/KI-HUDF060-216 Hudson Ferry Congratulations on your purchase. Rest assured only the finest materials, skilled artisans and modern engineering were used to carefully construct this exquisite piece.
- Page 2 Index Caution : Before assembling, make sure all of the furniture pieces are placed in their desired location. Inappropriate moving furniture pieces after they are assembled might cause structural damage and void warranties. Dresser / Dresser Mirror Parts Dresser Mirror Dresser Mirror Bracket NOTE: Inspect all packing material for small parts, which...
- Page 3 Φ5/16 " Step 1 Figure 1 Small Parts Ruler Instructions: Figure 1: Assembly Hardware 1. Place E (Dresser Mirror) onto F (Dresser). Bolt Φ1/4 "*1-1/2 2. Position E (Dresser Mirror) so that the back side is flush Spring Washer Φ1/4" with the back side of F (Dresser).
- Page 4 Step 2 Figure 2 Heighten Lower Adjust levelers to floor as shown Instructions: Figure 2: 1. Adjust the G (Mirror Bracket) so that the empty hole on G(Mirror Bracket) will be aligned with holes on E (Dresser Mirror). 2. Secure G (Mirror Bracket) to E (Dresser Mirror) and F (Dresser) by inserting C (Flat Washer) + B (Spring Washer) + A (Bolt) through holes and tighten with D (Open Wrench).
