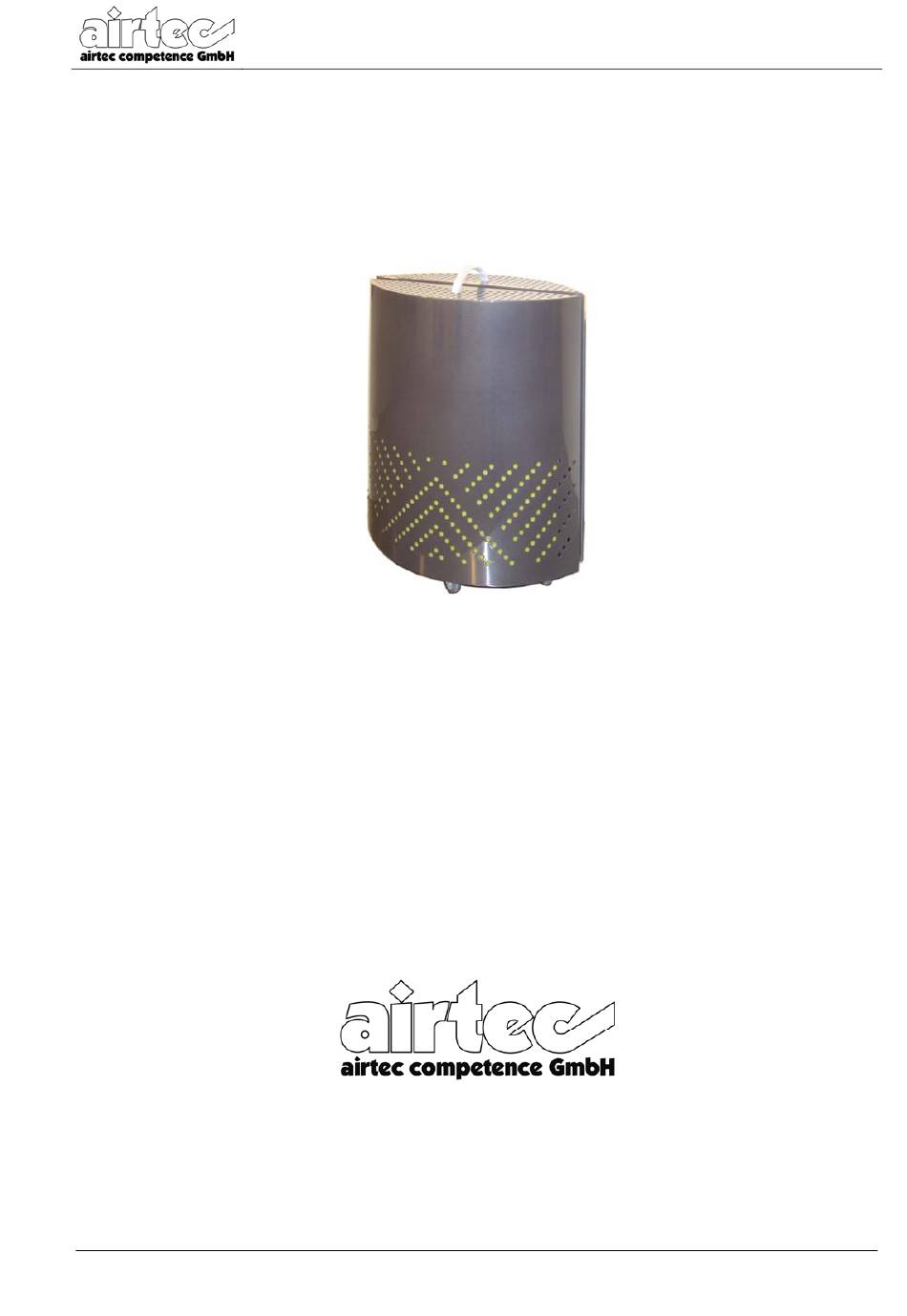

- Page 1 ® aereus arco air purifier airtec competence GmbH Kupferstraße 2 48496 Hopsten Germany Tel.: +49 5458 – 792 552 Fax.: +49 5458 – 792 554 page1...
- Page 2 Air purifier using a recirculating air system for eradicating smoke and odours as well as for air sterilisation and general improvement of room hygiene. Manufacturer: airtec competence GmbH, Kupferstraße 2, 48496 Hopsten, Germany Applied relevant provisions: • EC directive for machinery 98/37/EC •...
- Page 3 EC declaration of conformity ® aereus arco User guide All rights reserved! This manual may not be duplicated or distributed without the express consent of airtec competence GmbH. This applies also to storage on other media. page 3...
-
Page 4: Table Of Contents
Contents Contents Contents ............................4 1. General ........................... 6 1.1 Information about the user guide ..................6 1.2 Device type, series, year of manufacture ................7 1.3 Manufacturer, service addresses ..................7 1.4 Information on the originator and industrial property rights ..........7 1.5 ... - Page 5 GmbH in collaboration with the INP institute for low- temperature plasma physics in Greifswald, Germany. The technology has proven itself in practical conditions in the catering and food industries.
-
Page 6: General
General General Information about the user guide This user guide is an essential aid to successful and safe operation of the aereus® arco, no matter whether in private or commercial use. The user guide contains important information on operating the air purifier safely, correctly and efficiently. -
Page 7: Device Type, Series, Year Of Manufacture
This user guide should be treated in confidence. It should be made accessible to author- ised persons only. Third parties are only permitted to use the manual with the written consent of airtec com- petence GmbH. All documents are protected in line with copyright law. The transmission and duplication of documents, even extracts thereof, as well as exploitation and notification of its content are not permitted unless expressly authorised. -
Page 8: Intended Use
GmbH. Any spare parts used must comply with the technical requirements defined by airtec com- petence GmbH. The use of original spare parts will guarantee this. Only use trained or instructed personnel. The responsibilities of staff members for opera-... -
Page 9: Safety Advice
Safety advice Safety advice General The interior air purifier aereus® arco is manufactured in accordance with the latest technical developments and generally accepted good safety practice. Nevertheless, dangers for the user or third parties or damage to the device and other property can occur during use if it: •... -
Page 10: Safety Symbols Used
Safety advice Caution Do not use the device as a place to put down objects. Spillage of liq- uid can result in electric shock and damage. RISK OF DEATH! Caution Incorrect operation of the device can result in increased ozone con- centration. -
Page 11: Safety During Servicing, Maintenance And Troubleshooting
Safety advice Safety during servicing, maintenance and troubleshooting Work on the electrical equipment of the aereus® arco may only be carried out by trained electricians in accordance with the electrical engineering regulations. Before opening, isolate the device from the power supply. •... -
Page 12: 3 Technical Description
Technical description Technical description aereus® arco is a multi-stage air purifier using a recirculating air system for eradi- cating cigar/cigarette smoke and odours as well as for air sterilisation and improv- ing interior air hygiene with regenerable pre-filter. The device has been designed solely for use in interior rooms such as restaurants, con- ference rooms, assembly halls, airports and toilets. - Page 13 Technical description Further instructions on the radial fan can be found in the technical documentation in appendix 7 provided by the company ebmpapst. A handle (6) on the top and freely swivelling castors (7) (module II) or fixed feet (mod- ule I) make handling and transport easier.
- Page 14 Technical description Plasma-chemical oxidation – plasmaNorm® Fig. 3: High-voltage electrodes Directly above the pre-filter are located the electrode plates. The transformer integrated into the device applies a high voltage to the electrode plates, thereby generating plasma. The plasma occurs as a result of the extended supply of energy to the gaseous air (fourth state of matter.
- Page 15 Technical description The second-stage filter consists of active carbon fleece. Driven by the radial fan, the pre- cleaned air flows through an active carbon cylinder (10), which is retained by a clamp- ing ring (11). Operation Fig. 5: 4-level control system aereus®...
-
Page 16: Troubleshooting
(electrician). Servicing and maintenance Servicing airtec competence GmbH will accept no warranty claims or liability for dam- age caused by poor servicing! Remove the mains plug before carrying out any servicing work on the aereus®... - Page 17 Service and maintenance Replacing hydroSorp® filter mats Caution Heavily soiled pre-filters increase the risk of fire! Regularly check the degree of soiling of the filter, replace dirty filters. Check the pre-filter at regular intervals and replace if particularly dirty. The degree of soiling depends solely on local conditions so make sure you follow a servicing cycle that is appropriate for the conditions.
-
Page 18: Maintenance
Make sure you also pay attention to the safety instructions in section 2.5, in particular. Replacement and wearing parts can be obtained on request from airtec competence GmbH. The manufacturer recommends you keep a stock of replacement and wearing parts as necessary. -
Page 19: 6 Disposal And Recycling
Service and maintenance airtec competence GmbH will only accept liability and warranty claims if original; parts are used. Disposal and recycling Filter hydroSorp® filter consists of ester foam material. Please dispose of used filters in accordance with the statutory regulations. - Page 20 hydroSorp® Data Sheet hydroSorp® High-efficiency physical sorption separator for aerosols and micro-droplets from water-based com- pounds, emulsions etc. in exhaust air from food production facilities Pre-filter for active carbon installations etc. Application This high-performance sorption separator acts as a pre-filter for active carbon or oxidation systems (odour reduction).
- Page 21 plasmaNorm® Data Sheet plasmaNorm®Technology Plasma chemical process with atmospheric Plasma (DBD) for gas cleansing, exhaust air treatment of mole- cular, chemical and biological pollutants, and removal of odours by an activated carbon filter Applications The technology was developed for the complete removal of cooking odours, and simultaneously sterilises the air.
