- Page 1 CHCNAV AlphaAir 450 User Manual Mobile Mapping | March 2021 Make your work more efficient...
-
Page 2: Table Of Contents
Table of Content Table of Content Table of Content ....................... 2 Overview ........................3 Copyright ........................3 Symbol Explanation ....................3 Recommendation ..................... 4 Service & Support ....................4 Disclaimer ......................... 4 Operation Requirements ................... 5 Operation Environment.................... 5 Attentions before Using ................... 5 Attentions when Using ..................... -
Page 3: Overview
Overview 1 Overview This manual contains important information related to the system and software. Please read it carefully before its use. 1.1 Copyright Copyright 2019-2021 CHC | Shanghai Huace Navigation Technology Ltd. All rights reserved. The CHC are trademark of Shanghai Huace Navigation Technology Limited. All other trademarks are the property of their respective owners. -
Page 4: Recommendation
If the service life of equipment is affected due to improper use or maintenance, even broken, CHCNAV will not bear the relevant responsibility. All repairs and maintenance services resulting from this will be charged at standard prices. -
Page 5: Operation Requirements
◼ or not enough for this time’s requirement, please delete laser data files in advance. Before start work, please check whether the controller’s laser parameter settings are ◼ ALPHAAIR 450 USER MANUAL | 2021-03 P a g e | 5... -
Page 6: Attentions After Using
Non-compliance with these instructions may cause property damage and/or bodily injury. CHCNAV assumes no liability for damage caused by any activities contrary to the present operating manual. ALPHAAIR 450 USER MANUAL... -
Page 7: System Overview

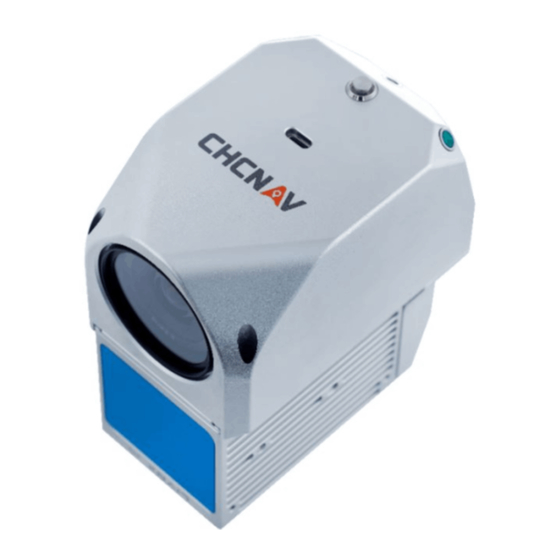

3 System Overview 3.1 General Introduction AlphaAir 450 pocket lidar measurement system, the whole device is based on the lightweight and high integration design concept, carried on the BB4 or 3rd party UAV like DJI M300, can obtain longer endurance. As an emerging means of 3D data acquisition, it can quickly acquire terrain surface data, ground feature, power line information, etc., which can realize high-... -
Page 8: Product Introduction
System Overview 3.3 Product Introduction The product diagrams are shown below: 3.4 Product Dimensions Weight: 1.0 kg ◼ Length, width, and height are shown below: ◼ ALPHAAIR 450 USER MANUAL | 2021-03 P a g e | 8... -
Page 9: Electrical Characteristics
Press the Skyport unlock button to remove the protective cover. ◼ Align the white dot on the AA450 Skyport interface with the red dot on the M300 interface ◼ and embed it in the installation location. ALPHAAIR 450 USER MANUAL | 2021-03 P a g e | 9... -
Page 10: Airborne Disassemble Steps Using Skyport
Hold the bottom of the AA450 with your left hand, press the Skyport unlock button with ◼ your right hand, and remove the device by turning the quick-release connector clockwise. ALPHAAIR 450 USER MANUAL | 2021-03 P a g e | 10... -
Page 11: Product Using
Connect both power supply cable and GPS feeder cable of equipment and start power on. ◼ Put the equipment at an open sky area and turn on LiDAR &remote controller. Check ◼ whether the controller and equipment status are normal. ALPHAAIR 450 USER MANUAL | 2021-03 P a g e | 11... -
Page 12: Data Acquisition
Stop project: when the collection is over, short press the device’s “ON/OFF key”, the laser ◼ and camera will stop working. Long press the “ON/OFF key” after standing still for 4 minutes, the device will stop the project. ALPHAAIR 450 USER MANUAL | 2021-03 P a g e | 12... -
Page 13: Lidar Turn Off
6 LiDAR Turn Off Before turning off equipment, please make sure the project is already stopped. ◼ Long press the “ON/OFF key” to turn off equipment . ◼ ALPHAAIR 450 USER MANUAL | 2021-03 P a g e | 13... -
Page 14: Data Copy
You can't format the ALPHA_CAM. 7.2 Automatically copy Connect the device to the computer with type-c to USB data cable, the computer will pop up two SD cards ALPHA_LAS and ALPHA_CAM. ALPHAAIR 450 USER MANUAL | 2021-03 P a g e | 14... - Page 15 USB data cable. Please format the ALPHA_CAM regularly by clicking “Format” button. Please clear the ALPHA_LAS regularly by clicking “Clear” button. ALPHAAIR 450 USER MANUAL | 2021-03 P a g e | 15...
-
Page 16: Data Structure
CORS station. Generally, we need Rinex format. If base data is other formats, please convert it into Rinex format first. (For example, HCN file) ROVER: This folder contains GNSS data and IMU data which recorded by AlphaAir 450. ◼... -
Page 17: Frequently Asked Questions
Equipment can’t power on or power off normally: Check whether the power supply and ◼ connect port are normal. If still can’t power on or power off, please contact CHCNAV Support team for repair. Equipment can’t be timed or need long time: Check whether the GPS feeder cable ◼... -
Page 18: Matters Need Attention
LiDAR measure system is a complex and precise survey system. In daily carrying, using, and storing, please operate equipment correctly and maintenance properly. There are some important notes listed below: Do not disassemble equipment privately. If equipment has issue, please contact CHCNAV ◼ Support team. -
Page 19: Using Tips
The room where the equipment is stored should be clean, dry, bright, and well ventilated. ◼ It should be placed flat or upright, and it should not be leaned casually to prevent distortion. ALPHAAIR 450 USER MANUAL | 2021-03 P a g e | 19... - Page 20 Building D, NO. 599 Gaojing Road, Qingpu District, 201702 Shanghai, China Tel: +86 21 542 60 273 | Fax: +86 21 649 50 963 Email: sales@chcnav.com | support@chcnav.com Skype: chcnav_support Website: www.chcnav.com ALPHAAIR 450 USER MANUAL | 2021-03 P a g e | 20...
