User's manual
Customer Service
US: 1-800-645-2986
Manual del usuario
Servicio de atención al Cliente
US: 1-800-645-2986

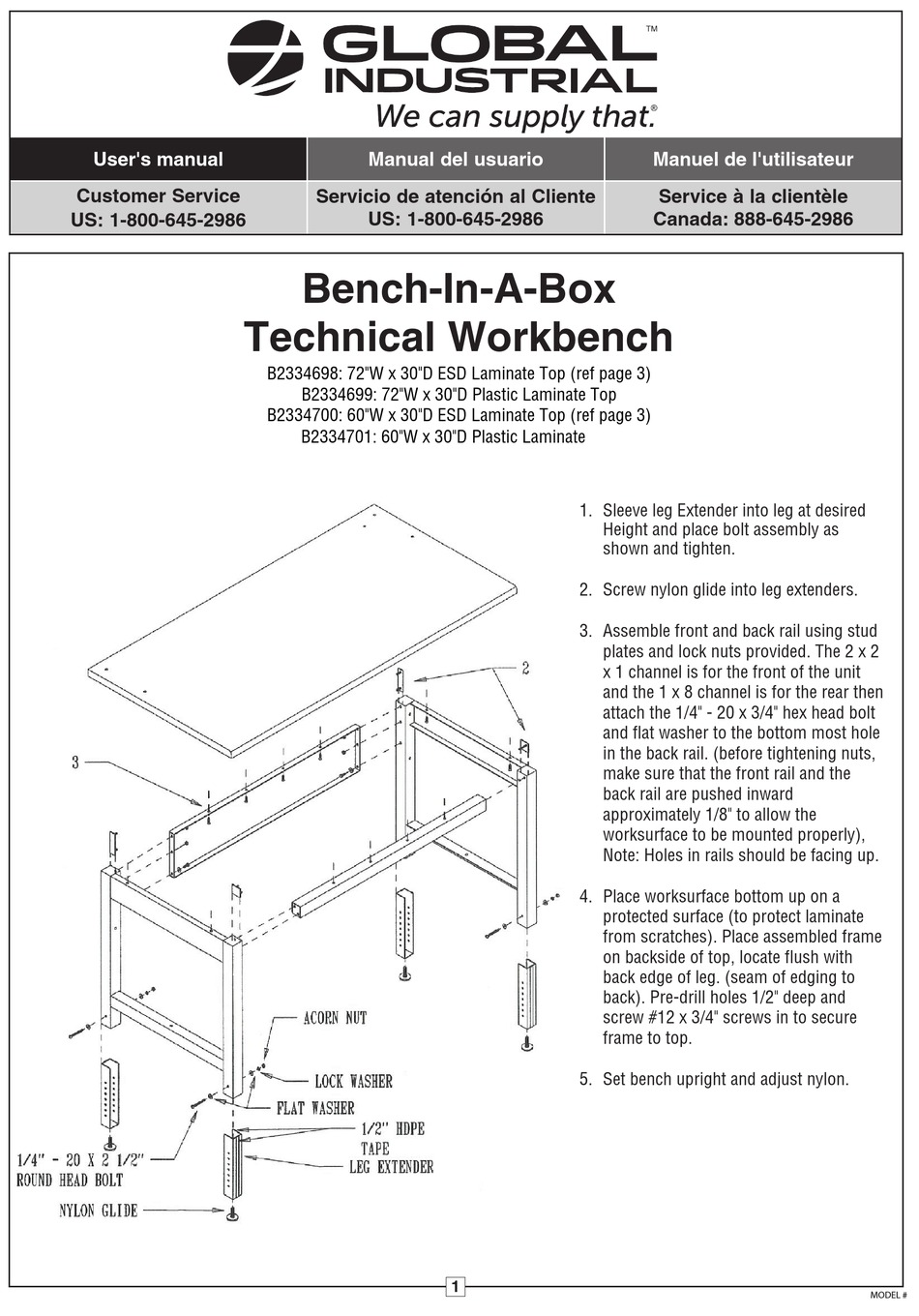

Bench-In-A-Box
B2334698: 72"W x 30"D ESD Laminate Top (ref page 3)
B2334699: 72"W x 30"D Plastic Laminate Top
B2334700: 60"W x 30"D ESD Laminate Top (ref page 3)
B2334701: 60"W x 30"D Plastic Laminate Top
1. Sleeve leg Extender into leg at desired
Height and place bolt assembly as
shown and tighten.
2. Screw nylon glide into leg extenders.
3. Assemble front and back rail using stud
plates and lock nuts provided. The 2 x 2
x 1 channel is for the front of the unit
and the 1 x 8 channel is for the rear then
attach the 1/4" - 20 x 3/4" hex head bolt
and flat washer to the bottom most hole
in the back rail. (before tightening nuts,
make sure that the front rail and the
back rail are pushed inward
approximately 1/8" to allow the
worksurface to be mounted properly),
Note: Holes in rails should be facing up.
4. Place worksurface bottom up on a
protected surface (to protect laminate
from scratches). Place assembled frame
on backside of top, locate flush with
back edge of leg. (seam of edging to
back). Pre-drill holes 1/2" deep and
screw #12 x 3/4" screws in to secure
frame to top.
5. Set bench upright and adjust nylon.
1
Manuel de l'utilisateur
Service à la clientèle
Canada: 888-645-2986
MODEL #
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Global Industrial Bench-In-A-Box B2334698
Summary of Contents for Global Industrial Bench-In-A-Box B2334698
- Page 1 User's manual Manual del usuario Manuel de l'utilisateur Customer Service Servicio de atención al Cliente Service à la clientèle US: 1-800-645-2986 Canada: 888-645-2986 US: 1-800-645-2986 Bench-In-A-Box Technical Workbench B2334698: 72"W x 30"D ESD Laminate Top (ref page 3) B2334699: 72"W x 30"D Plastic Laminate Top B2334700: 60"W x 30"D ESD Laminate Top (ref page 3) B2334701: 60"W x 30"D Plastic Laminate Top 1.
- Page 2 Technical Workbench 1. Sleeve leg extender into leg at desired height and place bolt assembly as shown and tighten. 2. Screw Nylon glides into leg extenders. NOTE: If the leg extenders are fitting tightly and are not sliding easily into the legs, remove extender and with a rubber mallet hit along both sides of the extender to slightly bend the channel inwards.
- Page 3 Technical Workbench 1. Assemble footrest as shown using 1/4" - 20 x 2 1/4" flat allen head bolt, finish washer, flat washer and kepnuts provided.
- Page 4 Technical Workbench ESD installation only for below models: B2334698: 72"W x 30"D ESD Laminate Top B2334700: 60"W x 30"D ESD Laminate Top Drill 3/8" hole in work surface per measurements in the top view (if not already pre-drilled). Install 5/16" x 2 1/2" hex head bolt, ring terminal and serated through work surface.
- Page 5 Technical Workbench 1. Mount brackets as shown to the padlock drawer using 1/4" hex head bolts, nuts and washers. (tighten bolts on rear bracket nut leave bolts on front plate loose). 2. Slide padlock drawer over front rail of bench sandwiching front rail between padlock drawer and plate.
- Page 6 Technical Workbench 1. If worksurface is not already pre- drilled, drill the worksurface with 3/8" dia. drill bit per dimensions for your particular size shelf on drawing and chart. 2. Mount the electrical back brace and front brace to riser legs using 1/4" -20 x 3/4"...
- Page 7 Technical Workbench...
