Summary of Contents for SAFETRACK ST.33

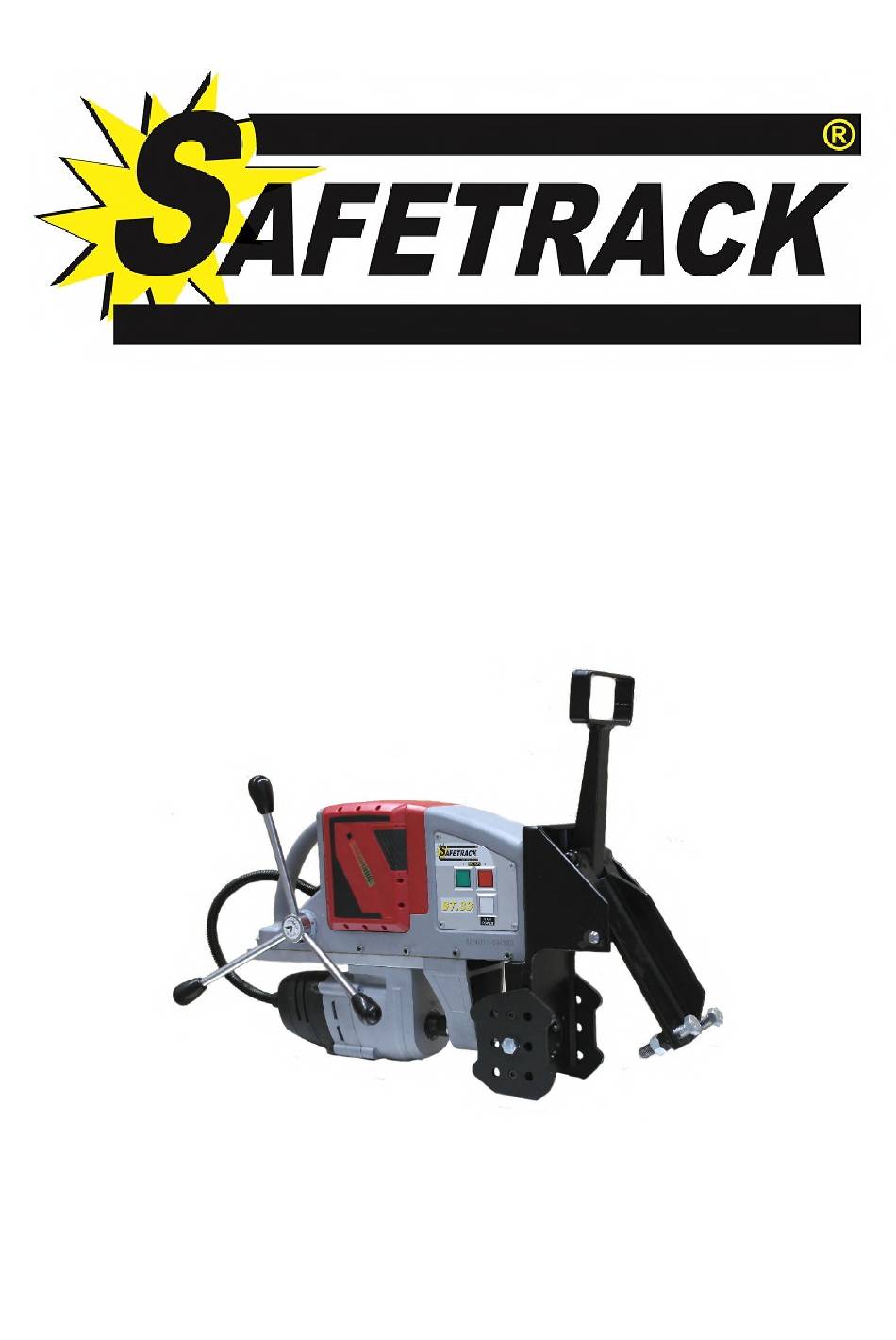

Page 1 IN-365-03 USER MANUAL ST.33...
Page 2 CORDLESS Drilling Machine for rail. SERIAL NO.____________ DATE OF PURCHASE __________ Congratulations on your purchase of the Saftrack ST.33 CORDLESS Drilling Machine. Your model is designed to produce superior holes quickly and efficiently. Through years of experience, constant innovation and development, Saferack AB is committed to provide you with metal cutting tools and products to help you be more productive.
Page 3 Symbol Term, meaning Explanation Be absolutely sure to read and understand the Read documentation enclosed documentation such as Instruction Manual and the General Safety Instructions. Wear ear protection Use ear protection during operation. Wear eye protection Use eye-protection (safety goggle) during operation.
Page 4: General Power Tool Safety Warnings
GENERAL POWER TOOL SAFETY WARNINGS Do not use this power tool before you have thoroughly read and completely understood this Instruction Manual and the “General Safety Instructions”, including the figures, specifications, safety regulations and the signs indicating DANGER, WARNING and CAUTION. WARNING: When using electrical tools basic safety precautions should always be followed to reduce the risk of fire, electrical shock and personal injury including following.
Page 5 If damaged, have the tool serviced before using. Many accidents are caused by poorly maintained tools. 9. Use only accessories that are recommended by Safetrack for your model. Accessories that may be suitable for one machine, may become hazardous when used on another machine.
Page 6: Residual Risks
ADDITIONAL SPECIFIC SAFETY RULES FOR MAGNETIC DRILLING MACHINES • Keep your fingers well out of the drill area; • Avoid touching the drilled core that is automatically ejected by the centering pin when the working procedure is finished. Contact with the core when it is hot, or if it falls, can cause personal injuries; •...
Page 7 MARKINGS ON THE MACHINES The following pictograms are shown on the tool: Read instruction manual before use. Wear ear protection in areas with noise emissions > 80 db(A). Wear eye protection. POSITION Serial number The Serial Number, which also includes the type of machine, the year and month of manufacturing and identification number, is engraved on the frame and the motor unit.
Page 8: Technical Data
TECHNICAL DATA ST.33 ANNULAR CUTTERS ø 12 - 36 mm TWIST DRILLS ø 1 - 13 mm MAX. DEPTH OF CUT 55 mm LENGTH 297 mm WIDTH 112 mm HEIGHT 420 - 650 mm STROKE 230 mm WEIGHT 15 kg...
Page 9: Assembly And Adjustments
Damaged protective devices and parts must be repaired or replaced according to specifications by Safetrack of any authorized Safetrack dealer. BATTERY PACK Charge the battery before use. If performance diminishes, recharge the battery pack.
Page 10 Do not use deformed or damaged tools. Before use, always check tools such as core drills for deformities or damage. Do not use accessories that have not been specified or recommended by Safetrack for this machine. The ability to attach the accessory to your machine does not guarantee safe operation.
Page 11 TURNING MACHINE ON AND OFF THE CONTROL PANEL The control panel on your battery rail drilling machine is designed for maximum operating facility and safety. 1 - The ON Switch (GREEN): This (upper) switch is used to switch the motor unit On (“I“); 2 –...
Page 12 DRILLING CONDITIONS The ease with which material can be drilled depends on several factors including tensile strength and abrasion resistance. Whilst hardness and/or strength is the usual criterion, wide variations in machineability can exist among material showing similar physical properties. The drilling conditions are dependent on requirements for tool life and surface finish.
Page 13: Maintenance
MAINTENANCE Your Safetrack power tool has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper tool care and regular cleaning. CAUTION: To reduce the risk of injury, turn unit off and disconnect battery pack from the machine before installing and removing accessories, before adjusting or changing set- ups or when making repairs.
Page 14 Repair, modification and inspection of Safetrack drilling machines must be done by Safetrack or a Safetrack authorized dealer. The spare parts list will be helpful if presented with the machine to the Safetrack dealer for service when requesting repair or other maintenance.
Page 15: Troubleshooting
- Defective Control Unit Rotation system free stroke too - Loose or defective gear-rack long - Defective rotation system NOTE: Please contact Safetrack if there is machine failure and the problem cannot be corrected with one of the above solutions!!
Page 16: Protecting The Environment
Separate collection. This product must not be disposed of with normal household waste. Should you find one day that your Safetrack product needs replacement, or if it is of no further use to you, do not dispose of it with household waste. Make this product available for separate collection.
Page 17 Spare parts & Exploded view of ST.33 Drawing Article nr. Description Drawing Article nr. Description 360.1001 Screw 360.1034 Pressing strip 360.1002 Motorhousing left side 360.1035 Wiring cover 360.1003 Label (Left side) 360.1036 Frame 360.1004 Motorhousing right side 360.1037 Clampsystem 360.1005 Label (Right side) 360.1038...
Page 18 Spare parts & Exploded view of ST.33...
Page 19 SAFETY RULES 37V/10,5 Ah LITHIUM-ION BATTERY PACK Read all instructions. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. The term “power tool” in all of the warnings listed below refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
Page 20: Operation
A fully discharged battery pack with a temperature between 0° (32°F) and 65° (150°F) will charge in about an hour. • Use battery pack only with the recommended Safetrack charger. • Connect the charger to a power supply. Make sure the power supply is normal household voltage, 240 volts, AC only, 50/60 Hz.
Page 21: Cold Weather Operation
CHARGING A HOT BATTERY PACK If the battery pack is above normal temperature range, the red LED will begin flashing and the green LED will be off. When the battery pack cools down to approximately 65° C, the charger will automatically begin fast charge mode.
Page 22: Battery Charger
SIGNALS ON THE MACHINE Signals well-functioning drilling machine • When the ST.33 drilling machine is well positioned on the work piece, press the main power (white) switch to on the machine. The LED will flash 2x GREEN and then remain lit GREEN. •...
