Summary of Contents for Free The Tone LB-2

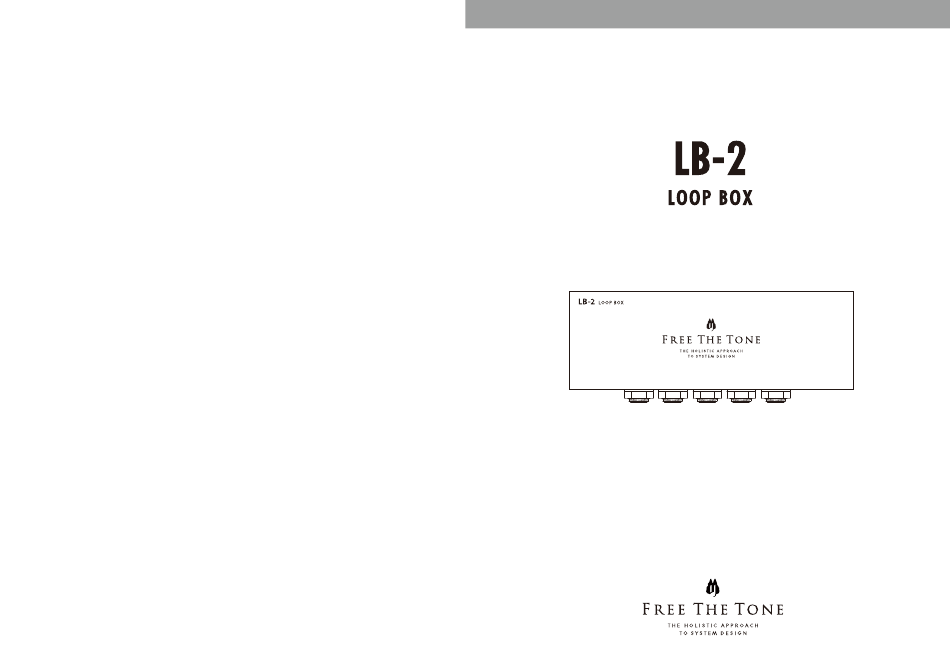

- Page 1 OWNERʼS MANUAL Ver 1.1...
- Page 3 For USA: FA-0905D-JA Power Indicator For UK: FA-0905D-UK This LED illuminates when the LB-2 is properly powered. C1/C2 Terminal For Europe: FA-0905D-EU Connect a latch type switch to this terminal to control ...
- Page 4 2-6 As Mute Box The LB-2 can be used as an input selector to choose one The LB-2 can be used as a mute box that cut the signal fed of two inputs. to the IN terminal from the OUT terminal. The output from Input 2 signal fed to the RETURN terminal is supplied from the OUT terminal is muted when the loop is turned on.
