- Page 1 STINSON OWL-LITE ARROW BOARD MODEL NO. TC12-4884 USER MANUAL OCT 30, 2020...
-
Page 2: Table Of Contents
GENERAL DESCRIPTION ..........................3 INSTALLATION ............................... 4 CAB CONTROLLER ............................7 ARROW BOARD CONTROLLER........................8 TROUBLESHOOTING ............................8 SPECIFICATIONS ............................10 SPARE PARTS ............................... 11 Figure 1 INSTALLATION ELECTRICAL ......................4 Figure 2 INSTALLATION CABLES ........................6 Figure 3 TERMINAL BLOCK WIRING ......................7 Figure 4 CAB CONTROLLER ........................... -
Page 3: General Description

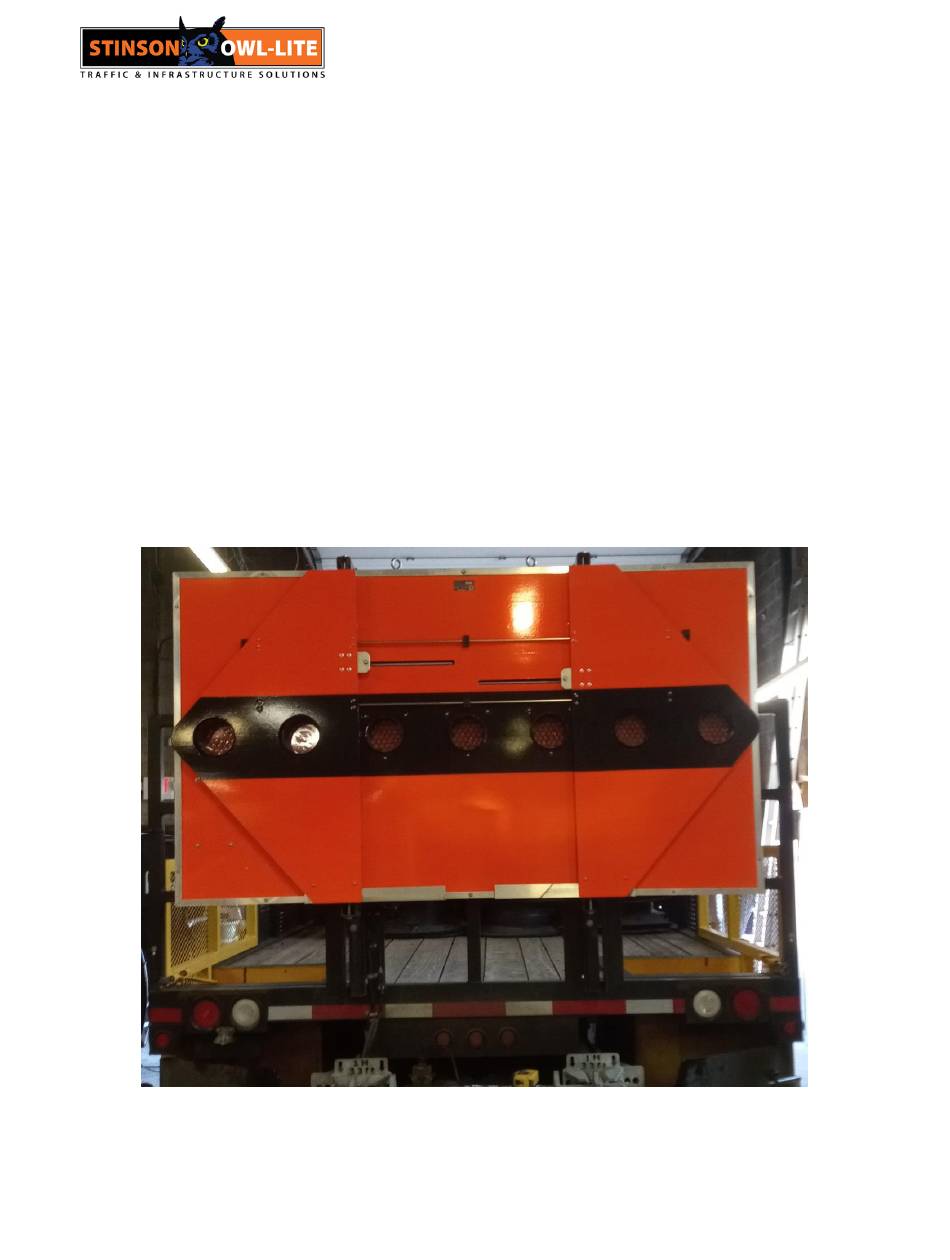

LEDs on the Arrow Board will turn off. See section CAB CONTROLLER for more detail. The TC12-4884 is typically mounted in a vertical position A Cab Controller and connecting cable are typically supplied. Standard cable lengths are 35 ft. For custom cable lengths please contact Stinson Customer Service Custom racks are available that allow the Arrow Board to mount horizontally. -
Page 4: Installation
INSTALLATION The electrical installation is shown in figure 1. The fuse shall be physically located at the Battery terminal and rated at 15 AMP. A 10 AWG cable is required to power the Arrow Board. Figure 1 INSTALLATION ELECTRICAL OCT 30, 2020... - Page 5 OCT 30, 2020...
- Page 6 Figure 2 INSTALLATION CABLES OCT 30, 2020...
-
Page 7: Cab Controller

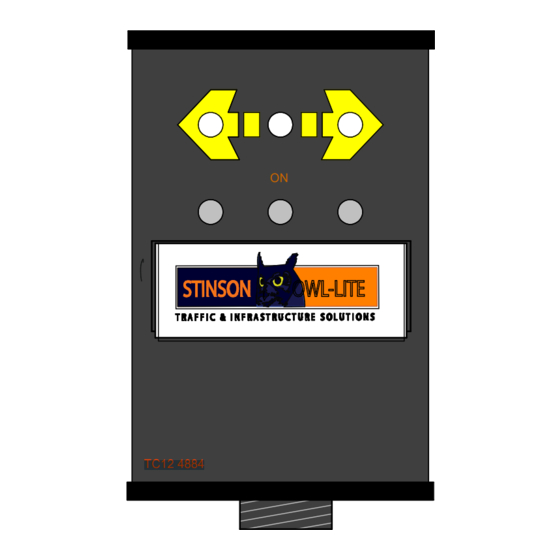

To de activate the Arrow Board, turn the bar switch to the OFF position. The wings will return to the extended position and all LEDs on the Arrow Board will turn off. There is an option for an auxiliary or beacon switch. See Stinson Customer Service. 905-669-2360... -
Page 8: Arrow Board Controller
Figure 4 CAB CONTROLLER ARROW BOARD CONTROLLER The Arrow Board Controller is located inside the Arrow Board. A photo sensor is located on the printed circuit board. A clear window located on the rear panel of the Arrow Board allows light to illuminate the photocell. During nighttime operation, the LED intensity is reduced. - Page 9 Check voltage at Wing Actuator. If the voltage is present, the Wing Actuator has failed. Wing Actuators do not function. If there is no Actuator voltage, check for open Actuator fuse (F1 15 AMP). See fuse legend figure 5. Probably the solar window at the rear of the The Arrow Board LED intensity is low Arrow Board is dirty not allowing the photo sensor to operate at full intensity.
-
Page 10: Specifications
5 AMPS ARROW LEFT LEDS LED 3 5 AMPS SPECIFICATIONS See Stinson Customer Service for specification details 1-800-561-6639 ELECTRICAL Maximum Peak Current Draw with Bar and One Arrow Flashing 3.0 Amps Average Current Draw with Bar and One Arrow Flashing 1.5 Amps... -
Page 11: Spare Parts
Figure 6 OUTLINE DWG SPARE PARTS All major components can be replaced. See Stinson Customer Service for spare part service 800-561-6639. Please see BOM on fig 7 for complete parts description. OCT 30, 2020... - Page 12 OCT 30, 2020...
- Page 13 OCT 30, 2020...
- Page 14 Figure 7 BOM OCT 30, 2020...
- Page 15 Figure 8 INTERCONNECT DWG OCT 30, 2020...
- Page 16 The costs of labour associated with corrections under this warranty shall be reimbursed at a rate deemed reasonable by STINSON if such labour is not performed by STINSON factory approved personnel. Tampering with the serial number or posted safety and operating instructions may constitute a breech of this warranty.
- Page 17 130 Creditstone Road Concord Ontario Canada L4K 1P2 Ph ( 905 ) 669-2360 Fax ( 905 ) 669-3537 Company Address Phone Product Serial # Date Purchased 130 Creditstone Road Concord Ontario Canada L4K 1P2 Ph ( 905 ) 669-2360 Fax ( 905 ) 669-3537 Company Address Phone...
- Page 18 -40 C – 50 C Operational OCT 30, 2020...
