Salsbury Industries 90000 Series Assembly Instructions

Plastic Lockers – 90000 Series
Thank you for selecting Salsbury 90000 Series Plastic Lockers. We are confident that the quality and construction of the lockers will prove to be a
good investment. These instructions are intended to assist you in the assembly of the lockers. Individual job conditions will dictate whether the
lockers must be anchored to the wall, the floor, or both. Please read the entire assembly instruction document before beginning assembly.

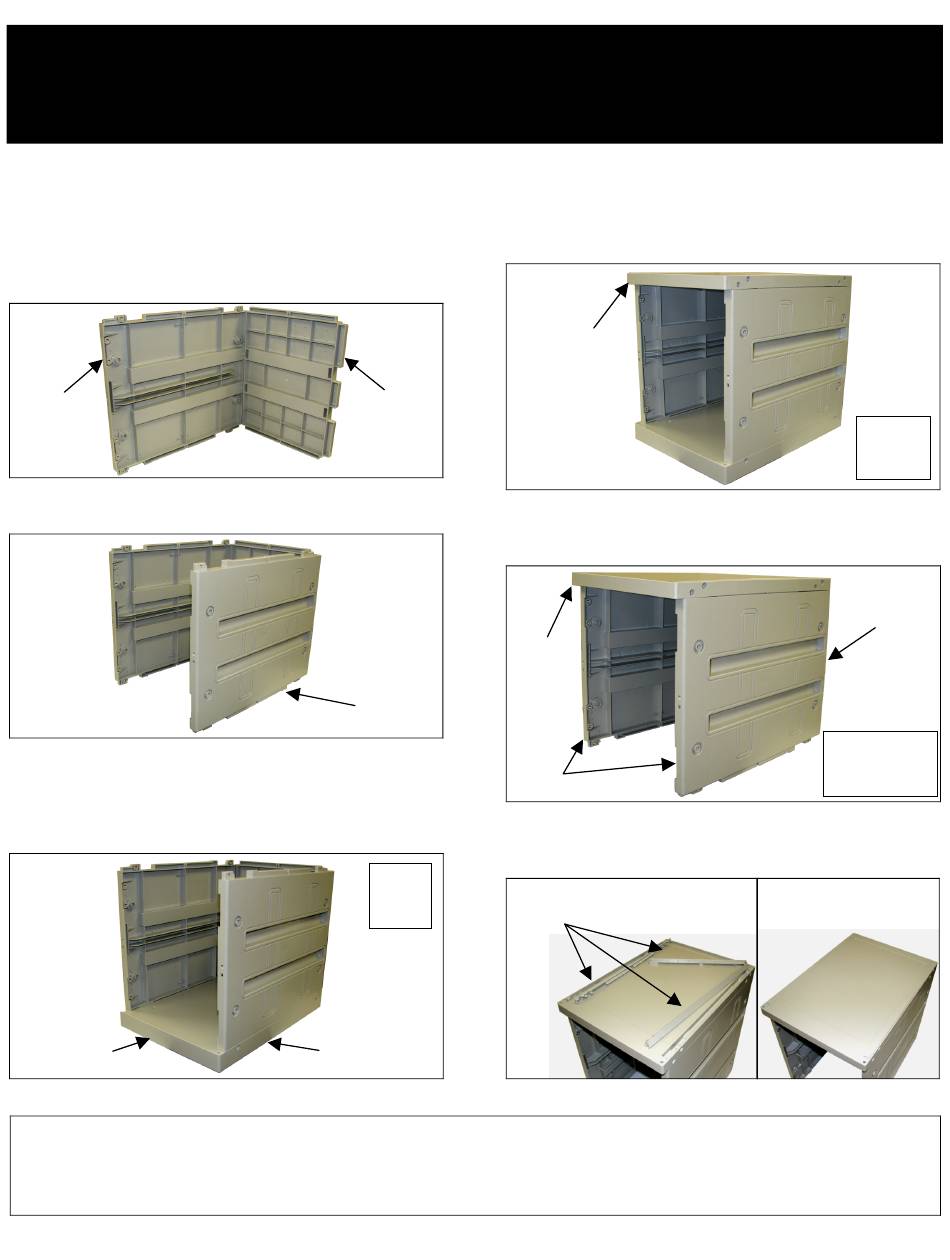

Step 1. Insert the back panel tabs into the pockets along the rear
edge of the side panel. Tap with soft mallet to engage two (2) latch
points.
SIDE
PANEL
Step 2. Press another side panel onto the tabs on the other side of
the back panel. Tap to engage as above.
Step 3. Join and press down the sides-and-back-panel assembly
from step 2 above into the base panel as shown below. The base
panel is the thicker of the six (6) horizontal panels provided. Then
thread four (4) leveling feet provided into the bottom of the base
panel.
BASE PANEL
(THICKER)
Installation instructions are provided as general guidelines. It is advised that a professional installer be consulted. Salsbury Industries assumes no product assembly or installation liability.
Models 90168 & 90368 Ten Tier
Assembly Instructions
BACK
PANEL
OTHER
SIDE PANEL
LOWER
(FIRST)
UNIT
LEVELING FEET
(NOT SHOWN)
SALSBURY INDUSTRIES
nd
1010 East 62 Street, Los Angeles, CA 90001-1598
Phone: 1-800-562-5377
Fax: 1-800-562-5399
Copyright © 2010 Salsbury Industries. All rights reserved. (Rev. 01, 12/8/2010) Page 1 of 3
Step 4. Install a thinner top horizontal panel on top of the unit.
TOP PANEL
(THINNER)
Step 5. Assemble four (4) identical units the same as Steps 1
through 4, except installing the thinner top panel on each instead of
the thicker base panel. These units will not have leveling feet.
TOP
PANEL
SIDE
PANELS
Step 6. If no optional sloping hood is ordered, install the three (3)
filler strips into the recesses in the top panel of one (1) of the upper
units. This will be the uppermost unit after the units are stacked.
FILLER
STRIPS
Int'l Phone: 323-846-6700
Int'l Fax: 323-846-6800
LOWER
(FIRST)
UNIT
BACK
PANEL
UPPER
(2 , 3 , 4 , 5 )
nd rd th th
UNITS
FILLER STRIPS
INSTALLED
