iDus Quick Start Guide
For iDus 401, 416, 420, and InGaAs models
1 Prepare your Facility
Handle the camera and accessories with
care.
Observe anti-static precautions when
installing the camera.
Ensure 100 mm clearance around camera
and power supply vents (Do not block vents
when operating on benchtop).
Operation of the camera close to intense
pulsed sources (e.g. plasma and X-ray
sources) may compromise performance.
Use correct power supply and cables.
Keep dry, <70% humidity non-condensing.
Operate between 0°C and 30°C
Store between -25°C and 50°C.
Refer to the cooling guidelines in your user
manual for further information on use of
optional water/coolant systems.
Refer to the user manual for further information
2 Unpack the Camera
Camera Essentials
Hex Key Set

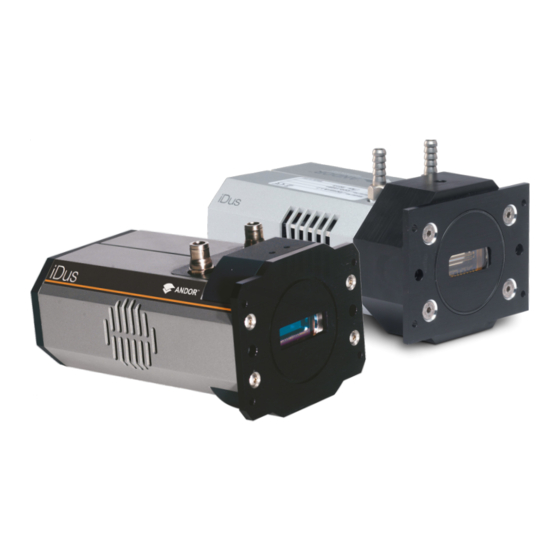

iDus Camera
(model as ordered)
Documentation
scan or visit:
andor.oxinst.com/welcome
3 Install Software (SDK2 or Solis)
You must have administrator access on your PC to perform this installation.
These instructions cover installation of both Andor Solis and Andor SDK if ordered. A copy of the software is provided
within the camera box. Additionally, the latest software files are available to download on request, please sign in or
create an account at andor.oxinst.com/downloads
Windows: Switch on the PC, run the setup exe from the supplied copy or the downloaded file: e.g. AndorSDK2Setup-
<version>.exe
1. Confirm the version of software (minimum is v2.1x).
2. Follow the on screen prompts.
3. Select the installation directory when prompted.
4. If prompted for camera type select iDus.
5. On the final window click on "Install". Continue to follow the on screen prompts.
6. To complete the installation, when prompted select "Yes, restart the computer now" and click on the finish button.
Linux:
For detailed instructions on how to install the SDK drivers on Linux please refer the Andor SDK2 Manual, available at
andor.oxinst.com/downloads.
For Andor spectrographs, please see the quick start guide for specific spectrograph model software requirements.
Cables
Coolant Pipes USB 2.0 Cable
(hose inserts)
Software Country Specific
(copy supplied)
Power Cord
Trigger Cable
1 x BNC to SMB
Power Supply
