Summary of Contents for Nextech YN8040
- Page 1 YN8040 Gigabit PoE Injector Instruction Manual...

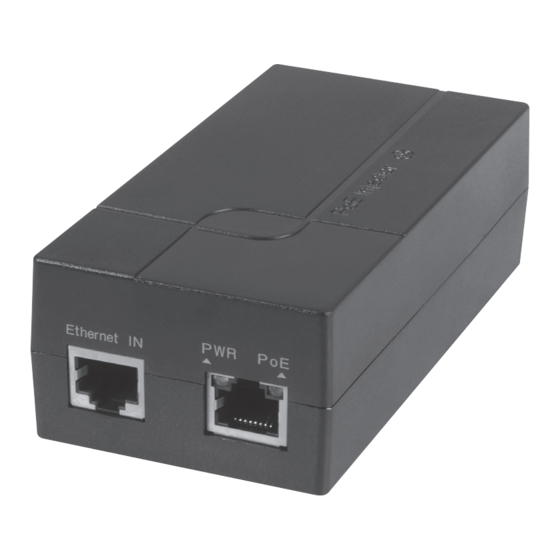

- Page 2 BOX CONTENTS: 1 x Gigabit PoE Injector 1 x Power Supply Lead PRODUCT DIAGRAM: LED Status Indicators PoE Port Ethernet Port...
- Page 3 LED INDICATOR DESCRIPTION: LED Status Indicator Status Description Working Power Power Off PoE Output Working Flashing Short Circuit / Overload No PoE / Power Output CONNECTION DIAGRAM:...
- Page 4 OPERATION: Connect the power supply lead in to the socket on the PoE injector. Connect the mains power supply lead to a 240VAC power outlet. Plug in the Ethernet cable in to the Ethernet port of the PoE injector. Connect your required PoE device using an Ethernet cable (not included) to the PoE port of the injector.
- Page 5 SAFETY INSTRUCTIONS: • Ensure the unit is placed in a well ventilated area. • Do not position the unit close to any heating source or in direct sunlight. • Ensure the unit does not come in to contact with any water or moisture as it may damage the unit.
