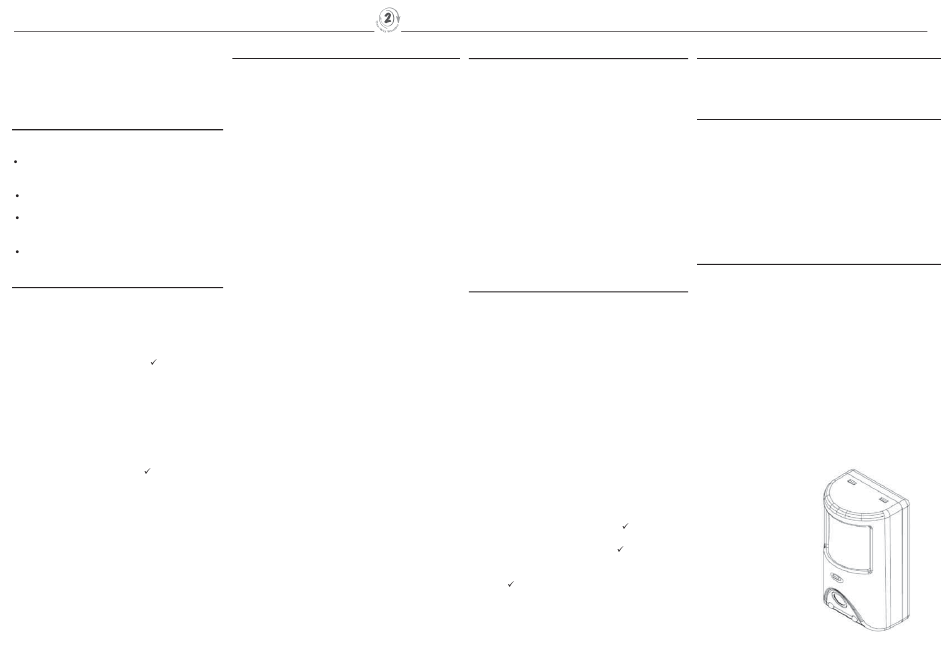

Electronics Line 3000 EL-4755 Quick Start Manual

2-Way Video verification PIR detector
The EL-4755 is a 2-Way wireless PIR detector
camera designed for use with Electronics Line
iConnect 2-Way system.
Note: Each iConnect 2-Way up-to-32-zone
system can support up to eight PIR detector
cameras
Location of Detector
Consider the following before mounting the
detector:
Select a location from which the pattern of
the detector is most likely to be crossed by
a burglar, should there be a break in.
Do not place bulky objects in front of the
detector.
Avoid a location that comes in direct
contact with radiators, heating/cooling ducts
or air conditioners.
Do not place the detector in front of
windows subject to direct sunlight or drafts.
Registration
The EL-4755 must identify itself to the iConnect
2-Way receiver as follows
1. Set the system to registration mode.
a. Go to the main menu and select
[9]>[1]>[1] (Programming > Devices >
Zones)
b. Select a zone and press ' '
2. Unscrew the casing back
3. Insert the supplied batteries into their battery
holders (See Fig. 2-4). The detector will send
a transmission, which if successfully received
by the system will generate a confirmation
sound. If no confirmation sound is heard,
send another transmission by pressing and
releasing the tamper switch of the device.
4. After the detector is successfully registered the
display shows: Save? Press
to confirm and
continue entering other parameters for the
chosen device (See section below). It is possible
to press X to go back and enroll additional
zones.
Note: To delete a PIR detector from the
system refer to the Quick Installer manual.
Parameters Setting by the iConnect
As a 2-Way detector, the EL-4755 parameters can
be modified only from the iConnect 2-Way system.
For more information refer to the system installer
guide .
Go to the main menu and select [9]>[1]>[1]>[11]
(Programming > Devices > Zones > Sensor Par.)
(default in bold):
1. LED: ENABLED/DISABLED
2. PULSE (The pulse counter determines the
amount of beams that need to be crossed
before the sensor will produce an alarm, with 1
being more sensitive.):1, 2
3. ALARM DELAY (The delay between reporting
detections to the main unit.): 1–20 minutes (3)
4. CAMERA RESOLUTION: VGA (640X480) /
QVGA (320X240) / QQVGA (160X120)
5. COLOR: COLOR / Black and White
6. COMPRESSION: HIGH / LOW (more/less
distortion)
7. FLASH: ENABLED / DISABLED
8. # OF PICTURES: 1–9; 1–5 VGA (3)
9. For Future Use
10. PICTURE DELAY: 0–480 MS (480)
11. USER MONITOR: ENABLE / DISABLE
12. ZONE ASSIGNMENT (Movement detection in
any of the up-to-four specified zones triggers
the camera to take a picture) 00-00-00-00
Transmitted pictures are visible through the
web interface:
1. Access the supplied IP through iPhone
or web browser
2. Input access credentials
3. Click "Video" to view captured still
pictures and configure settings.
Installation Instructions
Note: Before permanently mounting
detector, test the transmitter from the exact
mounting position. If necessary, improve the
position of the transmitter. The recommended
height is 2.2m (6.6 ft), See Figures 3&4.
1. [If the unit is screwed together] Unscrew the
casing back.
2. Knock out the mounting holes of the mounting
bracket and attach it to the wall, as appropriate.
(See Fig. 1-3)
3. To use the rear tamper switch, insert a screw into
the rear tamper mounting hole located in the lower
center of the bracket (See Figure 2-1). When the
bracket is removed from the wall, the screw
causes the tamper release to break away from the
bracket and the rear tamper switch is released
4. Attach the screw provided in the detector kit to
the bottom of the mounting bracket (See Figs. 1
and 2, position 2 ).
Operation Modes:
Warm-up Time: The detector will need to warm up
for the first 90 seconds after applying power.
Walk Test Mode: A walk test is performed in order
to determine the lens coverage pattern of the
detector (See Figure 3). Walk Test mode cancels
the delay time between detections, enabling you to
perform an efficient walk test.
To walk test the detector:
1. Set the iConnect 2-Way to Walk test mode
(Quick key 7>03>4).
2. Walk across the scope of the detector according
to the detection pattern selected.
3. Confirm that the LED activates and deactivates
accordingly. Wait for ten seconds after each
detection before continuing the test.
4. After completing the walk test set the system to
normal operation mode.
To test the detector camera:
1. Set the iConnect 2-Way to camera test mode
(Quick key 7>03>5). Confirm with ' '.
2. [If more than one PIR camera zone is defined]
Select a defined zone and press ' '.
3. In the displayed: ⌧ SNAPSHOTS, choose the
number (1-9) of snapshots to be taken and
press ' ' to transmit the snapshots.
EL-4755
LED Indication:
the
The LED indicator is lit every time a transmission is
made. The LED can be enabled / disabled by
programming.
Battery Replacement
In case of a low battery (2.5VDC or less), the
sensor low battery condition is reported to the
system and low battery message is displayed.
To replace the battery:
1.
Unscrew the casing back.
2.
Remove the spent batteries and replace them.
Re-attach the casing front and remount unit.
(See Fig. 1-1).
Technical Specifications
Antenna: Built-in; Internal
Frequency: 868.35MHz*, 433.92MHz
Power: 3.6VDC AA Lithium Battery (x 2)
Caution: Fire, explosion and severe burn hazard! Do not
recharge, disassemble or heat above 100°C (212F).
Current Consumption: 200mA (Capture with Flash)
42µA (standby))
Pyroelectric Sensor: Dual Element
Maximum Coverage: 14 x 14m
Pulse Count: 1 or 2
LED Indicator: Selectable
Digital Adaptive Temperature Compensation
RFI Immunity: According to EN 50130-4
Operating Temperature: 0 to 60°C
Fire Protection: ABS Plastic Housing
Dimensions: 110 x 62 x 50mm
Screw recommended: ST 2.9x22
DIN 7981 (ISO 7049)
* Complies with EN-50131 2-
2 Grade 2 Class II,
Power Supply Type C
