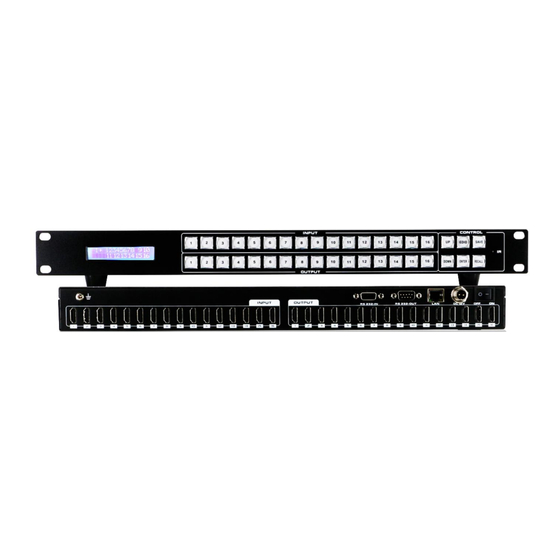

- Page 1 USER MANUAL Fixed 4K2K 16x16 HDMI Matrix Switcher with EDID management FX-1600E Version: V2.0.1 WWW.FLEXPORT.COM.BR...
- Page 2 To protect the device and operating personnel from electrostatic discharge, you need to check and ensure that the device is grounding well before the device is powered on. Please observe the following when you install, use, maintain this equipment. Make sure the device ground connection. Important Safety Instructions WWW.FLEXPORT.COM.BR...
-
Page 3: Warnings Of Fcc
-- Connect the equipment into an outlet on a circuit different from that to which the decoder is connected. -- Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. WWW.FLEXPORT.COM.BR... -
Page 4: Table Of Contents
6. Panel description ........................... 4 7. Matrix Switcher control ......................... 6 Remote Control ..........................6 WEB GUI Browser control ........................ 9 Application(MCS) Control......................... 9 The 3rd Party Control command ....................11 8. Common Problem Shooting ......................12 9. After-Sales ........................... 12 WWW.FLEXPORT.COM.BR... -
Page 5: Product Introduction
Input ports 16 * HDMI ports, 1* RS-232(control), 1 * RJ-45(control) Output ports 16 * Female HDMI ports, 1* RS-232(control) HDMI Distance 10m/30ft for 4K30, 15m/45ft for 1080P@60Hz Human-body Model: ± 8kV (Air-gap discharge) ESD Protection ± 4kV (Air-gap discharge) WWW.FLEXPORT.COM.BR... -
Page 6: Connection Diagram
480 * 252 * 44( mm) Weight 3.5Kg Operating Temperature 0 ºC~40 ºC/32 ºF~104 ºF Storage Temperature −20 ºC~60 ºC/−4 ºF~140 ºF 4. Connection Diagram 5. Packing Name Unit FIX-MANAGER-1600-E Pcs. DC 12V5A power adapter Remote Control 6. Panel description Front panel WWW.FLEXPORT.COM.BR... - Page 7 ④ RS232 IN: Female RS232 port for the R232 control ⑤ RS232 OUT: To control the surround RS232 equipment ⑥ LAN: for the IP/TCP control, the default IP address is 192.168.1.80 ⑦ DC12V: power supply port ⑧ ON/OFF: power off/on switch WWW.FLEXPORT.COM.BR...
-
Page 8: Matrix Switcher Control
After opening the browser, users can type the matrix switcher IP address and press enter: The default user name is admin and the password is admin. After login, it will turn to “Home” interface, users can do the sources switching, scenes recall and save. WWW.FLEXPORT.COM.BR... - Page 9 8 characters and it’s not support the blank between the characters. After users changed the names, need to click “Submit” then this interface will refresh automatically. Through this interface, users also can use the RS232 OUT on the back of matrix switcher to WWW.FLEXPORT.COM.BR...
- Page 10 Setup interface is for users to setup the IP address, baud rate, Buzzer on/off or the language selections, after changed the IP address, will need to reboot the matrix switcher. Account interface is for users to change the login user name and password, the default user name and password is admin. WWW.FLEXPORT.COM.BR...
-
Page 11: Application(Mcs) Control
Click Submit to login after typing the correct user name and password, and it will turn to the home interface for the sources Switch, Scene Recall/Save: Users also can rename the input, output and scenes by“Custom” tap: WWW.FLEXPORT.COM.BR... - Page 12 Users can setup the EDID for each input by the “EDID” Tap: Users can setup the IP address, buzzer on/off by the “Setup” Tap: Users can login user name and password by the “Account” Tap: WWW.FLEXPORT.COM.BR...
-
Page 13: The 3Rd Party Control Command
Save current scene to [X], [X] means number keys from 1 to 9 Load the input/output switching saved in [Y], [Y] means number keys Recall[Y]. from 1 to 9 BeepOn. Turn on the beep sound BeepOff. Turn off the beep sound WWW.FLEXPORT.COM.BR... -
Page 14: Common Problem Shooting
Company or its authorized agent, the company will not have to bear additional obligations. Except using the product properly in the proper application or normal usage. WWW.FLEXPORT.COM.BR...
