Polaroid PLSB90 User Manual

Premium soundbar
Hide thumbs
Table of Contents

Advertisement

Quick Links

PLSB90
Premium Soundbar
User Manual

Advertisement

Table of Contents
loading

Related Manuals for Polaroid PLSB90

Summary of Contents for Polaroid PLSB90

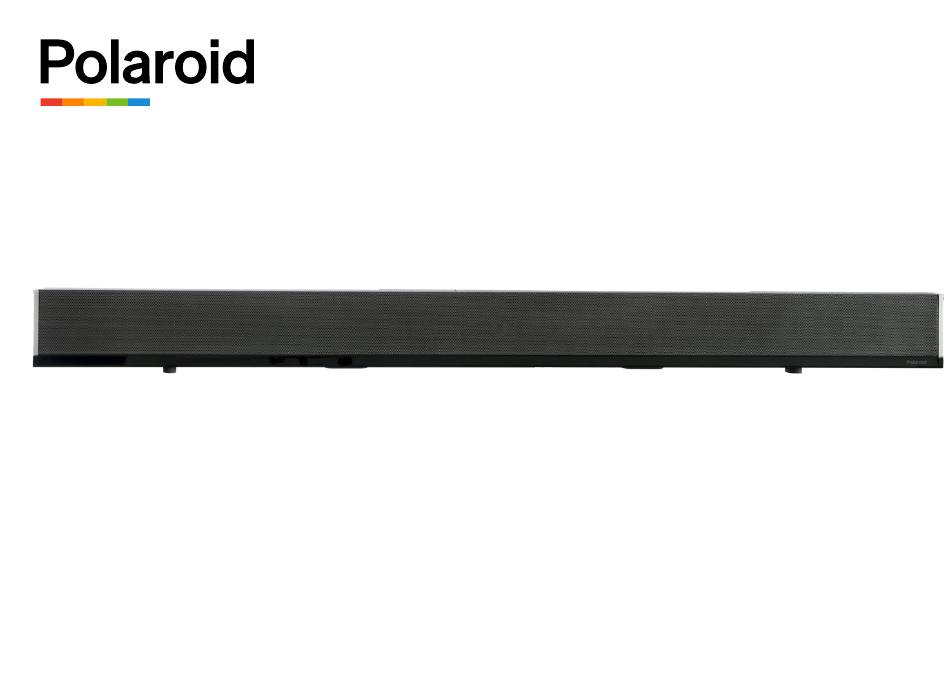

  • Page 1 PLSB90 Premium Soundbar User Manual...

  • Page 2: Welcome

    Welcome Welcome to your experience with Polaroid products. All Polaroid products we bring to you are manufactured to the highest standards of performance and safety. As part of our philosophy of customer service and satisfaction, your purchase is backed by a comprehensive 1 Year Warranty.

  • Page 3: Table Of Contents

    Contents Welcome Operation General Operation Unpack and Prepare What's in the Box Bluetooth ® Wall Mount Installation Pack Pairing Bluetooth Devices ® Installation Bluetooth Playback ® Wall Mounting Instructions Troubleshooting Connect to Power Specifications Controls and Connections Compliance and Responsible Disposal Get to know your Soundbar Buttons on the Soundbar Rear Ports on the Soundbar...

  • Page 4: Unpack And Prepare

    Unpack and Prepare What's in the Box Before setting up your new product, check you have everything: Premium Soundbar Remote Control AAA Batteries (2) Wall Mount Installation Pack Audio Cable AC Adaptor Warranty Certificate General Safety Warnings User Manual 4 | UNPACK AND PREPARE...

  • Page 5: Wall Mount Installation Pack

    Wall Mount Installation Pack The illustration below shows the contents of the wall mount installation • Place the soundbar on a level surface. pack. These are the parts you will need if wall mounting your soundbar. • Place the soundbar away from any source that may generate heat or vibrations.

  • Page 6: Installation

    Installation This soundbar can sit free-standing on a surface, or it can be mounted to a wall. Place on a secure, flat surface. Make sure the soundbar is standing on its rubber pads (on the left and right sides of the soundbar) and no other area of the bottom of soundbar is touching the surface.
  • Page 7 Wall mounting instructions are on the following pages. • Wall-mounted installation must be carried out by qualified personnel only. Incorrect assembly can result in severe personal injury and property damage! If you intend to install this product yourself, you must check for installations such as electrical wiring and plumbing, which may be hidden inside or behind the wall.

  • Page 8: Wall Mounting Instructions

    Wall Mounting Instructions Use a pencil to make drill hole marks on the wall for the anchors. Make sure the marks are level before drilling. Use a 6mm bit and power drill (not supplied) to drill holes on the marks. 8 | UNPACK AND PREPARE...
  • Page 9 Insert plastic anchors into the holes and push in until they are flush with the wall. Drive the screws into the plastic anchors and tighten until the screw head is approximately 3mm from the wall. Slide the soundbar onto the screws which are fixed to the wall.

  • Page 10: Connect To Power

    Connect to Power Make sure the soundbar is switched off at the power outlet until you have finished connecting your cables. Don't forget to plug in the soundbar to the power outlet. Leave the power switched off until installation is finished. 10 | UNPACK AND PREPARE...

  • Page 11: Controls And Connections

    Controls and Connections Get to know your Soundbar LED display Front view Buttons on the Soundbar : Press to go to previous song. Hold to decrease volume. (POWER/SOURCE) : Press to turn on. Press to select your preferred input source. Press and hold to put in standby mode.

  • Page 12: Rear Ports On The Soundbar

    Rear Ports on the Soundbar Play your stored media files (supported file STORAGE codecs and extensions may vary). Use the supplied 3.5mm audio cable to connect the headphone socket of the AUX IN SOUND connected audio device, such as a media player, to the AUX socket on the soundbar.
  • Page 13 HDMI (ARC) The ARC (Audio Return Channel) function allows you to send audio TO TV (ARC) input from an ARC-compliant TV to an SOUND HDMI ARC-compliant audio device without the need for an additional audio cable connection. CONTROLS AND CONNECTIONS | 13...
  • Page 14 HDMI (ARC) To use the ARC function, make sure the When you use ARC connection soundbar's TO TV (ARC) socket is connected to your TV, the audio output in via HDMI cable (not included) to the HDMI (ARC) the TV settings menu must be socket of your ARC compliant TV.

  • Page 15: Remote Control

    Setup Remote Control Insert two AAA size batteries according to the polarity markings (+ / -) inside the compartment. Make sure the batteries are correctly aligned and properly pushed into place. AAA size batteries included Precautions When Using Batteries • Do not use old and new batteries together.

  • Page 16: Using The Remote Control

    Using the Remote Control Remote Use To use the remote, point it towards the remote sensor at the front of the soundbar. The remote • Do not drop, step on or will not operate if its path is blocked. otherwise impact the The remote has a range of up to about 6 remote control.

  • Page 17: Remote Overview

    Remote Overview (POWER): Switch the soundbar on or standby : Mute the sound INPUT: Switch between the input : Skip to the next track sources : Start or pause playback VOL+ : Increase the volume level TRE +: Increase the treble : Skip to the previous track BASS +: Increase the bass VOL- : Decrease the volume level...

  • Page 18: Operation General Operation

    Operation Input Modes General Operation Input Display Function Action Standby ----- Press the button on the Turn the right side of the soundbar, or Bluetooth ® soundbar press the (POWER) button on the remote control to switch the soundbar on. Press and hold the Turn the button on the right side of...
  • Page 19 Using the HDMI (ARC) input • You will need an audio source with a HDMI (ARC) audio output and a HDMI (ARC) audio cable (not included). • Connect the HDMI (ARC) audio cable to the HDMI (ARC) on the audio source and the HDMI (ARC) input on the soundbar.
  • Page 20 Using the USB • Insert a USB into the USB port to play music through the soundbar. • Press the INPUT button on the remote control to switch to USB mode or press the button on the soundbar repeatedly. • Use the remote control to play/pause and/or skip to the next/previous track. Press the number buttons to access a specific track.

  • Page 21: Bluetooth

    Activate Bluetooth on your compatible device, and set it to search for compatible devices. If a mobile phone on which you are playing music Select the name: 'POLAROID PLSB90' from the list receives a call, the music will be interrupted. The of found devices.

  • Page 22: Bluetooth ® Playback

    Bluetooth Playback ® Function Action Increase the Hold the button on the soundbar or press the VOL + on the Volume remote. Decrease the Hold the button on the soundbar or press the VOL - on the Volume remote. Press on the remote or press the play/pause button on the Play/Pause soundbar.

  • Page 23: Troubleshooting

    Troubleshooting If you have problems with the soundbar, check below for advice. If you don't find a solution here, contact After Sales Support on 1300 886 649. Problem Solution • Ensure that the power adaptor is properly connected. • Ensure that there is power at the AC outlet. No power •...
  • Page 24 Problem Solution Soundbar • Ensure you have unpaired the previously paired Bluetooth device from the ® not found in soundbar. the Bluetooth device list when • Ensure the Bluetooth function is activated on your Bluetooth enabled device. ® ® pairing •...
  • Page 25 Problem Solution • Make sure the input source is set to ARC; the LED will display "ARC". • Make sure your TV or external device supports ARC function and connect the HDMI cable to the ARC port of the TV or external device. •...
  • Page 26 Problem Solution • Increase the volume of the soundbar to make sure it's not muted. Make sure Bluetooth is connected successfully - if not connected, No sound in BT the LED will flash 'Bt'; once connected, the LED will display 'Bt'. mode •...

  • Page 27: Specifications

    Distributed by Tempo (Aust) Pty Ltd, Bluetooth pairing operation ® Up to 10 metres range – distance PO Box 6056, Frenchs Forest DC 2086 Bluetooth pairing name POLAROID PLSB90 ® Bluetooth pairing password 0000 ® DC 5V, 500mA (for playback only, USB output...

  • Page 28: Compliance And Responsible Disposal

    Compliance and Responsible Disposal Compliance Packaging This product complies with the Australian The packaging of your product has been Safety Standard AS/NZS 60065 to ensure the selected from environmentally friendly materials safety of the product. and can usually be recycled. Please ensure these are disposed of correctly.
  • Page 29 Notes...
  • Page 30 Notes...
  • Page 31 Notes...
  • Page 32 1300 886 649 Polaroid, Polaroid Color Spectrum and Polaroid Classic Border Logo are trademarks of PLR IP Holdings, LLC, used under license . PLR IP Holdings, LLC does not manufacture this product or provide any Manufacturer’s Warranty or support.
