CAM8100-D
Digital Camera Module
User Manual
th
Version 1.0 – Jun. 30
, 2014

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CAM8100-D and is the answer not in the manual?

Questions and answers

Summary of Contents for Embest CAM8100-D

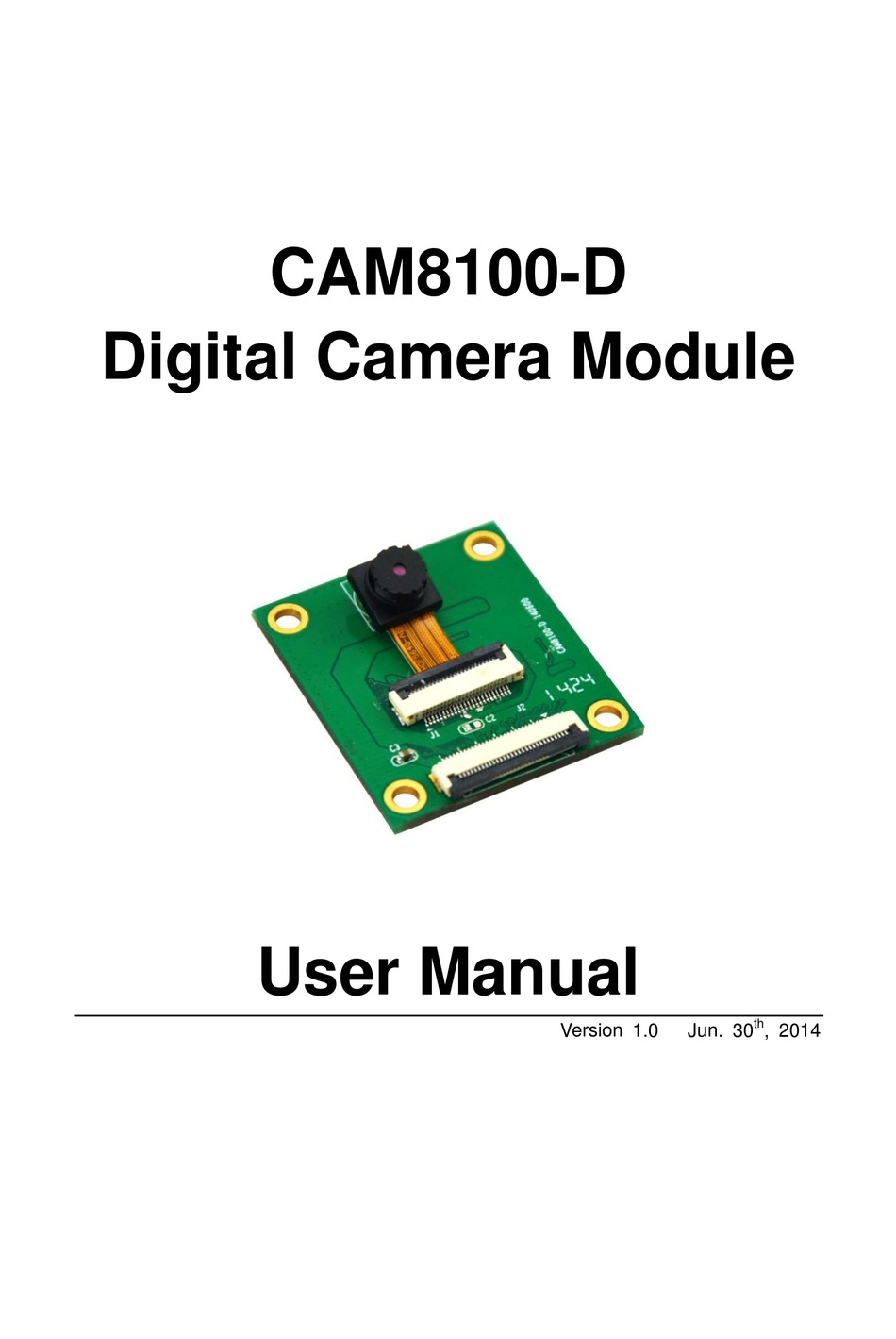

  • Page 1 CAM8100-D Digital Camera Module User Manual Version 1.0 – Jun. 30 , 2014...
  • Page 2 Embest Technology Copyright Statement:  CAM8100-D and its related intellectual property are owned by Shenzhen Embest Technology Co., Ltd.  Shenzhen Embest Technology has the copyright of this document and reserves all rights. Any part of the document should not be modified, distributed or duplicated in any approach and form without the written permission issued by Embest Technology Co., Ltd.

  • Page 3: Table Of Contents

    Packing List ....................1 Product Features ................... 1 Chapter 2 Interface Definition ..................3 Chapter 3 Use of CAM8100-D ..................5 Hardware/Software Requirements ..............5 Hardware Connections .................. 5 Using CAM8100-D ..................6 Technical Support and Warranty ..................8 Copyright © 2014 Embest Technology...

  • Page 4: Chapter 1 Product Overview

    Chapter 1 Product Overview 1.1 Brief Introduction CAM8100-D is a new 5-megapixel CMOS camera module designed by Embest Technology. It used a 1/4" color image sensor with OmniBSI™ technology, support up QSXGA (2592x1944) image resolution, featured with complete user control and output data format conversion;...
  • Page 5 Automatic image control functions:  Automatic exposure control (AEC),  Automatic white balance(AWB)  Automatic band filter (ABF)  Automatic 50/60 Hz luminance detection  Automatic black level calibration (ABLC)  Compatible Boards: RIoTboad Copyright © 2014 Embest Technology CAM8100-D User Manual...

  • Page 6: Chapter 2 Interface Definition

    Embest Technology Chapter 2 Interface Definition CAM8100-D has a camera interface, connect to an evaluation board with a 30PIN FPC Cable e for implementing the function of image capture. See below for the camera location. Camera interface location Figure 2-1...
  • Page 7 Horizontal synchronization VDD50 Vertical synchronization VDD33 3.3V XCLKA Clock output a XCLKB Clock output b Field identification Write Enable STROBE Flash strobe control signal IIC master serial clock IIC serial bidirectional data Copyright © 2014 Embest Technology CAM8100-D User Manual...

  • Page 8: Chapter 3 Use Of Cam8100-D

     CAM8100-D can only work under Android systems temporarily. 3.2 Hardware Connections As shown in the following image, please use the 30Pin FPC cable to connect CAM8100-D camera module to the camera interface of RIoTboard, then connect a display device (LCD8000-97C is used here) and a power adapter to the board.

  • Page 9: Using Cam8100-D

    1） After Android system boots up, use your finger to touch the icon at the bottom of Android home interface as shown blow to enter application list. Figure 3-2 Android Home Interface Copyright © 2014 Embest Technology CAM8100-D User Manual...
  • Page 10 Embest Technology 2） Touch the Camera icon in the application list as shown below; The images captured by the camera module will be displayed on your screen. Figure 3-3 Run Camera Application Copyright © 2014 Embest Technology CAM8100-D User Manual...

  • Page 11: Technical Support And Warranty

    Embest Technology Technical Support and Warranty Technical Support Embest Technology provides its product with one-year free technical support including:  Providing software and hardware resources related to the embedded products of Embest Technology;  Helping customers properly compile and run the source code provided by Embest Technology;...
  • Page 12 4） Please contact technical support if there is any repair request. Note:  Embest Technology will not take any responsibility on the products sent back without the permission of the company. Contact Information Copyright © 2014 Embest Technology...
  • Page 13 Fax Number: +86-755-25616057 Email Address: globalsales@embest-tech.com Company Information Company Website: http://www.embest-tech.com Company Address: Tower B 4/F, Shanshui Building, Nanshan Yungu Innovation Industry Park, Liuxian Ave. No. 1183, Nanshan District, Shenzhen, Guangdong, China (518055) Copyright © 2014 Embest Technology CAM8100-D User Manual...
