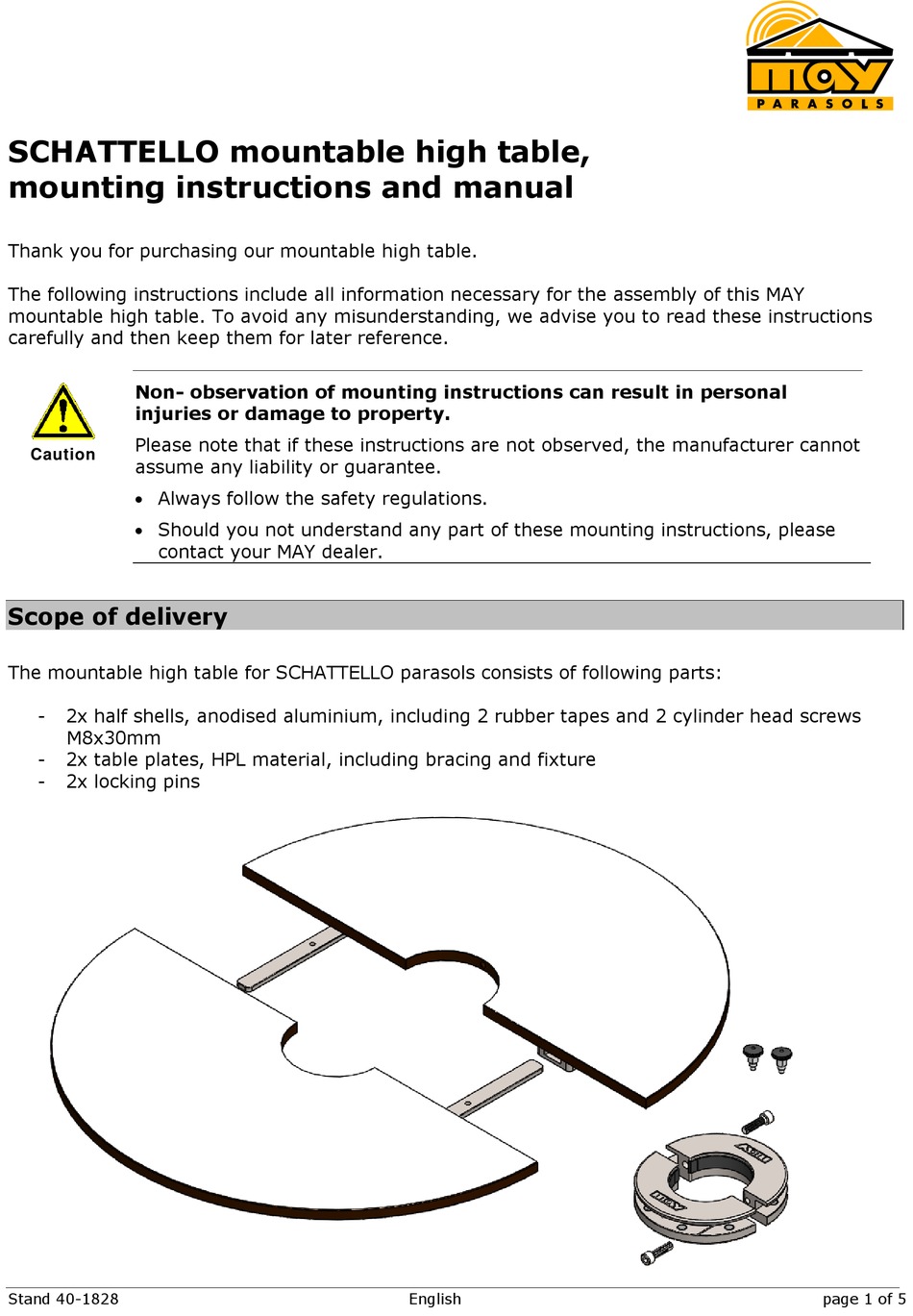

SCHATTELLO mountable high table,
mounting instructions and manual
Thank you for purchasing our mountable high table.
The following instructions include all information necessary for the assembly of this MAY
mountable high table. To avoid any misunderstanding, we advise you to read these instructions
carefully and then keep them for later reference.
Non- observation of mounting instructions can result in personal
injuries or damage to property.
Please note that if these instructions are not observed, the manufacturer cannot
Caution
assume any liability or guarantee.
Always follow the safety regulations.
Should you not understand any part of these mounting instructions, please
contact your MAY dealer.
Scope of delivery
The mountable high table for SCHATTELLO parasols consists of following parts:
-
2x half shells, anodised aluminium, including 2 rubber tapes and 2 cylinder head screws
M8x30mm
-
2x table plates, HPL material, including bracing and fixture
-
2x locking pins
Stand 40-1828
English
page 1 of 5
Advertisement
Table of Contents
Summary of Contents for MAY SCHATTELLO 357453
- Page 1 Thank you for purchasing our mountable high table. The following instructions include all information necessary for the assembly of this MAY mountable high table. To avoid any misunderstanding, we advise you to read these instructions carefully and then keep them for later reference.
- Page 2 Mounting the aluminium half shells This step has only to be done once. The “half shells” remain at the parasol permanently, even if the table plates are disassembled and the parasol is closed. Rounded edges and chamfers make sure to avoid chafe marks at the canopy, in case of wind, when the parasol is closed. This applies only if the parasol has been closed properly as described in the operating manual, chapter „Closing the parasol”.
- Page 3 Mounting the HPL table plates 1. Screw the locking pins into the threads of the fixture and lock them with a flat wrench size 2. Open the locking pins by a 90° turn. 3. Turn the 8 adjustable screws until they no longer stick out, see picture below. Use a hexagon key size 6.
- Page 4 4. Slide the first table plate into one half shell, make sure the centring bolt fits into the centring hole and the edges of the half shell and table plate are parallel. edges parallel 5. Slide the second table plate into the first one, see picture. 6.
- Page 5 7. The table plates may be mounted and demounted daily. This way you can store them securely to avoid theft or damages through vandalism. In case of regular demounting, leave the 8 adjustable screws in a position they don’t fix the table plates (see picture of step 3).
