Profire Energy PF2100 User Manual

4-20ma
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

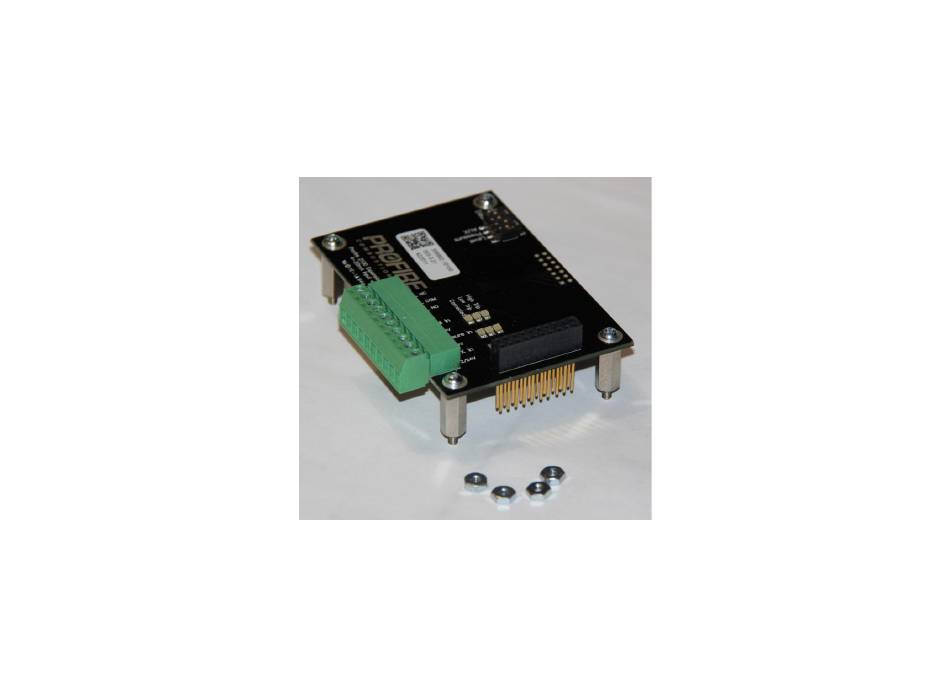

PF2100 4-20mA Input Card
User Manual
v1.2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PF2100 and is the answer not in the manual?

Questions and answers

Summary of Contents for Profire Energy PF2100

  • Page 1 PF2100 4-20mA Input Card User Manual v1.2...

  • Page 2: Table Of Contents

    The Pluggable Header ............................................10 Connecting the “Level” Current Loop Using the Onboard Power Source ............................10 Connecting the “Level” Current Loop Using an External Power Source ............................11 PF2100 4-20mA Input Card User Manual v1.2 June 2, 2021 ©2021 Profire Energy Inc...
  • Page 3 Calibrating the Level Input’s Span (Max Point) ....................................16 Calibrating the “Pressure” Current Loop ....................................... 16 Appendix A – Analog 4-20mA Current Loop Background Info ................................17 Appendix B – Using the PF2100 Menu System ...................................... 18 Menu Structure ..............................................18 Navigating Menus .............................................. 18 Viewing Menu Items ............................................
  • Page 4 “Level” LEDs are Functioning but the PF2100 Won’t Shutdown at the Low Setpoint........................21 Menu 6 Does Not Exist on my PF2100 ....................................... 21 The PF2100 is Reporting an Impossible Level (Higher than the Tank Maximum) or Pressure (Higher than Max Pressure) ............. 21 Version History ............................................... 22 PF2100 4-20mA Input Card User Manual v1.2...

  • Page 5: Specifications And System Requirements

    To check your firmware version, do the following with the PF2100 powered on. Simultaneously hold both the Up and Down buttons on the keypad. If the firmware version of any card does not meet minimum requirements, contact Profire to arrange for a firmware upgrade.

  • Page 6: Description

    Description The 4-20mA Input Card is an Expansion Card designed for use with PF2100 Burner Management Systems. It provides two separate 4-20mA Analog Current Loop Receivers, one for Level and one for Pressure, each of which can be enabled or disabled using a DIP switch on the card. The third loop, the “Auxiliary” Current Loop, is not supported by firmware: 1.

  • Page 7: Level" Current Loop

    A software selectable low and high setpoint can be programmed into the PF2100. The PF2100 will de-energize all valves if the level drops below the low level threshold. Exceeding the high level threshold will toggle the status contacts but will not shutdown or otherwise affect the operation of the burner control system.

  • Page 8: Quick Start Checklist

    □ Disconnect Power to Your PF2100 System. Install and Wiring: □ Install the 4-20mA Input Card in Your PF2100 System. See instructions on page 6. □ Check the Required System Voltage for Your Transmitter. See instructions on page 8. □...

  • Page 9: 4-20Ma Input Card Specifications

    Physical Dimensions (including components): Width 59.1 mm Width (including pluggable header) 68.1 mm Length 85.7 mm Height 25.5 mm Height (including standoff threads) 30.0 mm PF2100 4-20mA Input Card User Manual v1.2 June 2, 2021 ©2021 Profire Energy Inc Page 5...

  • Page 10: Installing The Card

    3. Remove the 4 machine screws and 4 standoffs from the new 4-20mA card that you are about to install. See Figure 4. 4. Attach the 4 standoffs to the expansion card that is already installed in your PF2100 system. Tighten to 4 in*lbs. Do not over tighten or the standoffs may break.

  • Page 11: Procedure When No Expansion Card Is Preinstalled

    Procedure When No Expansion Card is Preinstalled 1. Shut off the power to the PF2100 system. 2. Remove the 4 screws that hold the terminal card in place in the product enclosure. Do not lose these screws as you will need them later. See Figure 7.

  • Page 12: Transmitter Requirements

    Different transmitters will have different power supply requirements. It is important to verify what these requirements are before wiring up the system. If the supply voltage is not high enough, the 4-20mA output of the transmitter may not function properly as it gets closer to 20mA or it may cause the PF2100 system to report a level error.

  • Page 13: Compensating For Cable Length

    20mA Card which will output 15V. 2. Run the PF2100 on 24V – Many transmitters can run on a system voltage of 24V or higher. The Rosemount 2088 can run on as much as 36V. If you change the PF2100’s menu settings to expect 24V using menu 4.8 and then change its power supply to 24V, the “12/24V” pin on the 4-20mA Card will also output 24V which can be used to power the transmitter.

  • Page 14: Electrical Wiring

    The following steps should be followed to wire up the pluggable header on the 4-20mA Input Card. More detailed instructions for each step can be found later in this section of the document. 1. Disconnect power from the PF2100 to prevent accidentally shorting any component of the system. 2. Remove the pluggable header from the 4-20mA Input Card.

  • Page 15: Connecting The "Level" Current Loop Using An External Power Source

    IMPORTANT: Be sure that you do not exceed the current rating of the contacts with whatever equipment you hook up. Use relays if you need to switch higher power devices. Figure 12 PF2100 4-20mA Input Card User Manual v1.2 June 2, 2021 ©2021 Profire Energy Inc...

  • Page 16: Connecting The "Pressure" Current Loop Using The Onboard Power Source

    The “Auxiliary” Current Loop is not currently supported by the current firmware version. Do not connect anything to these pins. Figure 13 Figure 14 PF2100 4-20mA Input Card User Manual v1.2 June 2, 2021 ©2021 Profire Energy Inc Page 12...

  • Page 17: Configuring The 4-20Ma Settings

    “6 – Expansion Modules” will display on the screen. Press the “OK” button to view the first menu item, 6.1. The following table shows the organization of the expansion card menu as implemented in Door Card FW E1.8.217. Refer to the PF2100 User Manual for further details.

  • Page 18: Menu 4 - System Setup

    Follow these steps to configure the menu settings for the 4-20mA Card: 1. If you are unfamiliar with the operation of the PF2100 menu system, review the “Appendix B – Using the PF2100 Menu System” section of this document before proceeding further.

  • Page 19: Calibrating The "Level" Current Loop

    To calibrate the Level Input’s Zero Point, you will need a handheld process calibrator such as the Fluke 725. Follow this procedure to calibrate the zero point: 1. Navigate to Menu 7 and press OK. Cycle through the submenu items until “4-20 Level Zero Calibration = No” is displayed on the PF2100.

  • Page 20: Calibrating The Level Input's Span (Max Point)

    1. Navigate to Menu 7 and press OK. Cycle through the submenu items until “4-20 Level Span Calibration = No” is displayed on the PF2100. 2. Press the Up or Down key to begin the calibration process. The display will now read “Apply 20mA then press OK”.

  • Page 21: Appendix A - Analog 4-20Ma Current Loop Background Info

    2. The transmitter can be powered from the loop. 3. The system has a high degree of immunity to industrial noise which might superimpose voltage offsets onto the loop. PF2100 4-20mA Input Card User Manual v1.2 June 2, 2021 ©2021 Profire Energy Inc...

  • Page 22: Appendix B - Using The Pf2100 Menu System

    Appendix B – Using the PF2100 Menu System Menu Structure The menu system (for door card firmware E1.8.217) is comprised of a status menu followed by six numbered menus containing the system settings and other information. When the system is powered on, it will default to displaying the status menu. Each menu has a number of menu items. The menus are:...

  • Page 23: Reverting An Edited Menu Item Setting

    Setting the System Voltage The PF2100 can be programmed to expect either 12V nominal or 24V nominal for its power source using menu 4.8. This setting only affects the under voltage and over voltage alarm points that the system uses. It does not in any other way affect the system. The PF2100 electronics are designed to operate correctly from about 8.5V to 32V regardless of this menu setting.

  • Page 24: Appendix C - Troubleshooting

    Verify the DIP switch settings using the procedure on page 13. • Verify that the Input Card is seated properly on the terminal card header and that no pins are bent or missing. PF2100 4-20mA Input Card User Manual v1.2 June 2, 2021 ©2021 Profire Energy Inc...

  • Page 25: Level" Leds Are Functioning But The Contacts Won't Toggle At The High Setpoint

    The menu settings are corrupted, the calibration is incorrect, or the card may be physically damaged. • Write down all of your system settings, reset the PF2100 to factory default settings using the procedure on page 19, and then re-enter all of your settings.

  • Page 26: Version History

    2011-11-02 Initial Release • v1.1 2018-11-02 Fixed Level Status Contact Behaviour • v1.2 2021-06-02 Added Pressure Input Functionality • Updated Minimum Voltage Requirements PF2100 4-20mA Input Card User Manual v1.2 June 2, 2021 ©2021 Profire Energy Inc Page 22...
