Summary of Contents for Omcan 46659

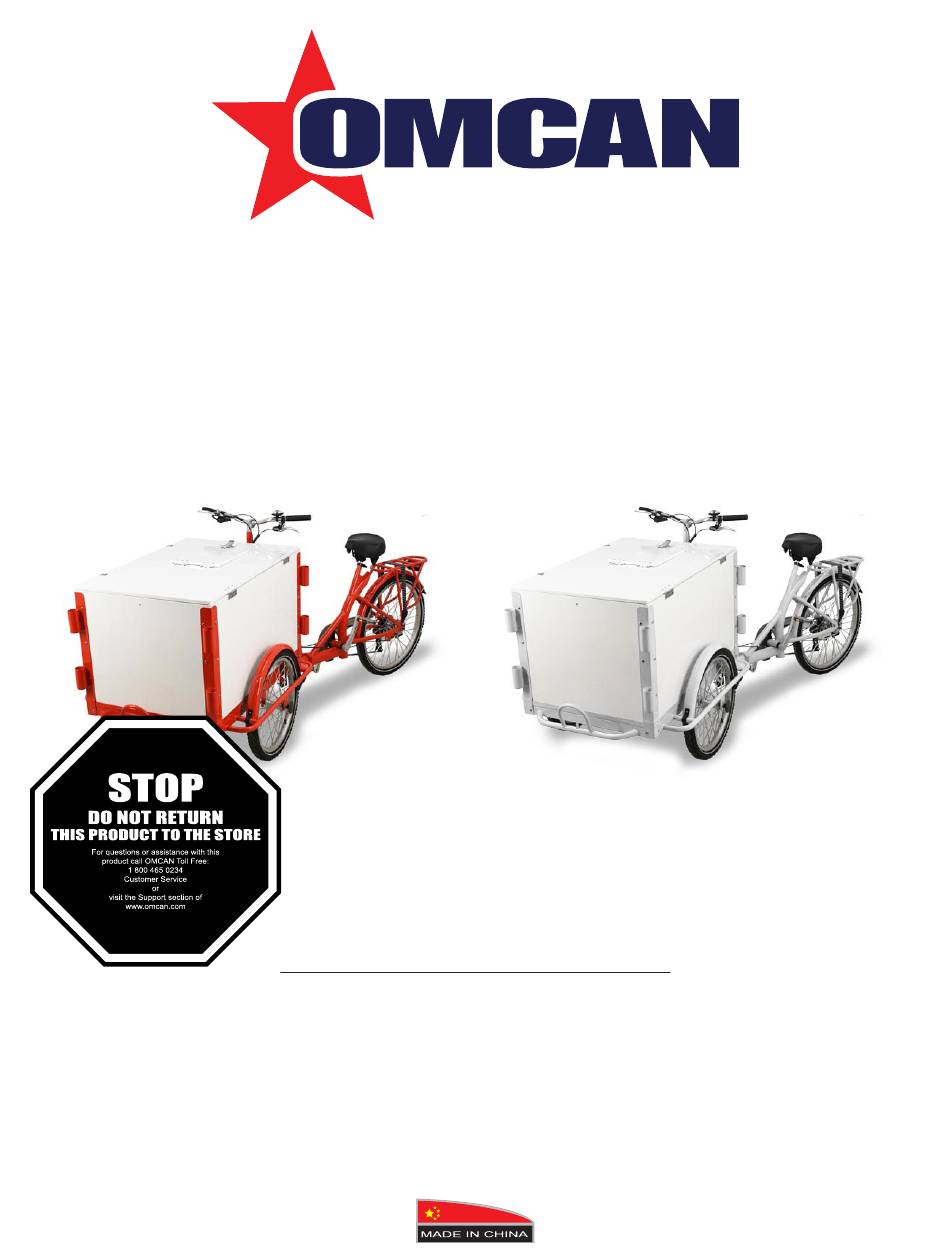

- Page 1 Cargo Bikes Items 46659, 46660, 47411 Assembly Instructions Revised - 01/28/2022 Toll Free: 1-800-465-0234 Fax: 905-607-0234 Email: service@omcan.com www.omcan.com...
-
Page 2: Table Of Contents
Table of Contents Item 46659 / Item 46660 / Item 47411 Section Page General Information --------------------------------------------------------------------------- 3 - 4 Safety and Warranty --------------------------------------------------------------------------- 4 - 5 Technical Specifications ---------------------------------------------------------------------- 5 - 6 Installation --------------------------------------------------------------------------------------- 7 - 8 Figure Drawings ------------------------------------------------------------------------------ 9 - 10... -
Page 3: General Information
If the package has suffered rough handling, bumps or damage (visible or concealed), please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be filled out within three days, from the delivery date shown in the shipping documents. -
Page 4: Safety And Warranty
Si el paquete ha sufrido un manejo de poco cuidado, golpes o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. -
Page 5: Technical Specifications
Safety and Warranty Please see https://omcan.com/disclaimer for complete info. WARNING: The packaging components are classified as normal solid urban waste and can therefore be disposed of without difficulty. In any case, for suitable recycling, we suggest disposing of the products separately (differentiated waste) according to the current norms. - Page 6 Technical Specifications Description Description Handle Bar & Grip Chain Cover & Chain Gear Shift Chainwheel and Crank Brake Lever Pedal Rear Wheel Corner Iron Rear Fender Front Reflector Rear Reflector Front Frame (Bottom Border) Seat Post Lock Front Wheel Seat Post Front Brake Saddle Fender...
-
Page 7: Installation
Installation CONNECTING FRONT FRAME AND REAR FRAME • First insert the rear frame front axle into the front frame hole and put the bearing between them. Note: Dab grease where the Bearing is assembled. • After adjusting the position, screw the nut for fixing. •... - Page 8 Installation ASSEMBLE THE BOX • Assemble the front box onto the front frame (bottom border) as shown in Figure 12 and Figure 9 with screw fixing. Fixing the safety belt and front reflector on the box. ASSEMBLE THE HANDLEBAR Normally use two kinds of handlebar according to customer’s request. U- type handle bar assembly: •...
- Page 9 Figure Drawings...
- Page 10 Figure Drawings...
-
Page 11: Warranty Registration
Warranty Registration Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at the perforation and then send to the address specified below. You can also register online by visiting: Merci d’avoir acheté... - Page 12 Since 1951 Omcan has grown to become a leading distributor of equipment and supplies to the North American food service industry. Our success over these many years can be attributed to our commitment to strengthen and develop new and existing relationships with our valued customers and manufacturers.
