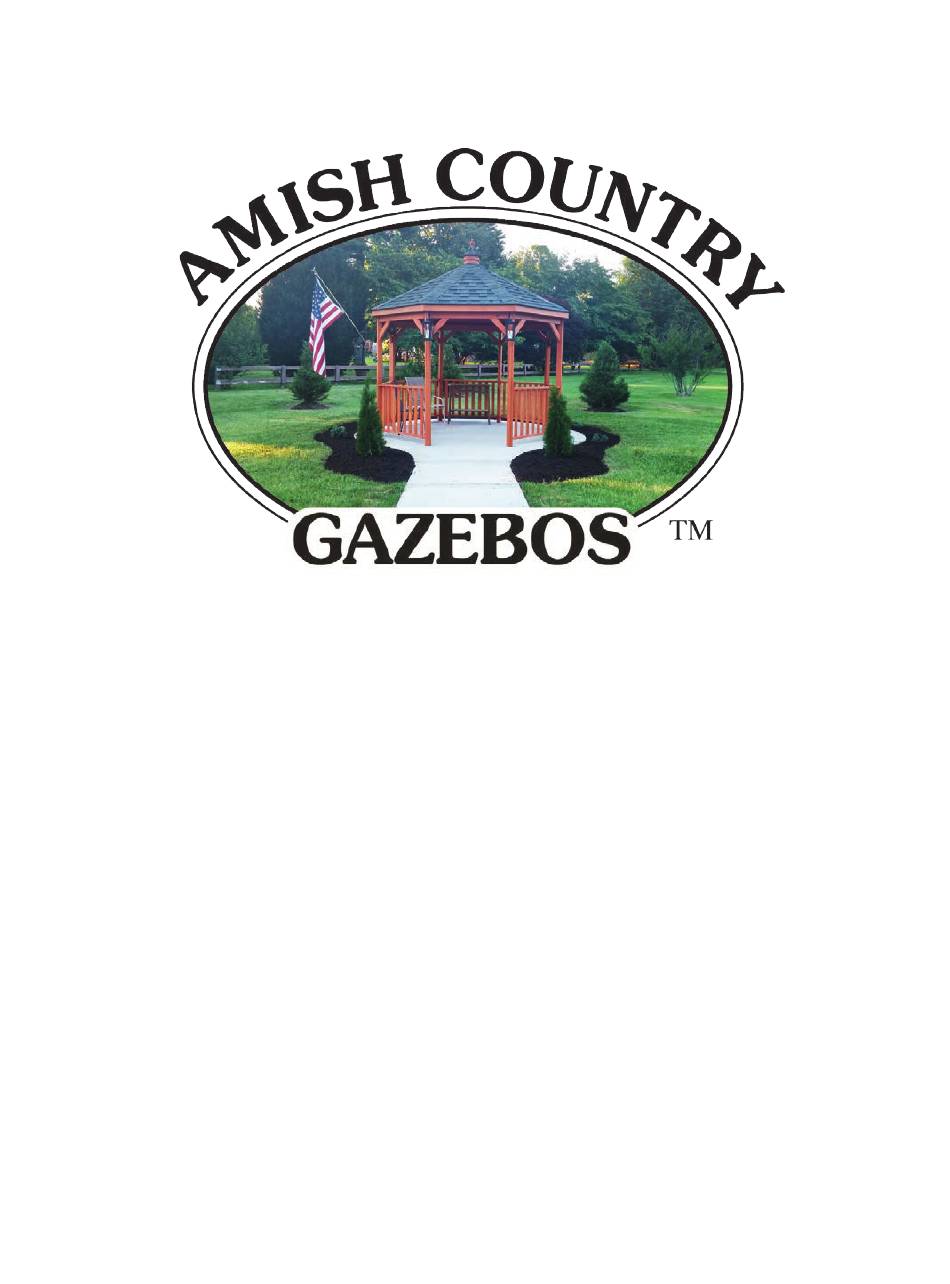

www.AmishGazebos.com
1-800-700-1777
Wood
Gazebo-in-a-Box
Assembly Instructions
©2017

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Wood Gazebo-in-a-Box and is the answer not in the manual?

Questions and answers

Related Manuals for Amish Country Gazebos Wood Gazebo-in-a-Box

Summary of Contents for Amish Country Gazebos Wood Gazebo-in-a-Box

  • Page 1 www.AmishGazebos.com 1-800-700-1777 Wood Gazebo-in-a-Box Assembly Instructions ©2017...
  • Page 3 Amish Country Gazebos 340 Hostetter Rd Manheim, PA 17545 Customer Service Department Hours: Monday – Friday 8:00 am – 4:00 pm and some Saturdays 10:00 am – 3:00 pm (Eastern Standard Time) 1-800-700-1777 Ext. 4 www.AmishGazebos.com...

  • Page 5: Table Of Contents

    Amish Crafted Gazebos WOOD Gazebo Assembly Manual Please make sure the area where your gazebo is being installed is flat and level. If it is not level, the roof rafters and the fascia boards may not fit as nicely as they will when your site is level. This manual, detailing 16 straightforward steps for installing your gazebo, should be kept by your side during the assembly process of your gazebo kit.
  • Page 6 Step 2. Site Preparation It is most important to have a solid, flat and level foundation for your gazebo. Indicate the location of your gazebo foundation by doing the following: FLOOR DIMENSIONS TABLE 1. Cut 8 boards at a 22.5˚ angle. Each should be the length of dimension ‘C’...
  • Page 7 STEP 3. Sort all of your gazebo parts as listed below: (Match the quantity of parts to the corresponding size of your gazebo) 8’ Gazebo Kit 10’ Gazebo Kit 12’ Gazebo Kit l 2” screws 1 bag 1 bag 1 bag l 2½”...

  • Page 8: Step 4. Install Your Deck (Optional)

    Step 4. Install your deck (optional) If you ordered a floor with your gazebo, you will have received 8 triangular shaped floor panels. 1. Place each of the eight triangular shaped floor panels, next to each other, on your foundation. Note: Each floor panel has two boards that are temporarily fastened with small nails.
  • Page 9 6. Repeat step five until all floor panels are complete. 7. After the entire floor is fastened together, put down the sixteen floorboards that were removed earlier and the octagonal shaped floor center piece then fasten them in place using 2½” screws.

  • Page 10: Step 5. Assemble The 7 Individual Wall Panels And 1 Door Panel

    Step 5. Assemble the 7 individual wall panels and 1 door panel Use 2½” screws to assemble each individual wall panel. Begin by inserting each of the handrail balusters into the handrail top and bottom plates. 2. Insert each of the balusters into 1.

  • Page 11: Step 6. Attach The 7 Wall Panels And 1 Door Panel To Each Other

    Step 6. Attach the 7 wall panels and 1 door panel to each other 1. Begin by clamping two wall panels together, also be sure to evenly line up the posts at the top and bottom. 2. Secure the posts using 2½" screws in pre-drilled holes. 3.

  • Page 12: Step 7. Install The 8 Roof Rafters

    Step 7. Install the 8 roof rafters Gather the ceiling center block and 1 rafter. 1. Flush the top of the rafter with 2. Repeat this process with a 3. Now lift these 2 rafters and ceiling the top of the ceiling center block second rafter that is placed block into place.

  • Page 13: Step 8. Install The 8 Fascia Boards

    Step 8. Install the 8 fascia boards Gather the 8 fascia boards. Each board has two pre-drilled holes on both ends and a tapered cut along the top edge. 1. Manually place two 2” screws in each of the four pre-drilled holes of one fascia board.

  • Page 14: Step 9. Install The Plywood Roof Panels

    Step 9. Install the plywood roof panels Now your plywood roof panels can be attached to the roof rafters using the 2” screws. Be sure to place the best side of the plywood down since this will be the ceiling of your gazebo. 1.

  • Page 15: Step 10. "Square" The Gazebo And "Toe-Nail" The Posts To Your Deck

    Step 10. “ Square” the gazebo and “toe-nail” the posts to your deck You need to make certain that your gazebo is ‘square’ or truly octagonal in shape. 1. To confirm this, measure diagonally from inside of one post to the inside of the opposite post. This needs to be done at four points to include all eight posts.

  • Page 16: Step 11. Installing The Optional Electrical Package

    Step 11. Installing the optional electrical package Note: If you ordered the optional screen package, install the screens and retainer strips before you install the electrical package. Note: If you ordered the optional benches, install them before the electrical package. The electrical package trim strip has approximately 2’...
  • Page 17 (electrical package instructions continued) 6. Attach the electrical junction box to the outside of the post, (where the short wire comes out) with (2) 1” pan-head screws. After you have finished all your other electrical connections, you can connect your source of electricity, inside this box.
  • Page 18 Step 12. Architectural shingle installation Nail the shingles to the plywood roof panels using the roofing nails that we have provided, or if you use your own power nailer just make sure the nails do not protrude through the underside of the plywood. Identifying your shingles Starter Shingle Architectural Shingle...
  • Page 19 Shingle application 4. Place the shingles flush at the bottom with the starter shingle. 5. Attach with five 3⁄4” nails at the center line marked on the shingle. Do not fasten below the white line or your nail will be exposed.

  • Page 20: Step 13. Apply The Ridge Cap Shingles

    Step 13. Apply the ridge cap shingles ‘Make’ your ridge cap shingles by cutting a 3-tab shingle into three individual pieces. 1. Turn the shingle over to expose the reverse side. Then use a utility knife to cut each ridge cap piece. Begin your cut at the manufactured cutout and cut at a slight angle toward the top of the shingle.
  • Page 21 4. With a sharp knife or shingle shears, cut the bottom of this first shingle along a line parallel to the roof edge. 5. Now place the second shingle directly on top of the first shingle that you installed and secure this shingle with one roofing nail on each side.

  • Page 22: Step 14. Shingle And Install The Cupola

    Step 14. Shingle and install the cupola Use ridge cap shingles to roof your cupola. 1. Cut triangular pieces out of ridge cap shingles to create your 8 large and 8 small shingles. 2. Nail the 8 large shingle pieces to the cupola first. Then apply the 8 small pieces as shown below. Keep the nails close to the edge of the shingle so they get covered by the ridge cap piece.
  • Page 23 3. To create ridge cap shingles for your cupola, cut three 1½”wide strips out of one ridge cap shingle. 4. Use roofing nails to apply one of these strips over each ridge seam of your cupola roof. Note: If you have a staple gun, you can use it for the cupola shingles. We suggest a 1⁄4" wide and 3⁄4"...

  • Page 24: Step 15. Installing The Screen Package (Optional)

    Step 15. Installing the screen package (optional) Note: See bottom of page 1. Install the 7 large screen panels. You will need to tilt the screen slightly and slide the top in first, between the rafters and against the post. Then slide the bottom in against the post and center it in the opening.
  • Page 25 Step 16. Installing the benches (optional) 1. Center the back of each bench support against your gazebo post and rest the bottom of the support firmly into your gazebo floor. Then, with two 2½” screws, attach the vertical back portion of the support to the gazebo post (1 screw on upper left and 1 screw on lower right).
  • Page 28 www.AmishGazebos.com 1-800-700-1777...
